Mitsubishi Alternators

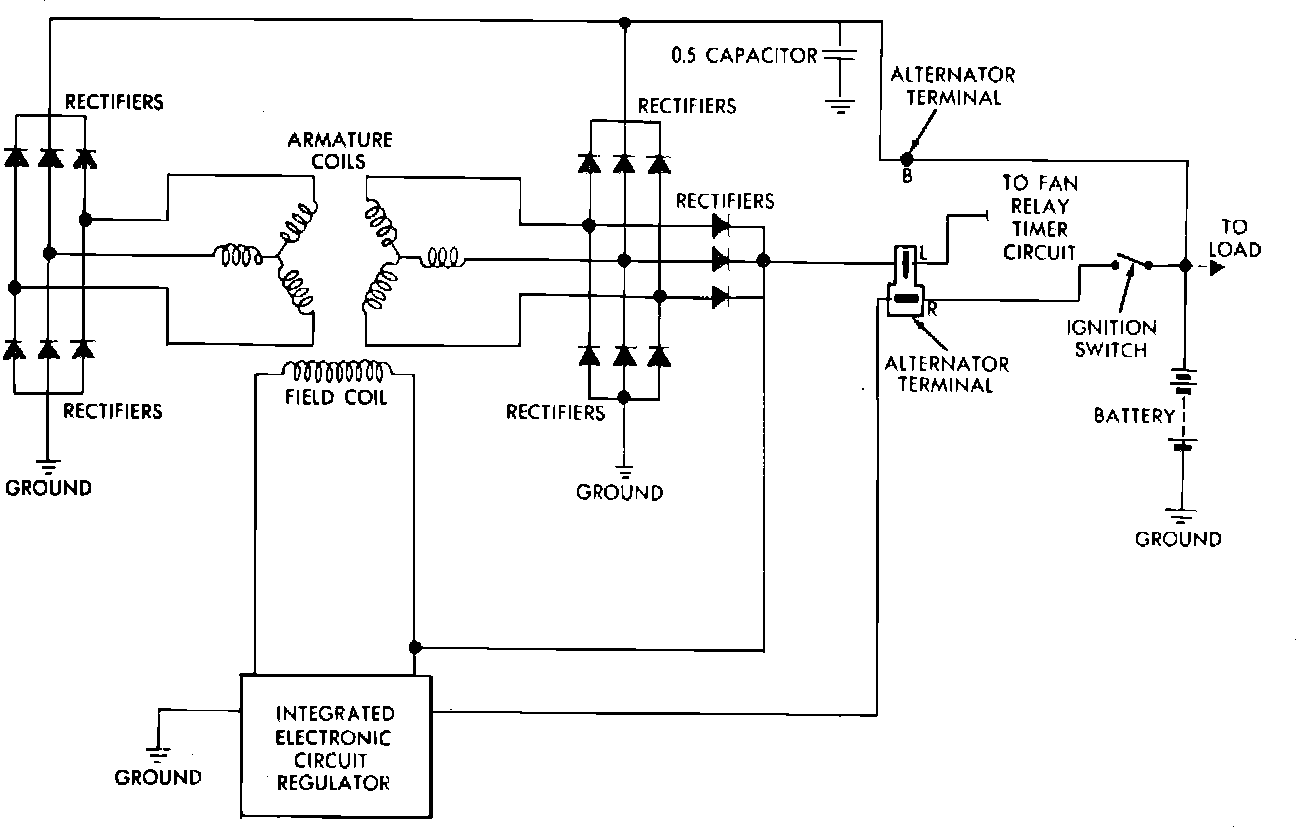

Fig. 1 Wiring diagram of Mitsubishi charging system. 1982---83:

On these units the regulator is incorporated into the alternator rear housing. The electronic voltage regulator has the ability to vary regulated system voltage upward or downward as temperature changes. No voltage regulated adjustments are required on these units.
