Chrysler Alternators

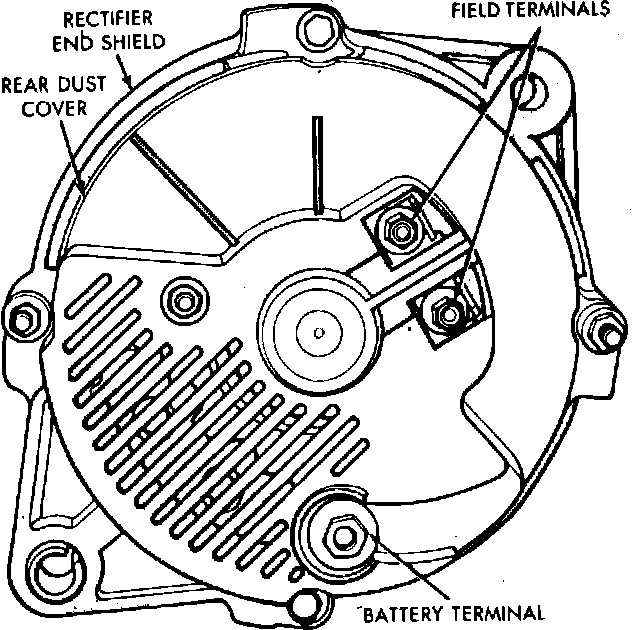

Fig. 1 Alternator assembly exc. 100 & 114 amp units & units w/regulator in engine electronics:

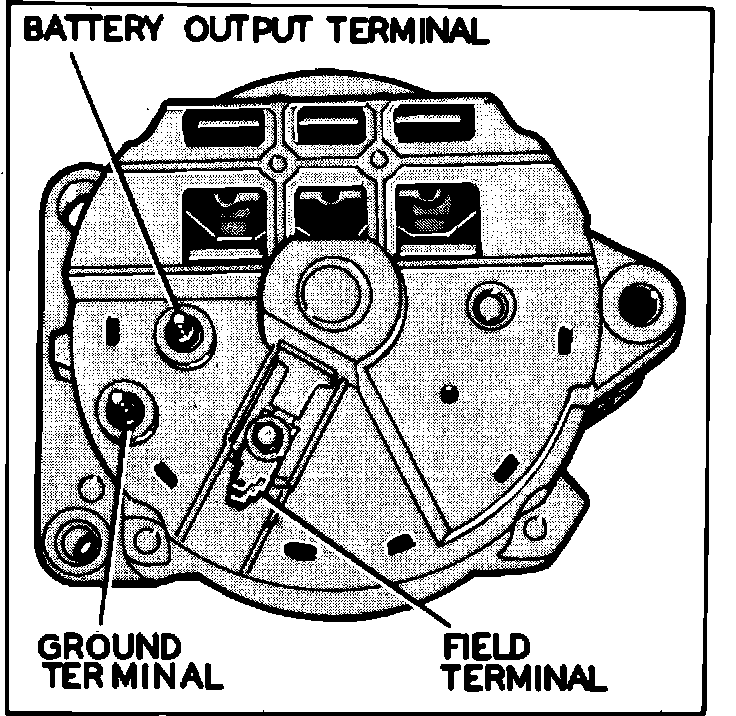

Fig. 2 Alternator assembly. Units w/regulator in engine electronics:

Fig. 3 100 & 114 amp alternator assembly:

All Chrysler alternators except the 100 and 114 amp units are equipped with six silicon rectifiers. The 100 and 114 amp alternators are equipped with twelve silicon rectifiers.
