Wiper Control Module: Locations

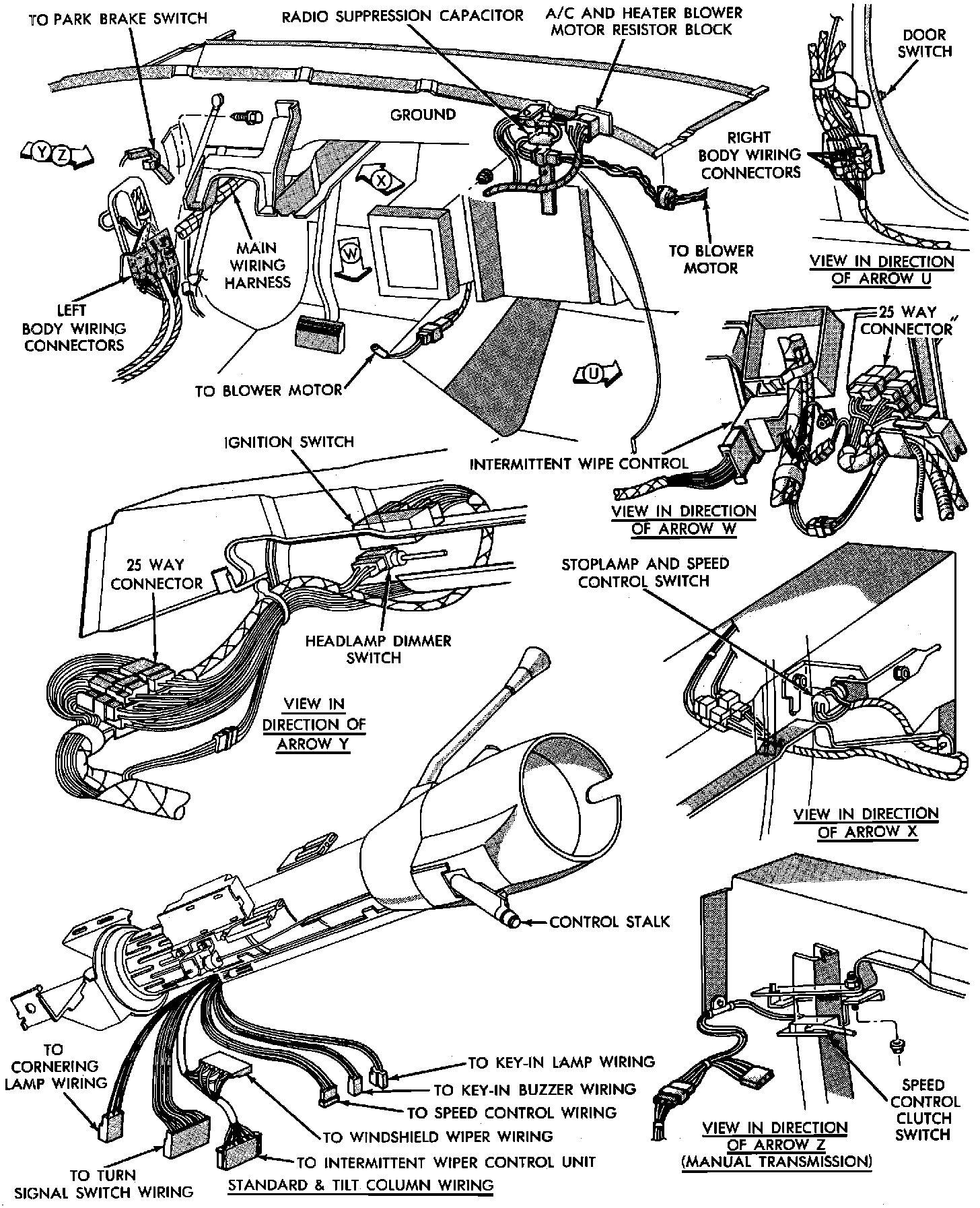

Cowl & Steering Column Electrical Components.:




Under LH Side Of I/P

Applicable to: 1982-83

Cowl & Steering Column Electrical Components.:




Under LH Side Of I/P

Applicable to: 1984-85
