Heated Glass Element Relay: Locations

Rear Window Defogger Cut-Out Relay

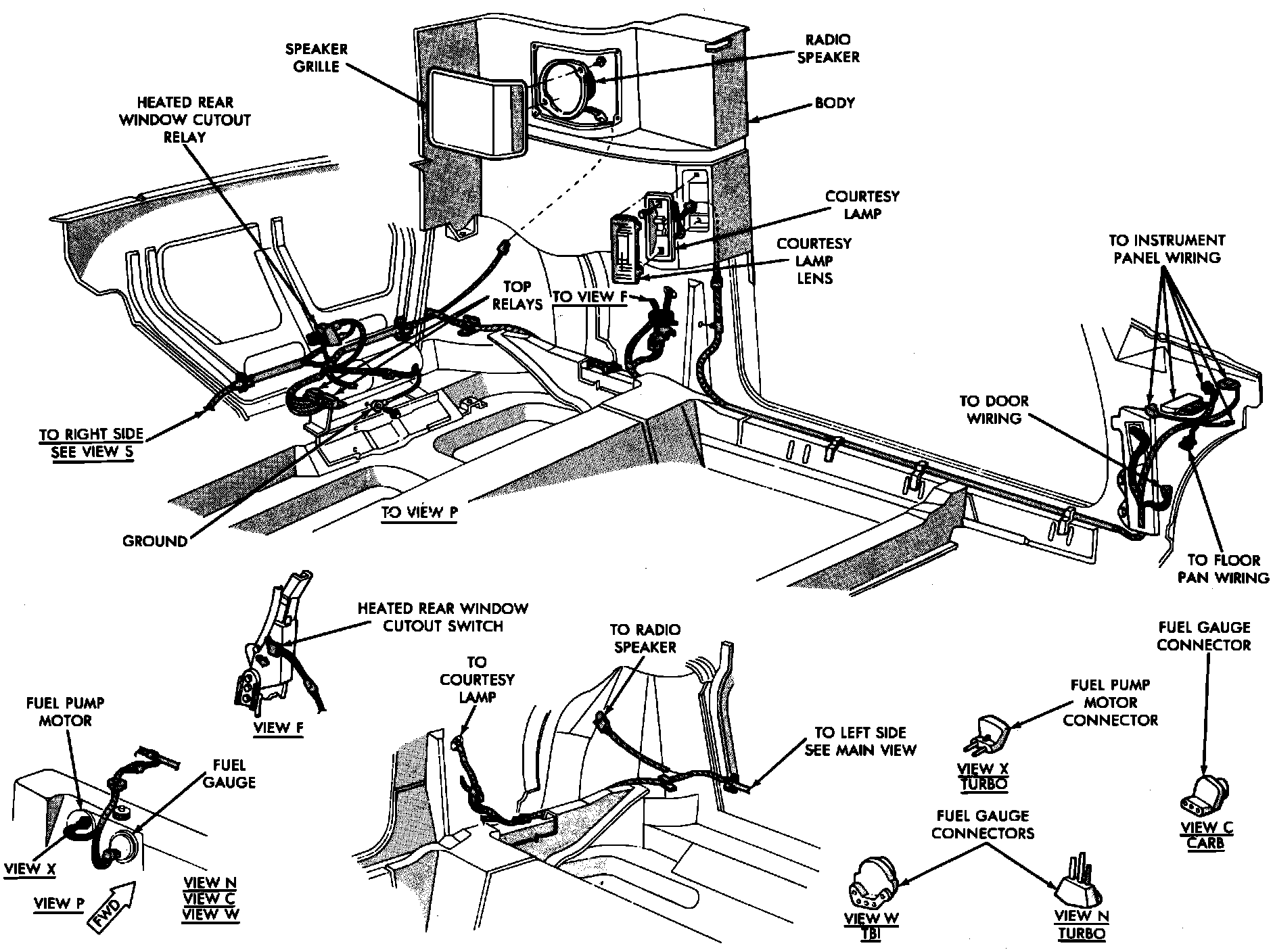

LH Side Of Body Electrical Components.:

RH Side Of Passenger Compartment, Near Door Pillar

Applicable to: 1985 Convertible
