Ignition Switch: Service and Repair

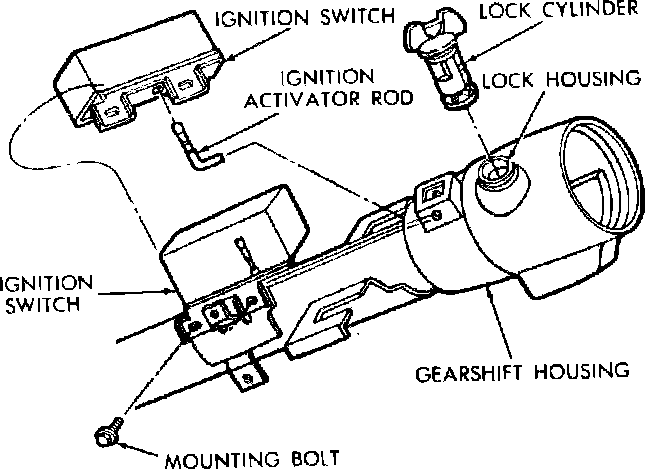

Fig. 4 Ignition switch replacement. Exc. Horizon, Omni, Charger & Turismo:

EXC. HORIZON, OMNI, CHARGER & TURISMO
1. Disconnect battery ground cable.
2. Remove under panel sound deadener.
3. Disconnect speed control switch.
4. Remove two switch attaching screws, then rotate switch 90° and pull-up to disengage switch from rod.
5. Reverse procedure to install. When installing new switch push up gently on switch relieve slack in rod system.
