Hazard Warning Flasher: Locations

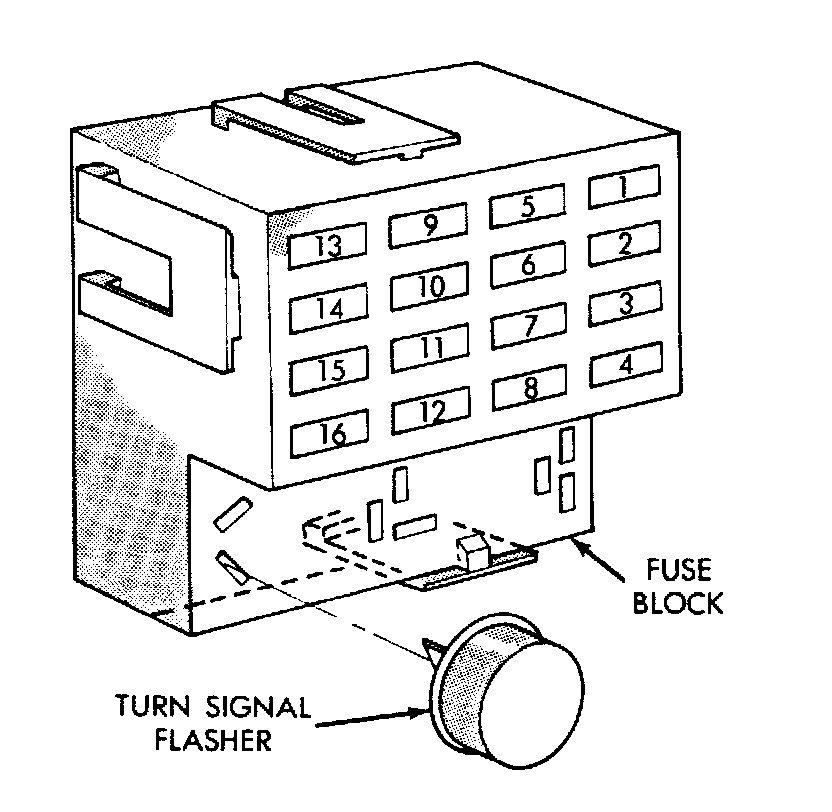

The turn signal flasher is on the fuse block and the hazard warning flasher is taped to the main harness. On all models, the fuse block is located under the instrument panel to the left of the steering column.
