Timing Chain Tensioner: Adjustments

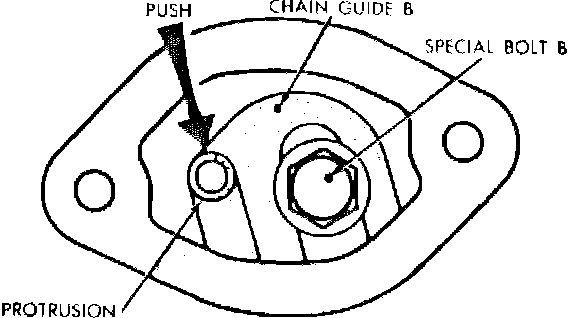

Fig. 13 Silent Shaft chain adjustment with engine installed:

1. Remove cover over access hole in chain case cover, Fig. 13.
2. Loosen bolt ``B,'' Fig. 13.
3. Apply pressure by hand on boss indicated in Fig. 13, then torque bolt ``B'' to 160 inch lbs.
