2.2L

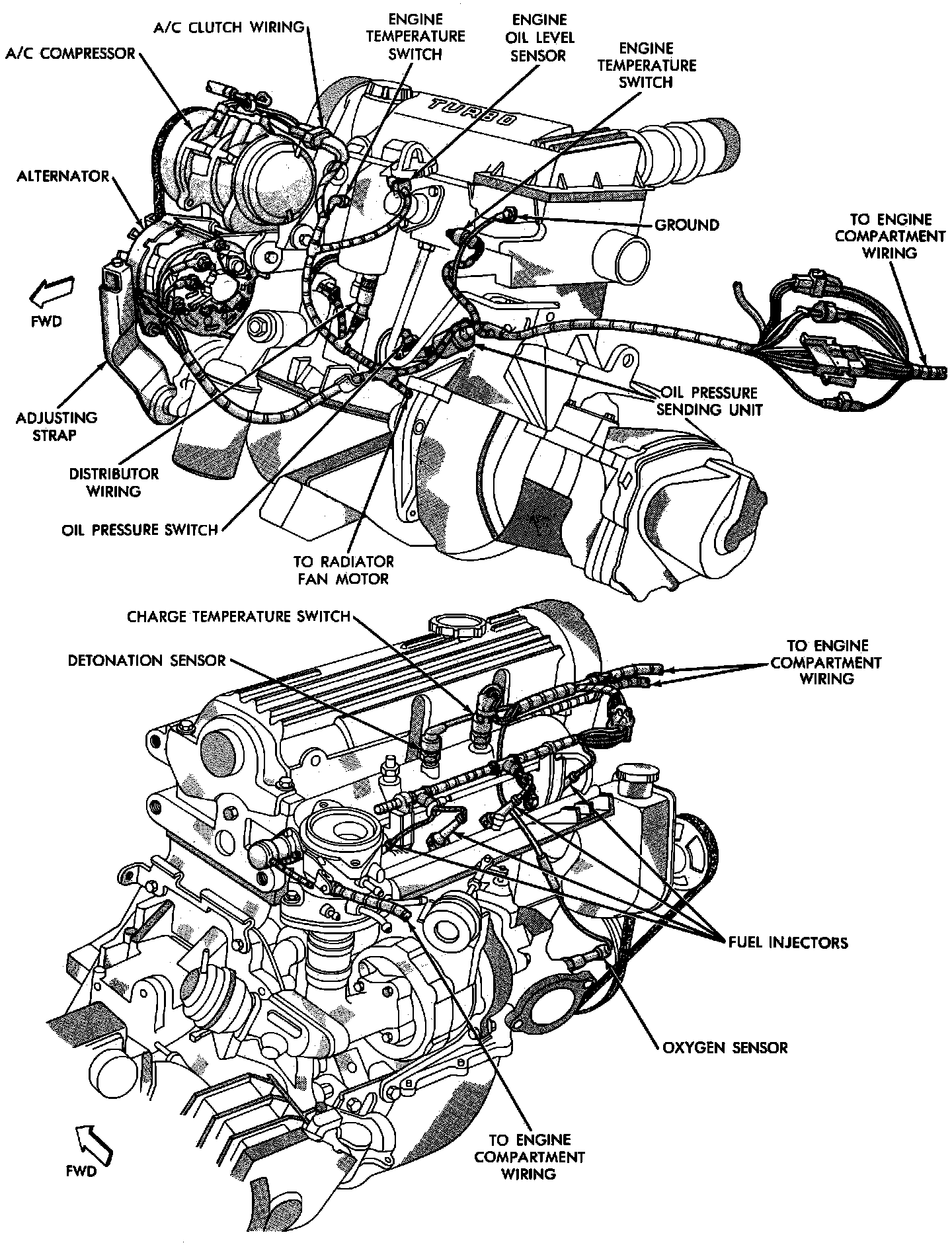

Engine Electrical Components.:




Front Lower LH Side Of Engine

Applicable to: 1985 2.2L Turbo

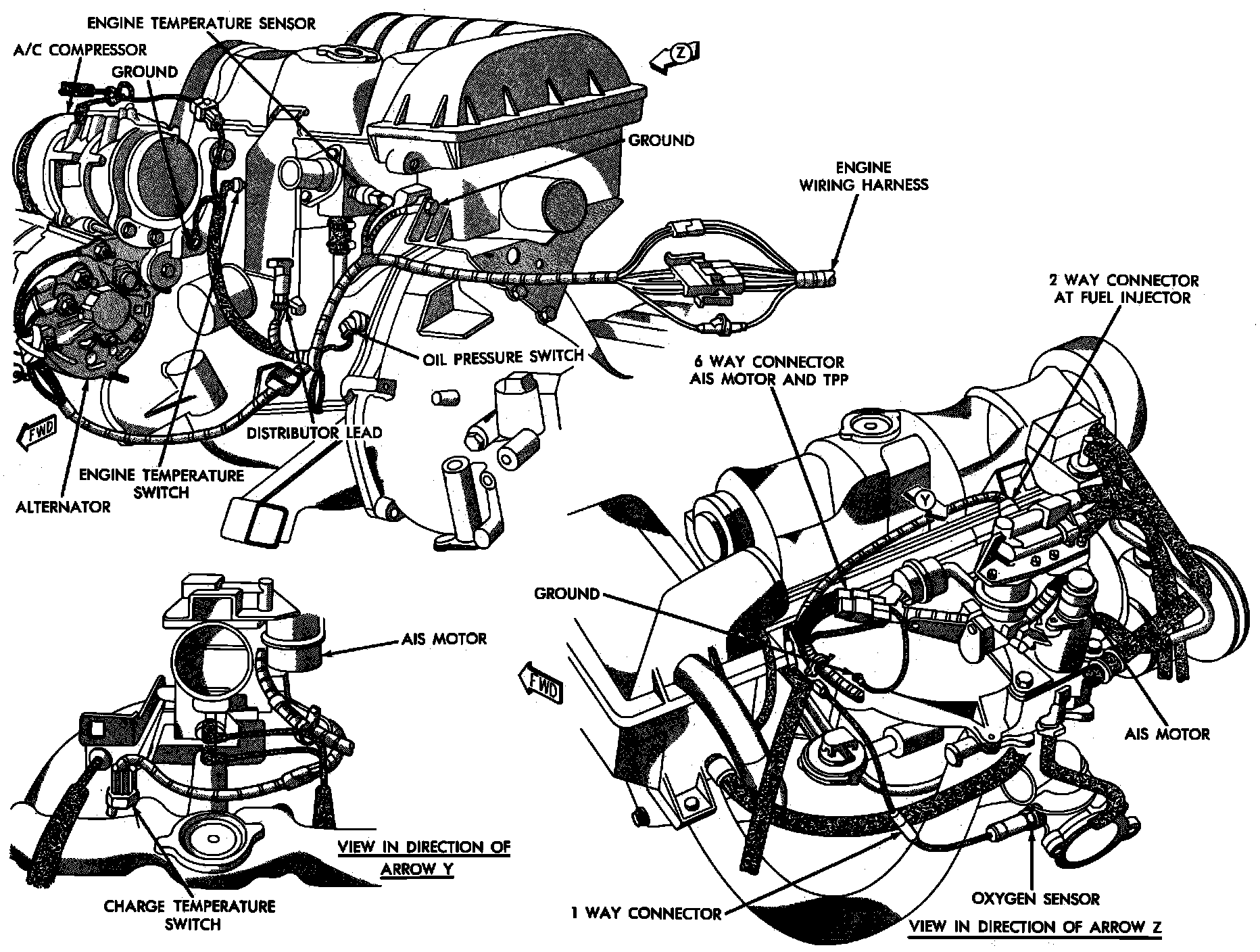

Engine Electrical Components.:




Front Lower LH Side Of Engine

Applicable to: 1985 2.2L EFI

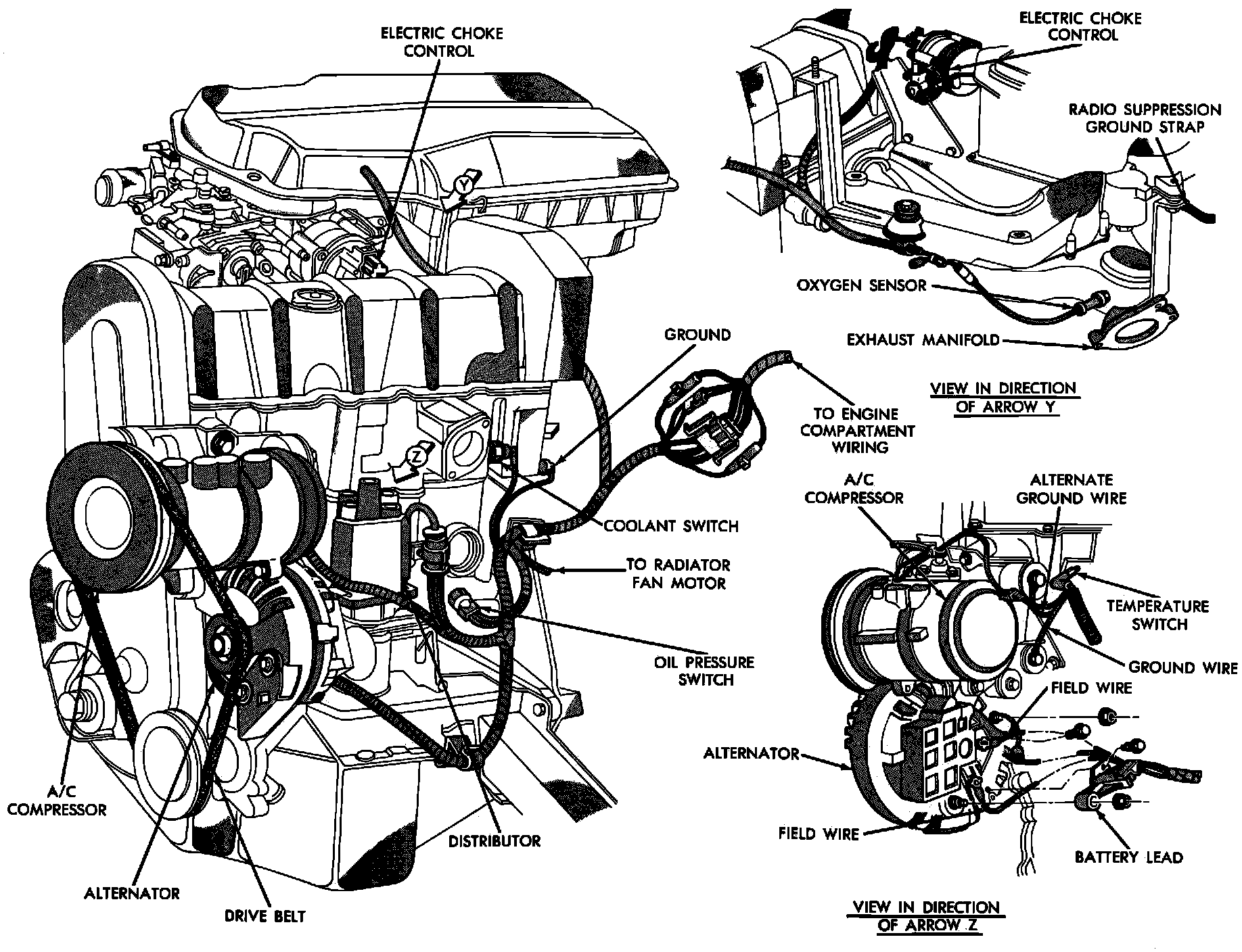

Engine Electrical Components.:




Front Lower LH Side Of Engine

Applicable to: 1982-84 2.2L
