Valve Spring: Service and Repair

Valve Spring Height Measurement

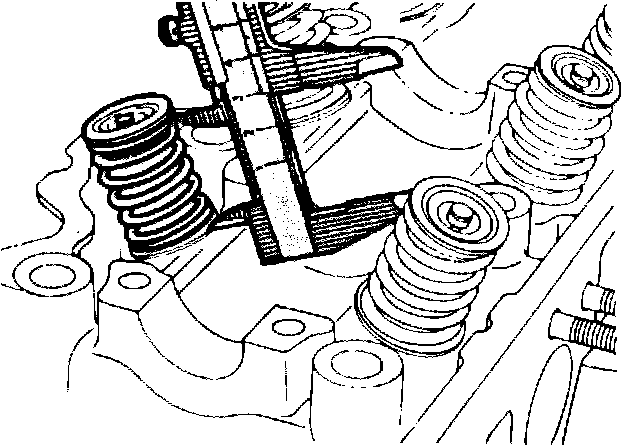

Fig. 25 Measuring installed valve spring height:

1. Measure installed height of valve spring between spring seat and spring retainer, Fig. 25. Installed height should be 1.590 in. If height is greater than 1.629 in., replace spring.
