Front Door

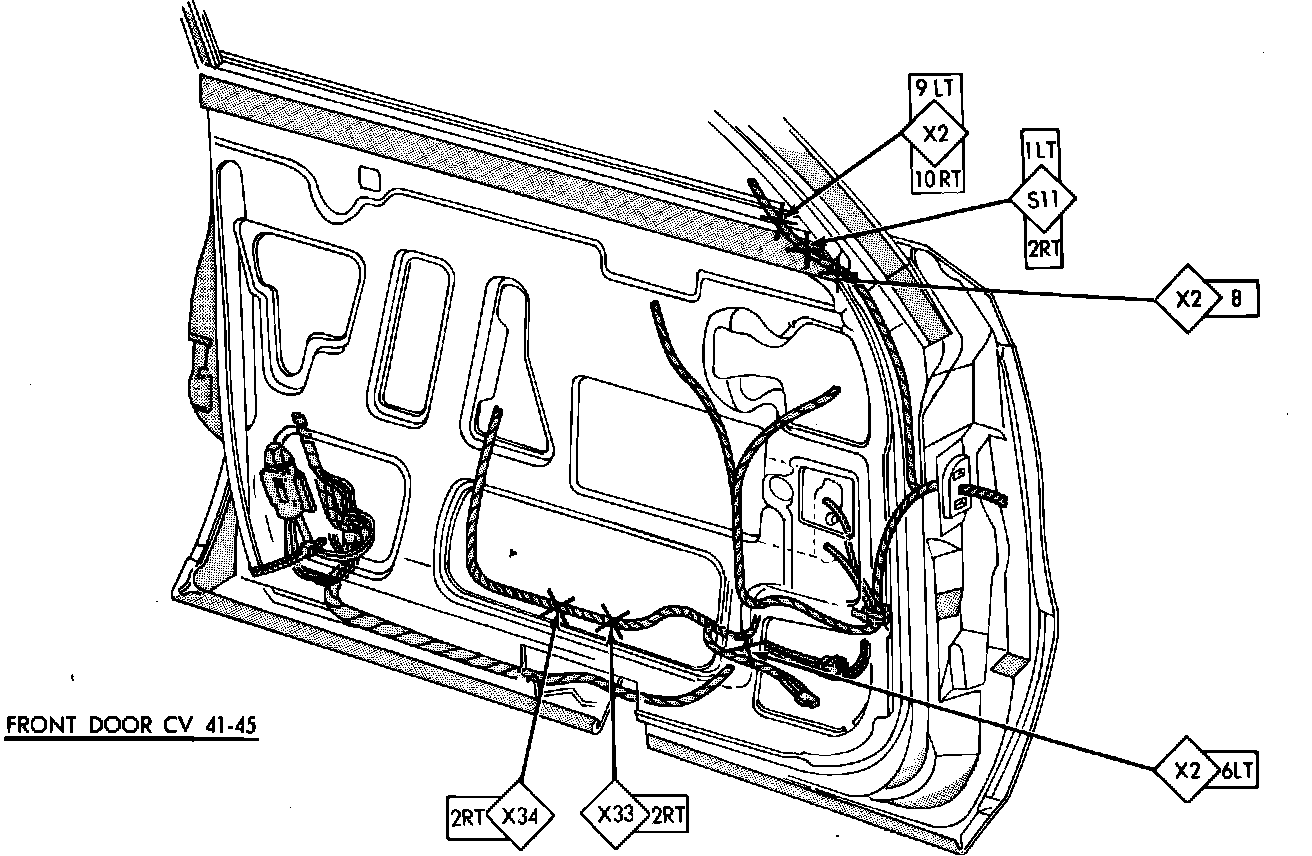

Fig. 143 Front Door Splice Locations. 1983 Convertible & Hardtop:

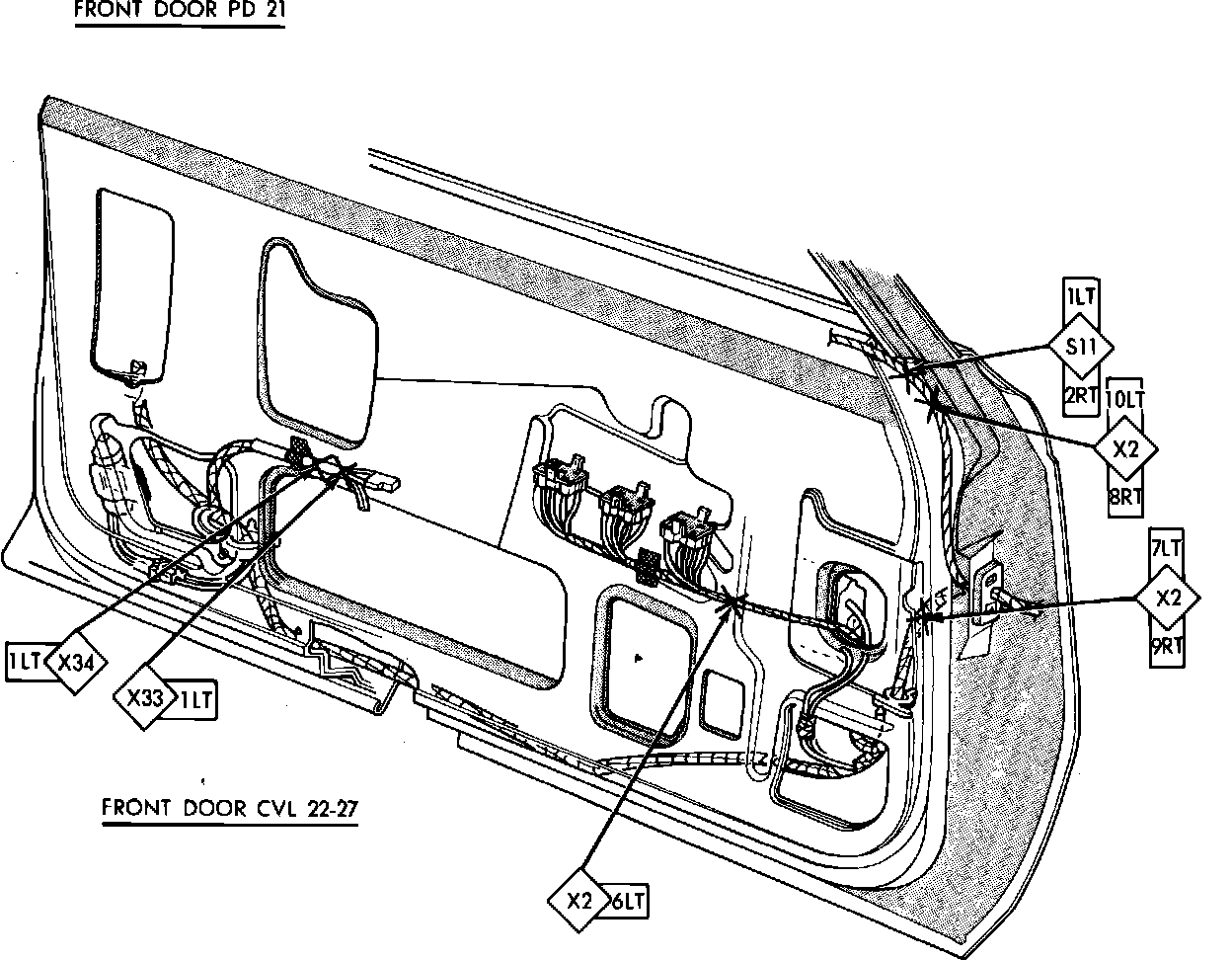

Fig. 144 Front Door Splice Locations. 1983 Sedan & Wagon:
