Home >> Chrysler >> 1983 >> Lebaron Convertible L4-156 2.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> AM Radio >> Part 1 of 2

Part 1 of 2

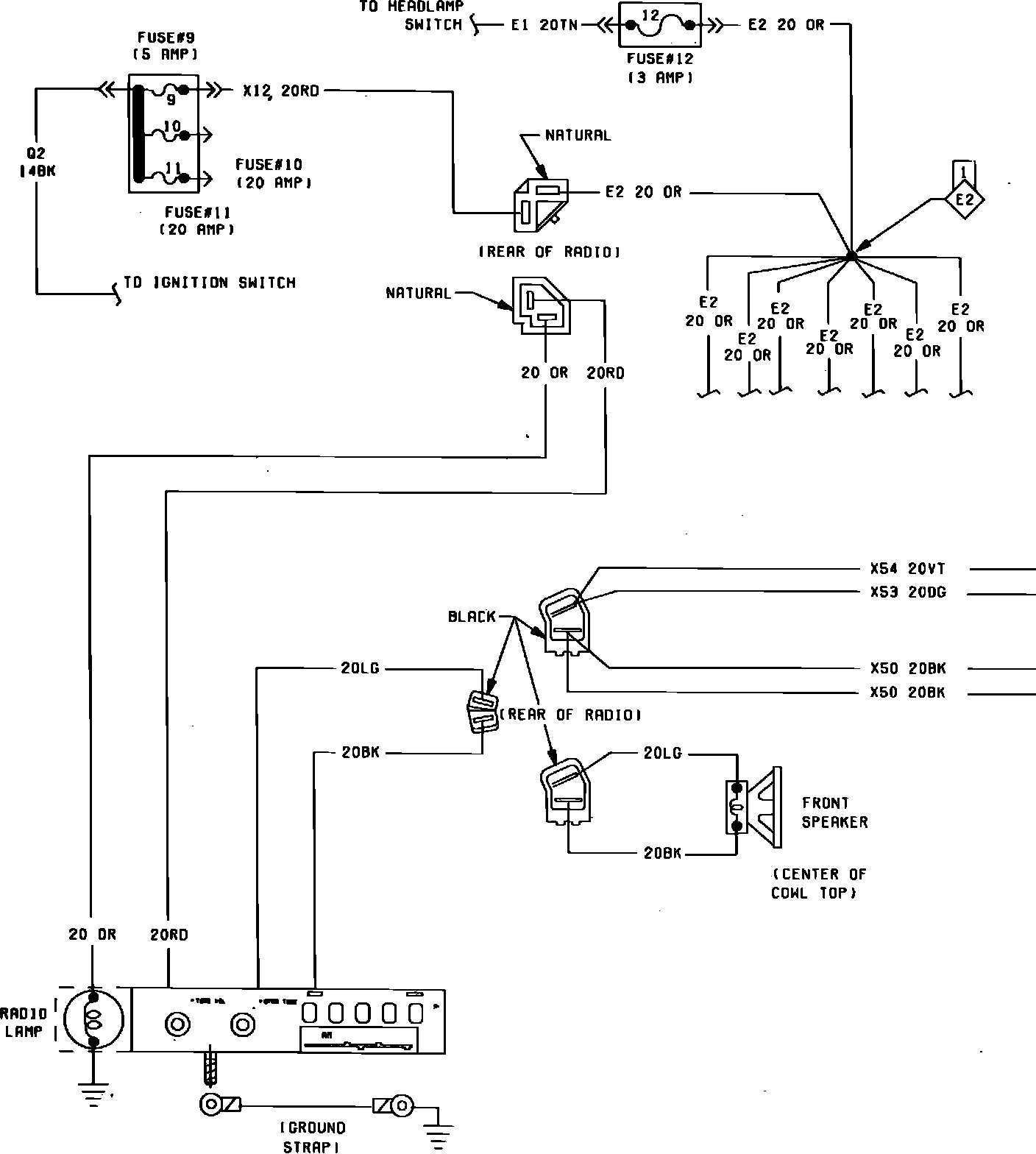

Fig. 111 Radio Wiring Circuit (Part 1 of 2). 1983 Mono:
