Hazard Warning Switch

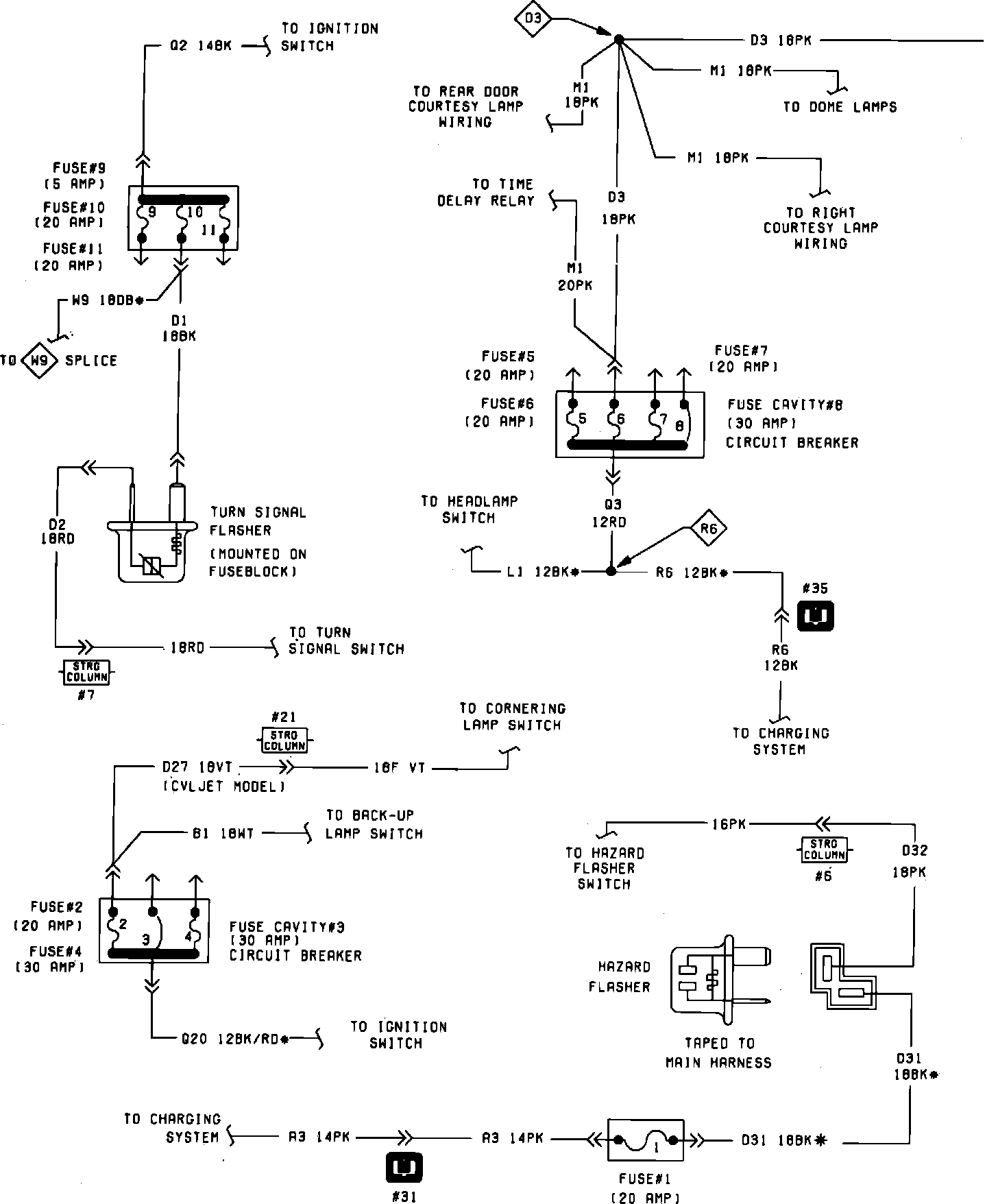

Fig. 66 Hazard Warning, Turn Signal & Stop Lamp Switch Wiring Circuit (Part 1 of 2). 1983:



Fig. 66 Hazard Warning, Turn Signal & Stop Lamp Switch Wiring Circuit (Part 2 of 2). 1983:
