Home >> Chrysler >> 1983 >> Lebaron Convertible L4-156 2.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Door Locks >> Power Door Lock System Wiring Circuit >> 4 Door >> Part 1 of 2

Part 1 of 2

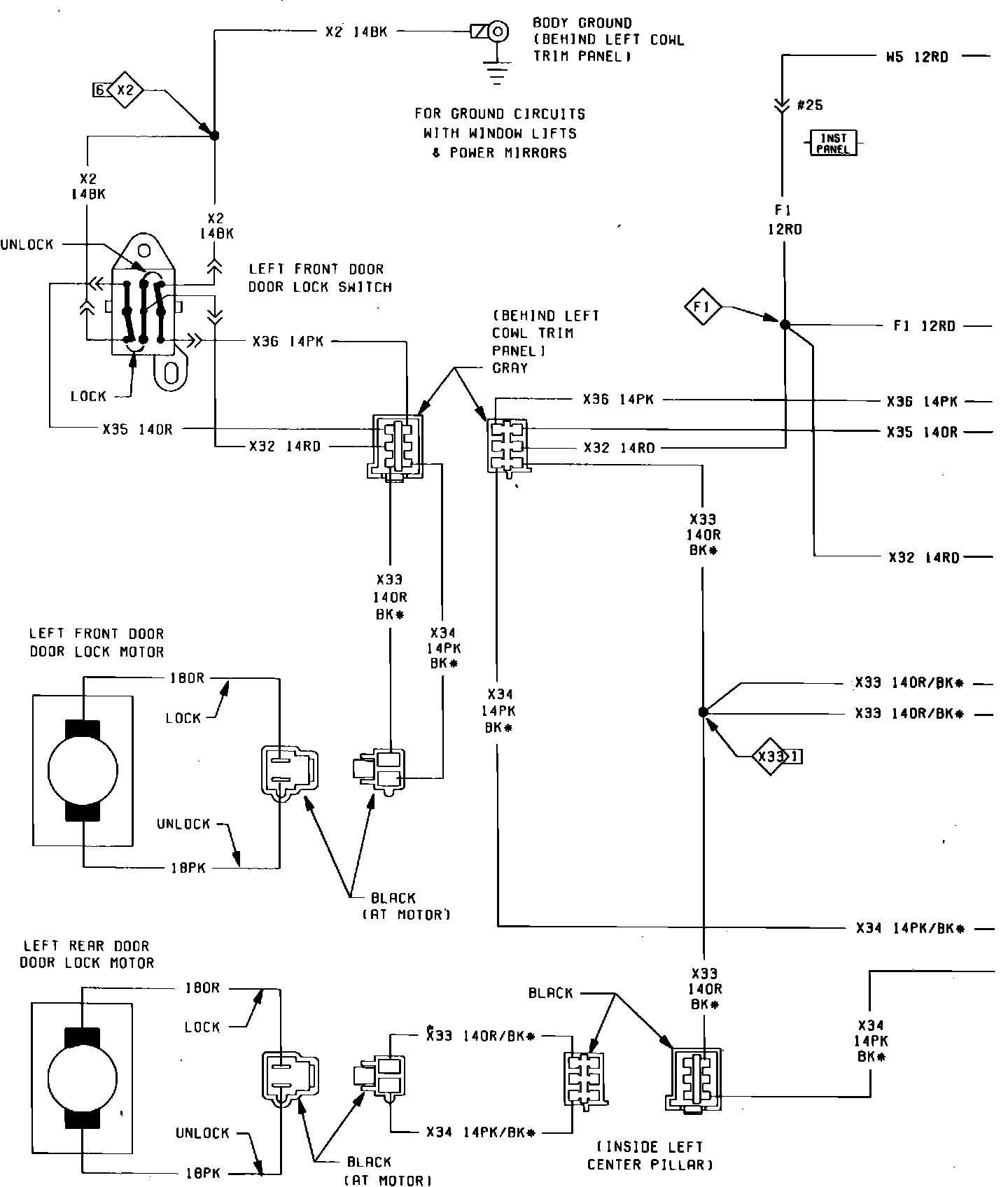

Fig. 89 Power Door Lock Wiring Circuit (Part 1 of 2). 1984 4 Door:
