Home >> Chrysler >> 1983 >> Lebaron Convertible L4-156 2.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Amplifier, Sound System >> Part 1 of 2

Part 1 of 2

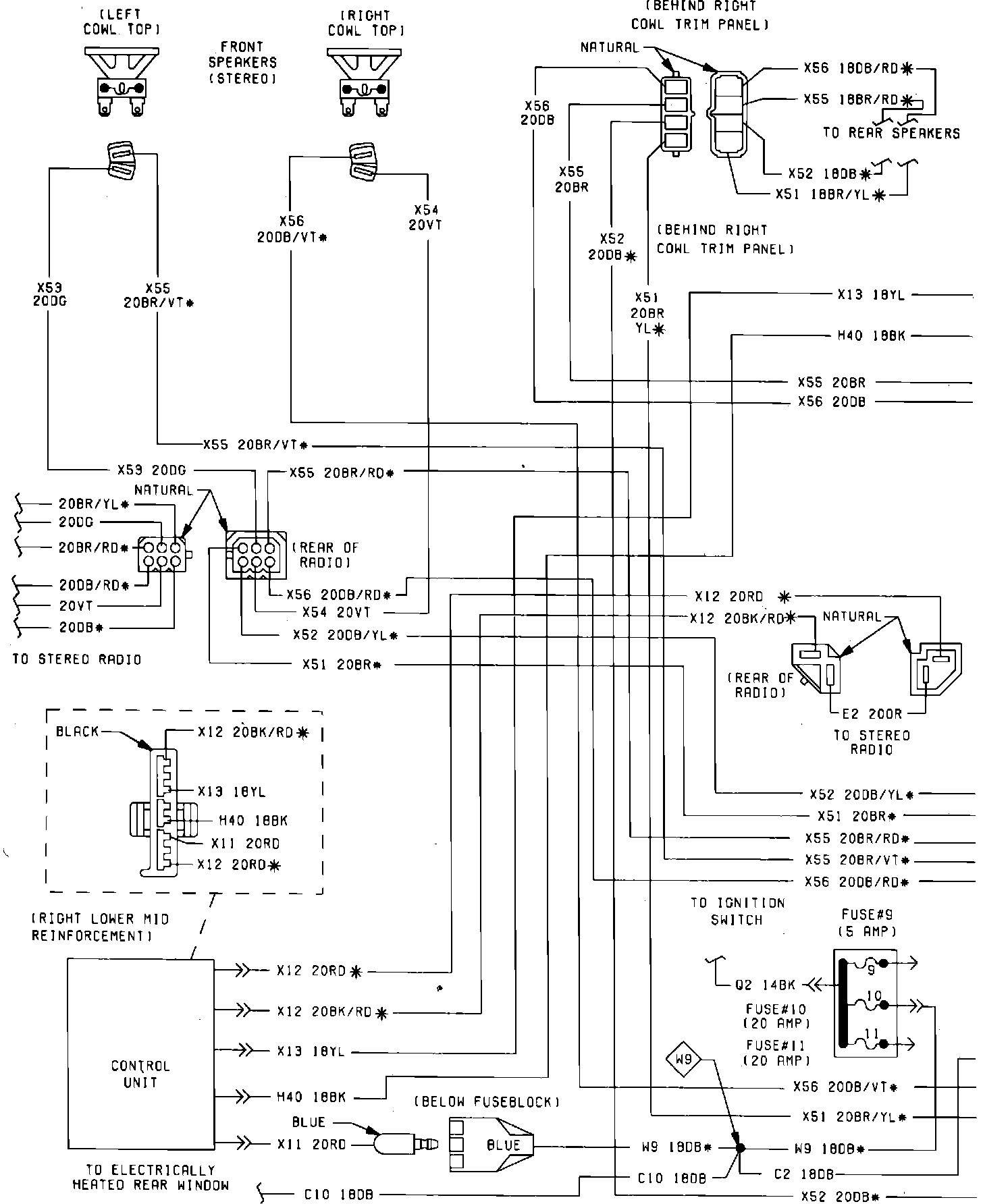

Fig. 105 Radio Amplifier Wiring Circuit (Part 1 of 2). 1983:
