ATE Dual Pin Floating Caliper Disc Brake (Rear)

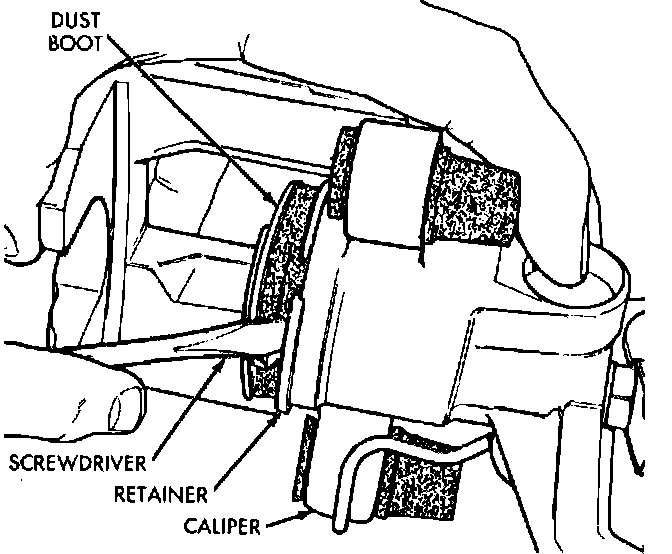

Fig. 8 Removing dust boot retainer:

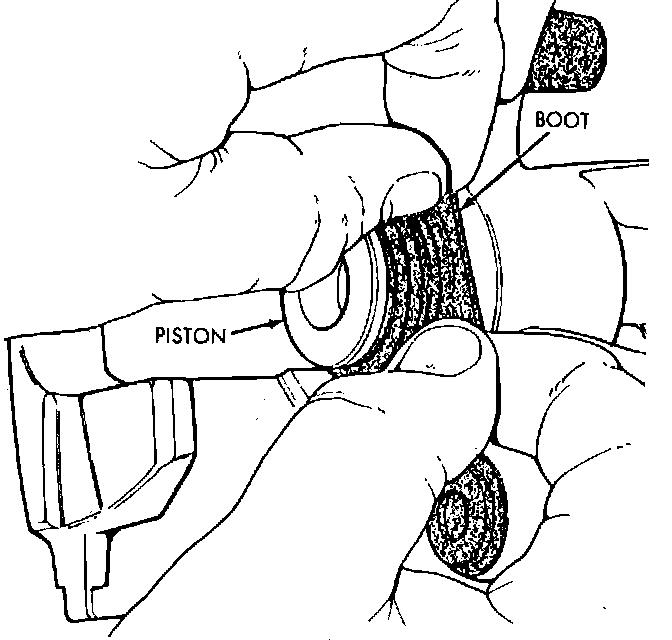

Fig. 9 Dust boot installation:

DUST BOOT, REPLACE
1. Remove dust boot retainer with a suitable screwdriver.
2. Remove dust boot from caliper and piston grooves.
3. Clean piston and caliper grooves, then coat new boot with clean brake fluid.
4. Place boot over piston and into the piston and caliper grooves.
5. Install dust boot retainer into caliper groove.

Fig. 10 Guide pin bushing installation:

GUIDE PIN BUSHING, REPLACE
1. Remove bushings from caliper with a suitable tool. Discard bushings and Teflon sleeves.
2. Remove Teflon sleeves from new bushings prior to bushing installation.
3. Compress bushing flange with fingers and push bushing into seated position.
4. Install Teflon sleeves into bushings.
