Home >> Chrysler >> 1983 >> Lebaron Convertible L4-135 2.2L SOHC >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> Vacuum and Vapor Hose Diagrams >> Emission System Vacuum Diagrams

Emission System Vacuum Diagrams

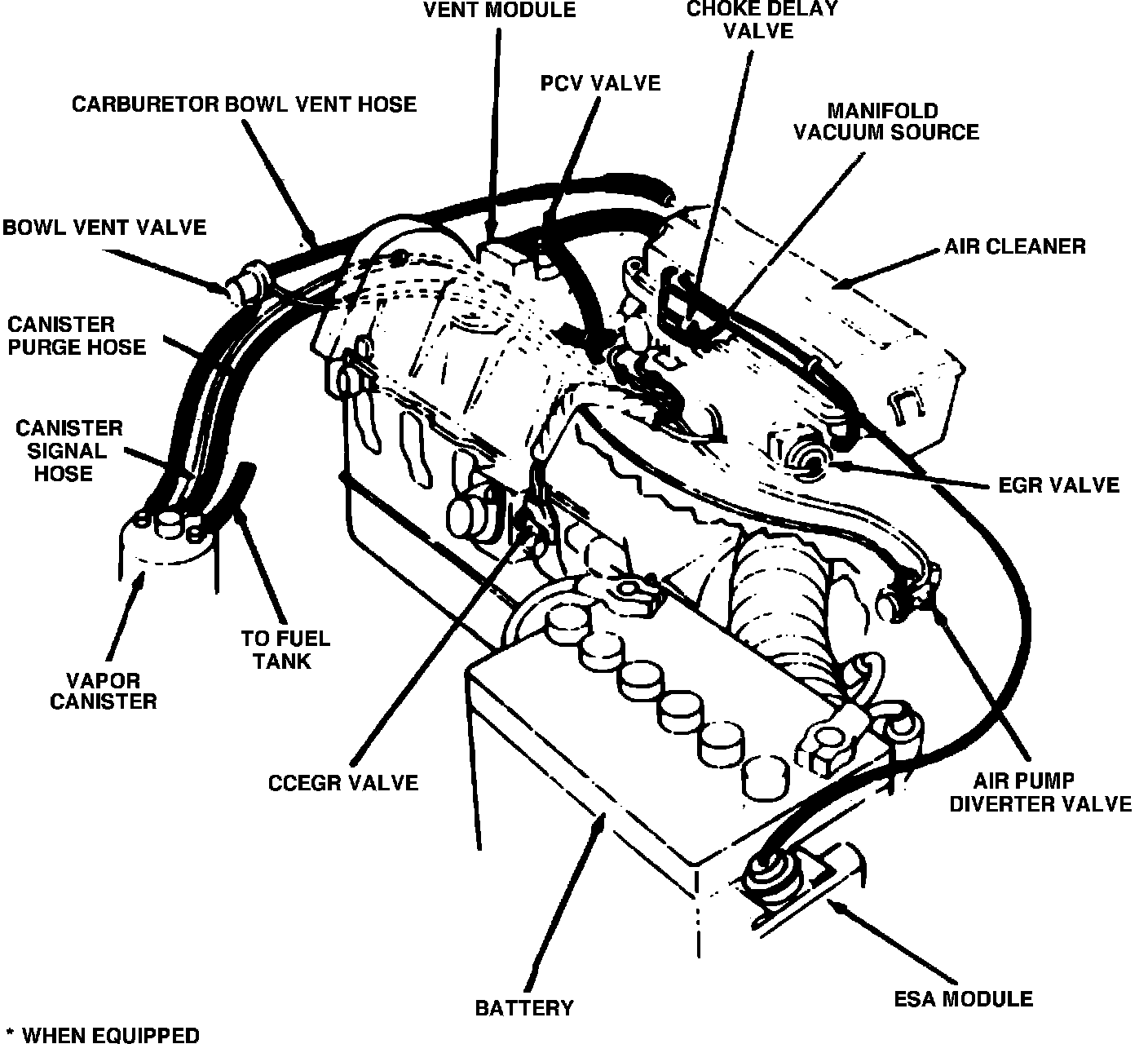

Fig. 1 Vacuum hose routing. 1983 4-135/2.2L:
