Engine Compartment Splices

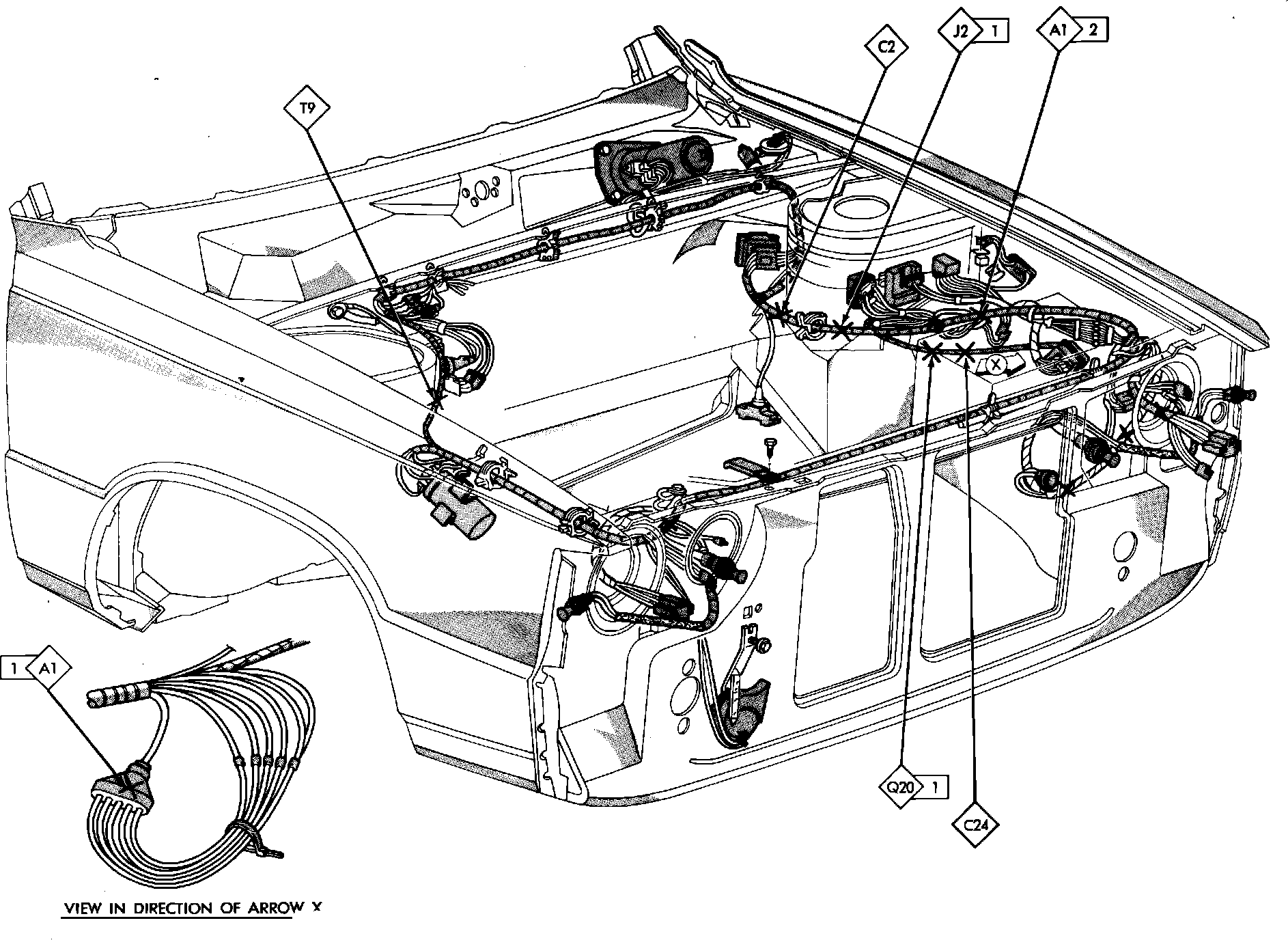

Fig. 134 Engine Compartment Splice Locations. 4-135/2.2L Exc. Fuel Injection:
