Home >> Chevy Truck >> 2013 >> Trax AWD (CANADA) L4-1.4L Turbo >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair >> Rear Bumper Fascia Lower Skid Plate Replacement

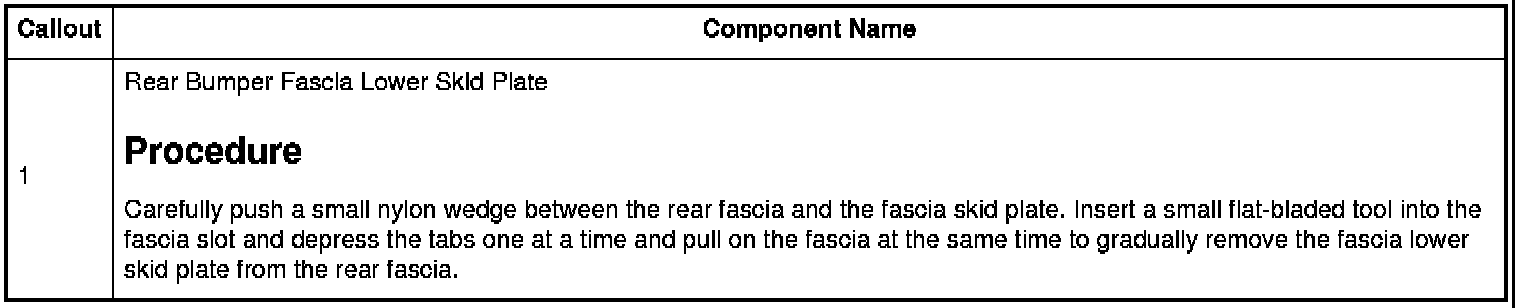

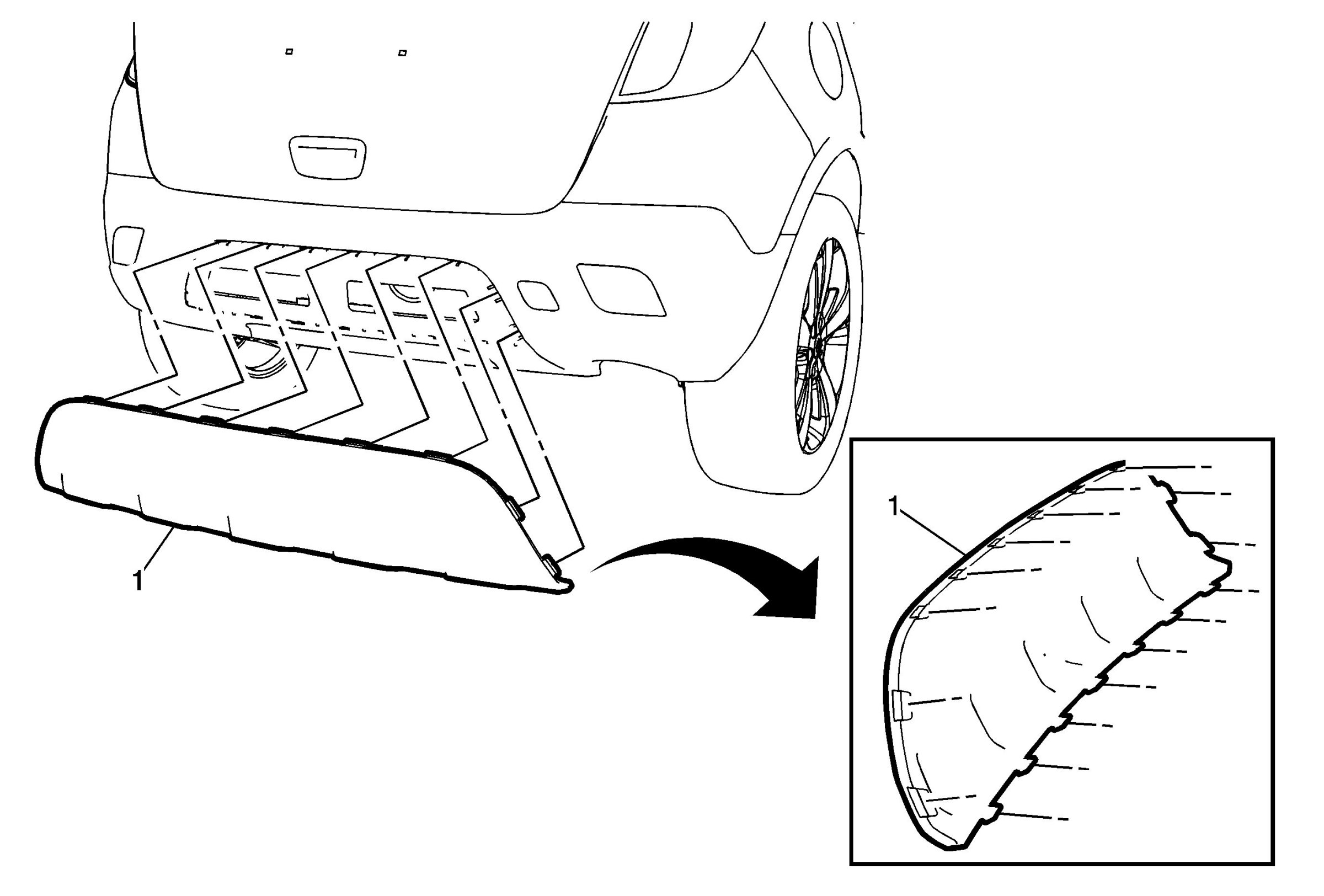

Rear Bumper Fascia Lower Skid Plate Replacement






Rear Bumper Fascia Lower Skid Plate Replacement
