Windshield Replacement

Windshield Replacement

Special Tools

* BO-24402-A - Glass Sealant Remover (Cold Knife)

* BO-39032 - Stationary Glass Removal Tool

* Use a urethane adhesive systems which meet GM Specification GMW 15672

For equivalent regional tools, refer to Special Tools Tools and Equipment.

Removal Procedure

1. Open the hood.

2. Remove the windshield wiper arms. Refer to Windshield Wiper Arm Replacement (Traverse) Windshield Wiper Arm ReplacementWindshield Wiper Arm Replacement (Acadia) Windshield Wiper Arm ReplacementWindshield Wiper Arm Replacement (Enclave) Windshield Wiper Arm Replacement.

3. Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement Service and Repair.

4. Remove the remote control door lock receiver. Refer to Remote Control Door Lock Receiver Replacement Service and Repair.

5. Remove the inside rearview mirror. Refer to Inside Rearview Mirror Replacement Inside Rearview Mirror Replacement.

6. Remove the windshield garnish molding. Refer to Windshield Garnish Molding Replacement - Left Side Windshield Garnish Molding Replacement - Left Side and Windshield Garnish Molding Replacement - Right Side Windshield Garnish Molding Replacement - Right Side.

Warning

If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.

7. Cover to protect the following parts from broken glass:

* Upper dash pad

* Defroster outlets and A/C outlets

* Seats and carpeting

Warning: Refer to Glass and Sheet Metal Handling Warning Glass and Sheet Metal Handling Warning.


Note: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

8. Using the appropriate tool, carefully cut the windshield reveal molding in order to access the auto-adhesive bead.





Note: Keep the cutting edge of the appropriate tool against the window. There are window locating pins, one in each upper corner of the window. Use care Not to remove or cut them off when removing the window. If the window locator pins are cut, it will be necessary to tape the window in place.

9. This will allow the auto-adhesive to be separated from the window.

* Leave a base of auto-adhesive on the pinchweld flange.

* The only suitable lubrication is clean water, no oils, lubes or soaps.

* Use BO-24402-A - Glass Sealant Remover (Cold Knife).

* BO-39032 - Stationary Glass Removal Tool, or equivalent in order to remove the window.




10. Use the appropraite tool to remove the bottom of the window from the auto-adhesive. Keep the cutting edge of the tool against the window. Do this from inside the vehicle.

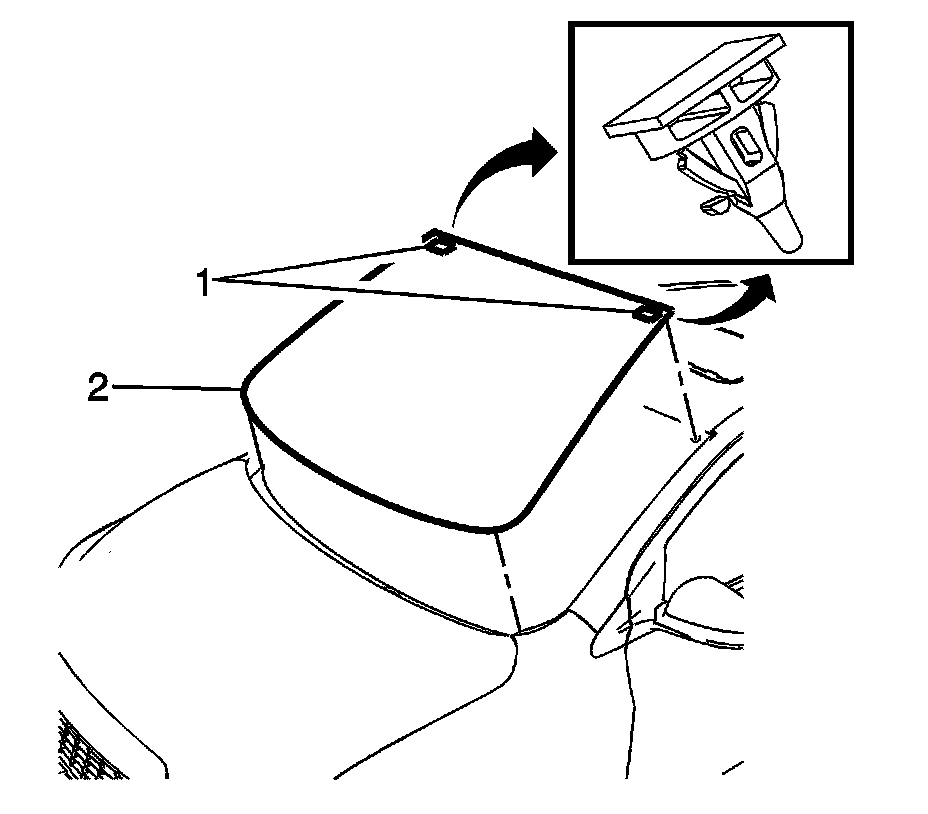

11. With an assistant, remove the window (2) from the vehicle. Check that the retainers (1) are still attached to the window before installing.

Installation Procedure

1. Install the windshield into the opening. Refer to Adhesive Installation of Windshields Adhesive Installation of Windshields.

2. Remove the remote control door lock receiver. Refer to Remote Control Door Lock Receiver Replacement Service and Repair.

3. Install the rearview mirror. Refer to Inside Rearview Mirror Replacement Inside Rearview Mirror Replacement.

4. Install the windshield garnish molding. Windshield Garnish Molding Replacement - Left Side Windshield Garnish Molding Replacement - Left Side and Windshield Garnish Molding Replacement - Right Side Windshield Garnish Molding Replacement - Right Side.

5. Install the air inlet grille. Refer to Air Inlet Grille Panel Replacement Service and Repair.

6. Install the windshield wipers arms. Refer to Windshield Wiper Arm Replacement (Traverse) Windshield Wiper Arm ReplacementWindshield Wiper Arm Replacement (Acadia) Windshield Wiper Arm ReplacementWindshield Wiper Arm Replacement (Enclave) Windshield Wiper Arm Replacement.

7. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

8. Close the hood.
