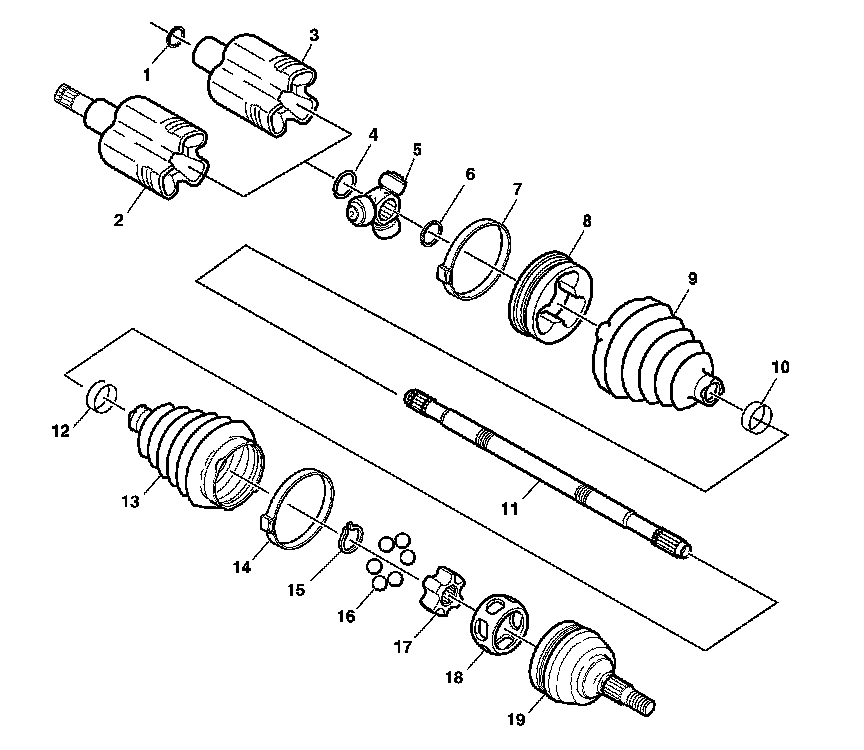

Front Wheel Drive Shaft Disassembled Views

Front Wheel Drive Shaft Disassembled Views





1 - Retaining Ring

2 - Housing Assembly

3 - Retainer and Housing Assembly

4 - Spacer Ring

5 - Tripot Joint Spider Assembly

6 - Spacer Ring (If Equipped)

7 - Boot Retaining Clamp

8 - Trilobal Tripot Bushing

9 - Tripot Joint Boot

10 - Swage Ring

11 - Halfshaft Bar

12 - Swage Ring

13 - CV Joint Boot

14 - Boot Retaining Clamp

15 - Race Retaining Ring

16 - Chrome Alloy Ball

17 - CV Joint Inner Race

18 - CV Joint Cage

19 - CV Joint Outer Race
