Control Valve Body Assembly Assemble




Control Valve Body Assembly Assemble

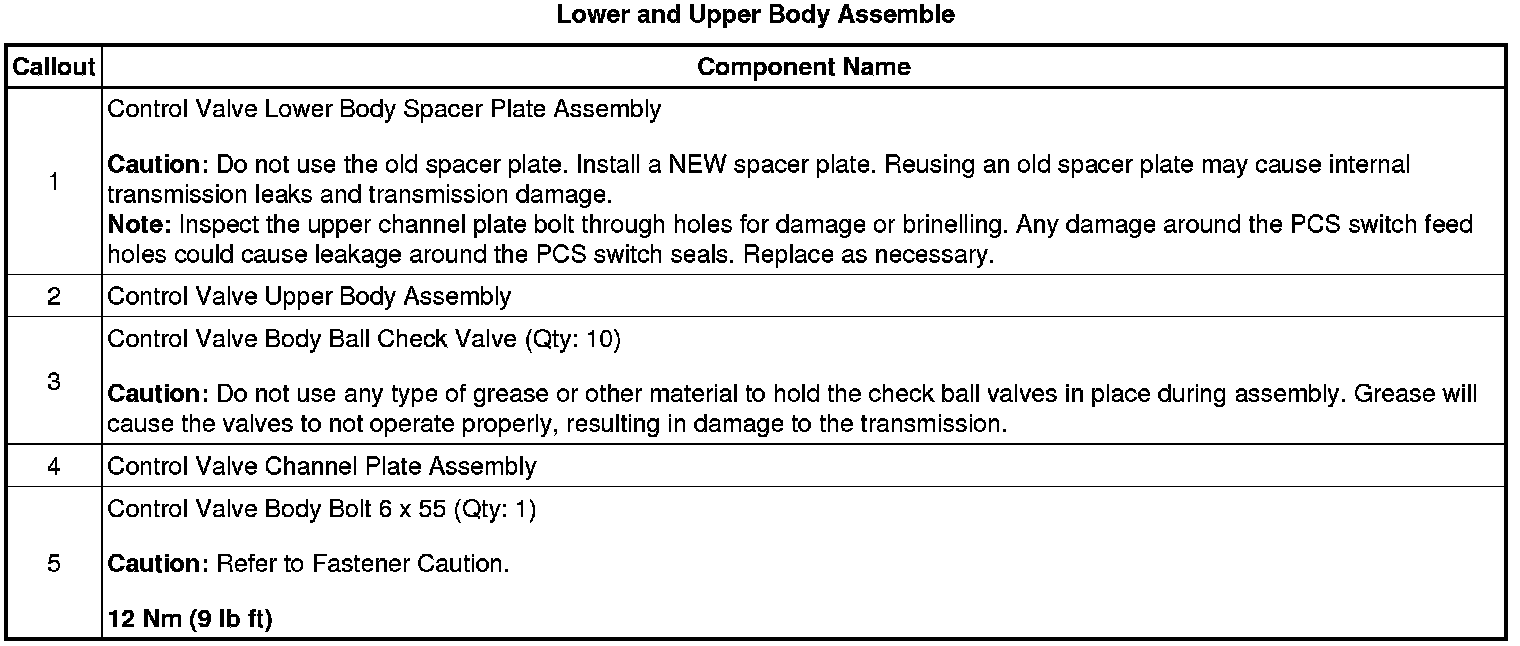

Lower and Upper Body Assemble

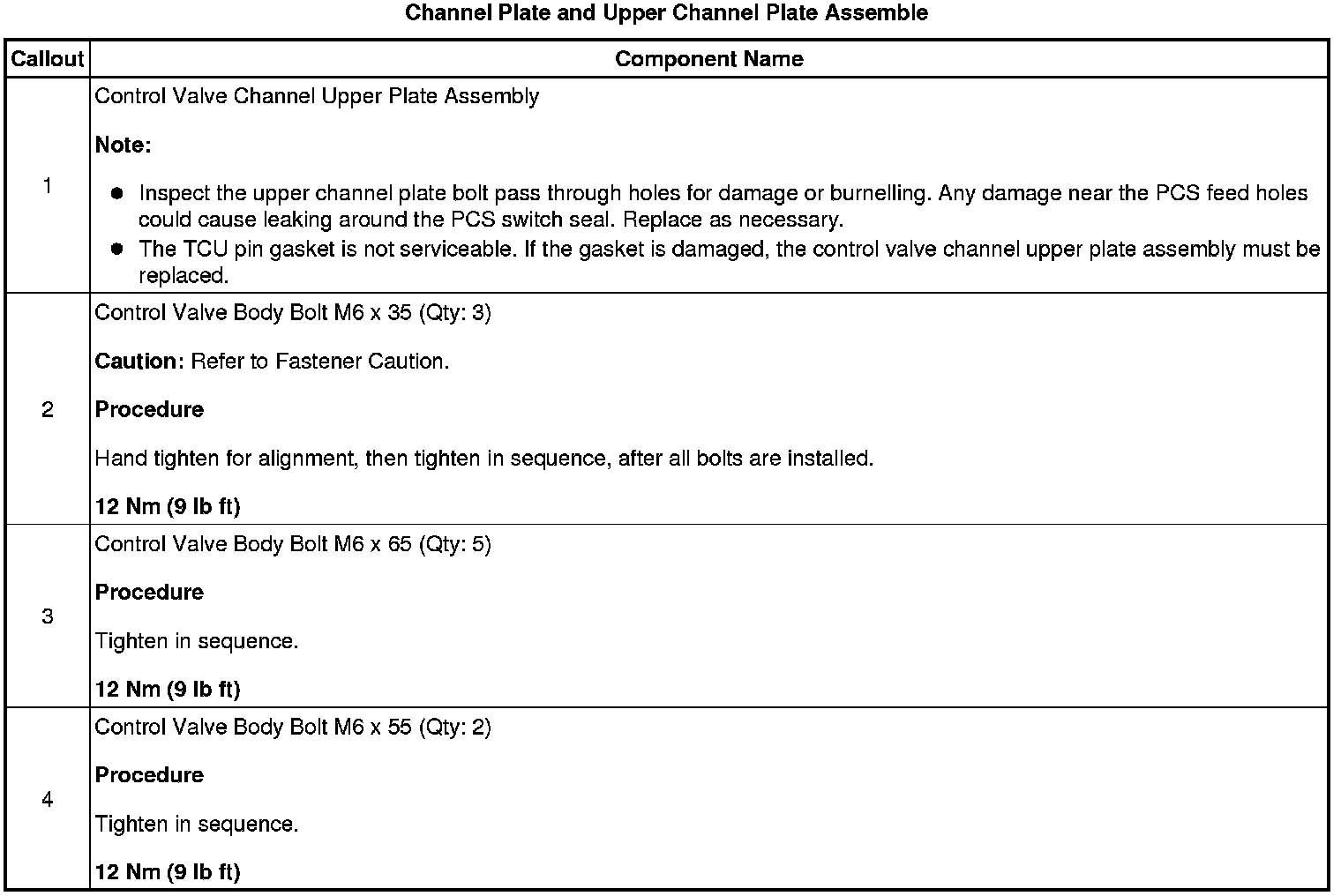

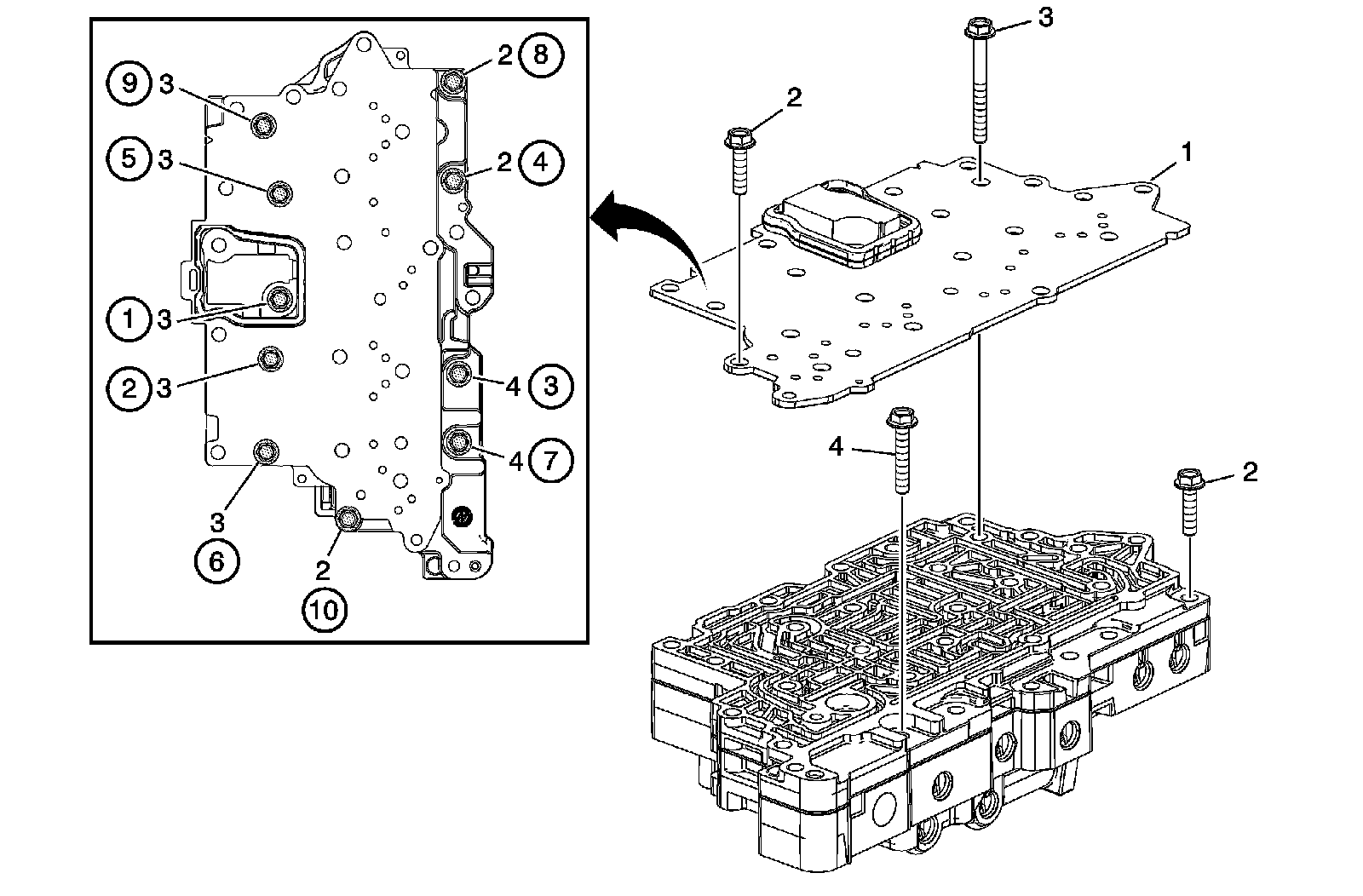

Channel Plate and Upper Channel Plate Assemble
