Home >> Chevy Truck >> 2013 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Alignment >> Wheel Alignment Specifications

Wheel Alignment Specifications

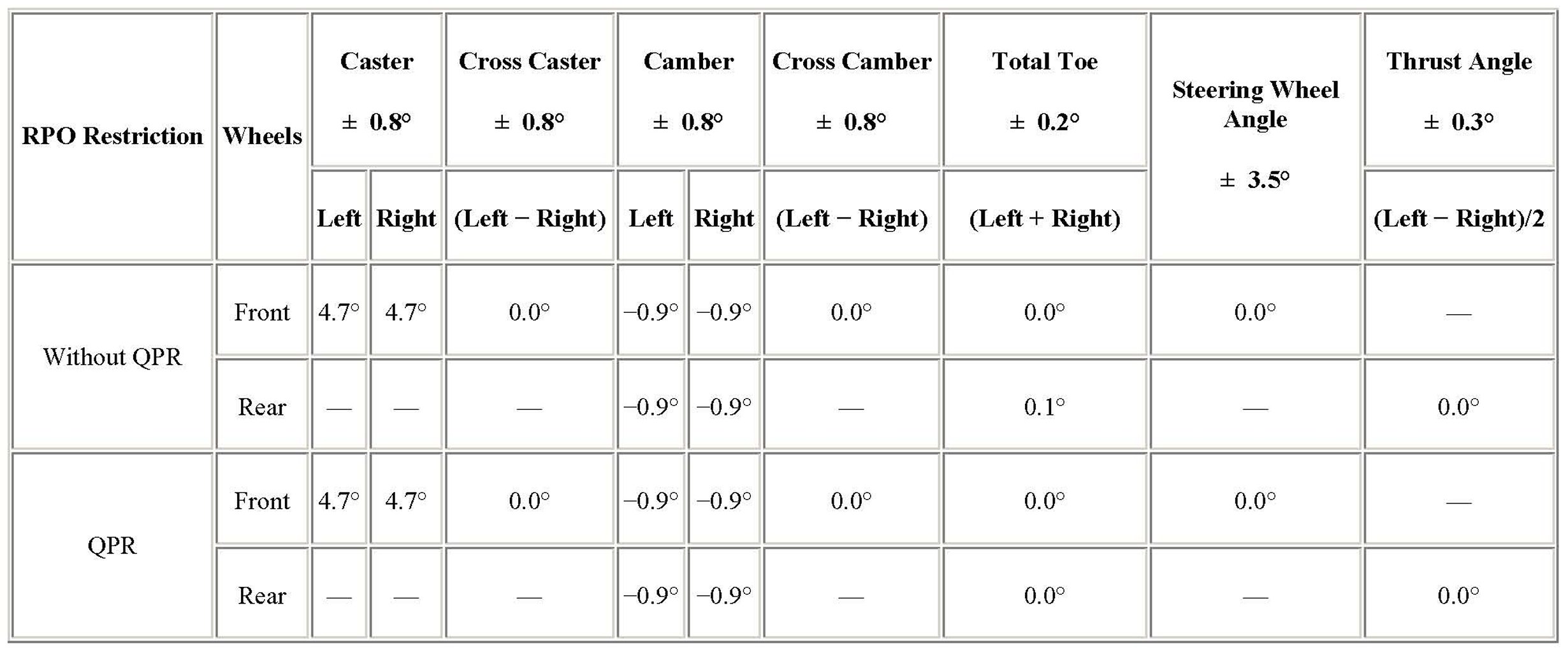

WHEEL ALIGNMENT SPECIFICATIONS

RPO QPR - TIRE ALL P245/70R17 SL 108S BW ALS

Alignment Condition: Full tank of fuel, no passengers and placed on flat level surface.
