Electrical Diagrams




SIR Schematics

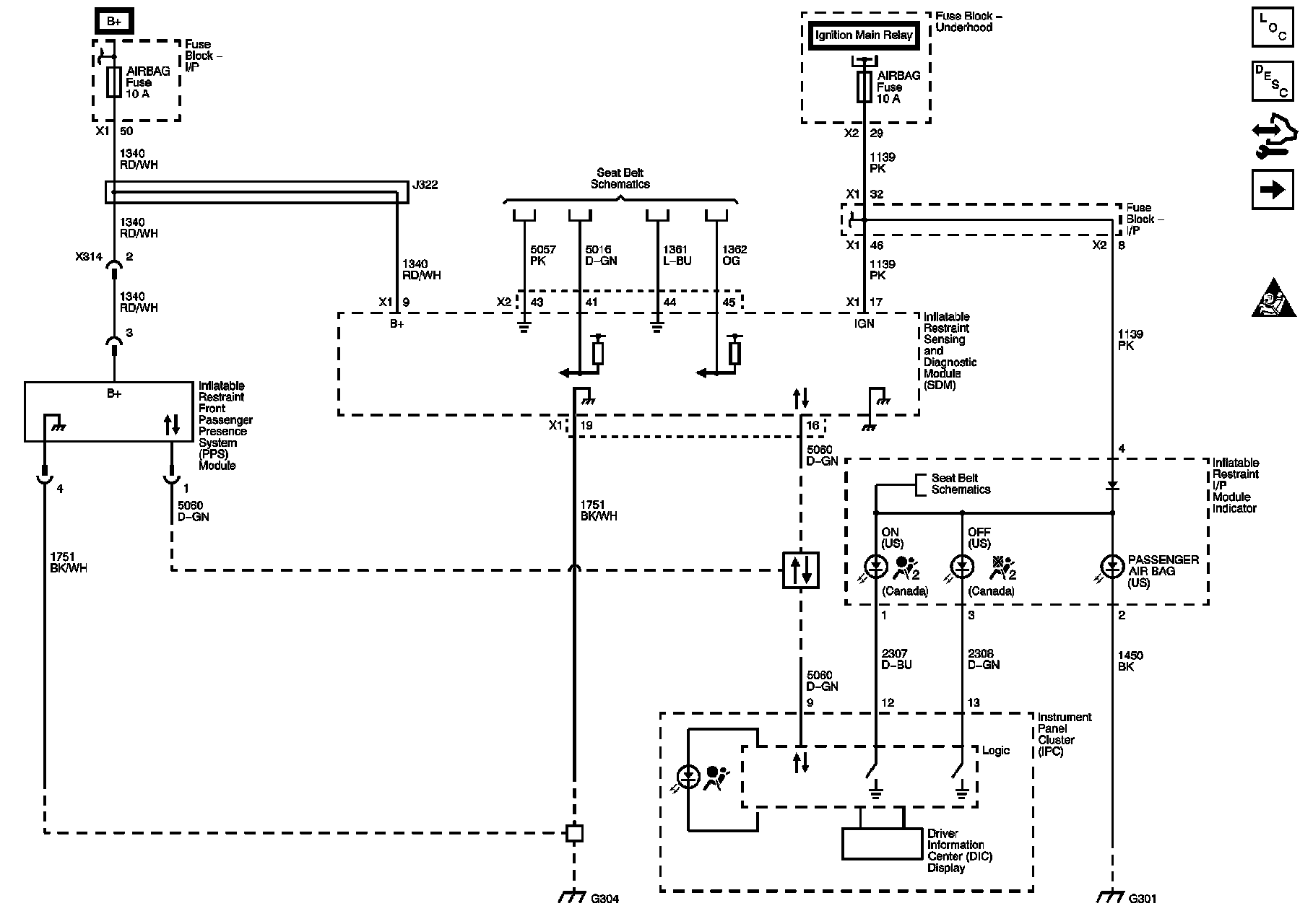

Power, Ground, Indicators, Passenger Presence Sensors

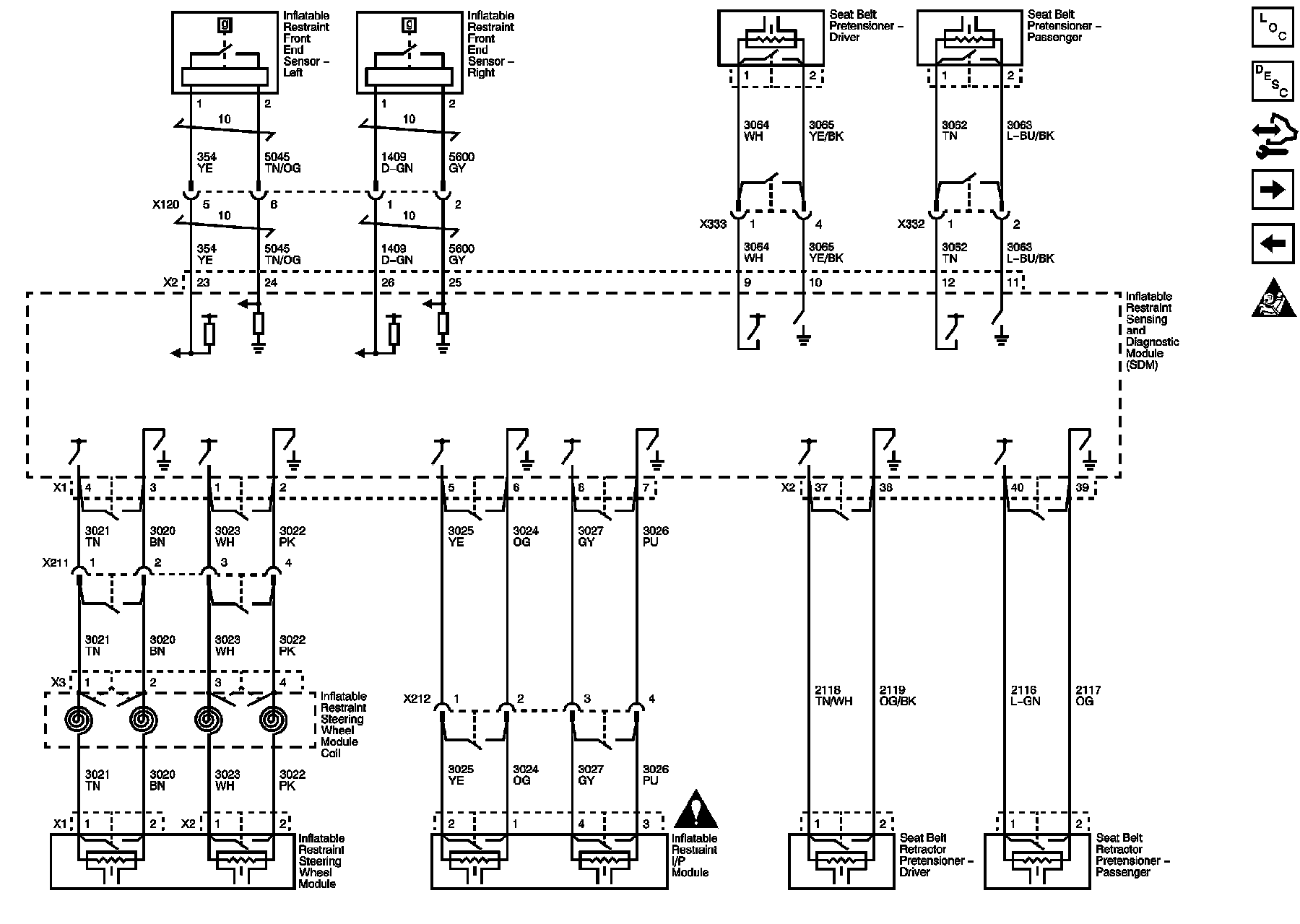

Front End Sensors, Seat Belt Pretentioners, and Front Air Bags

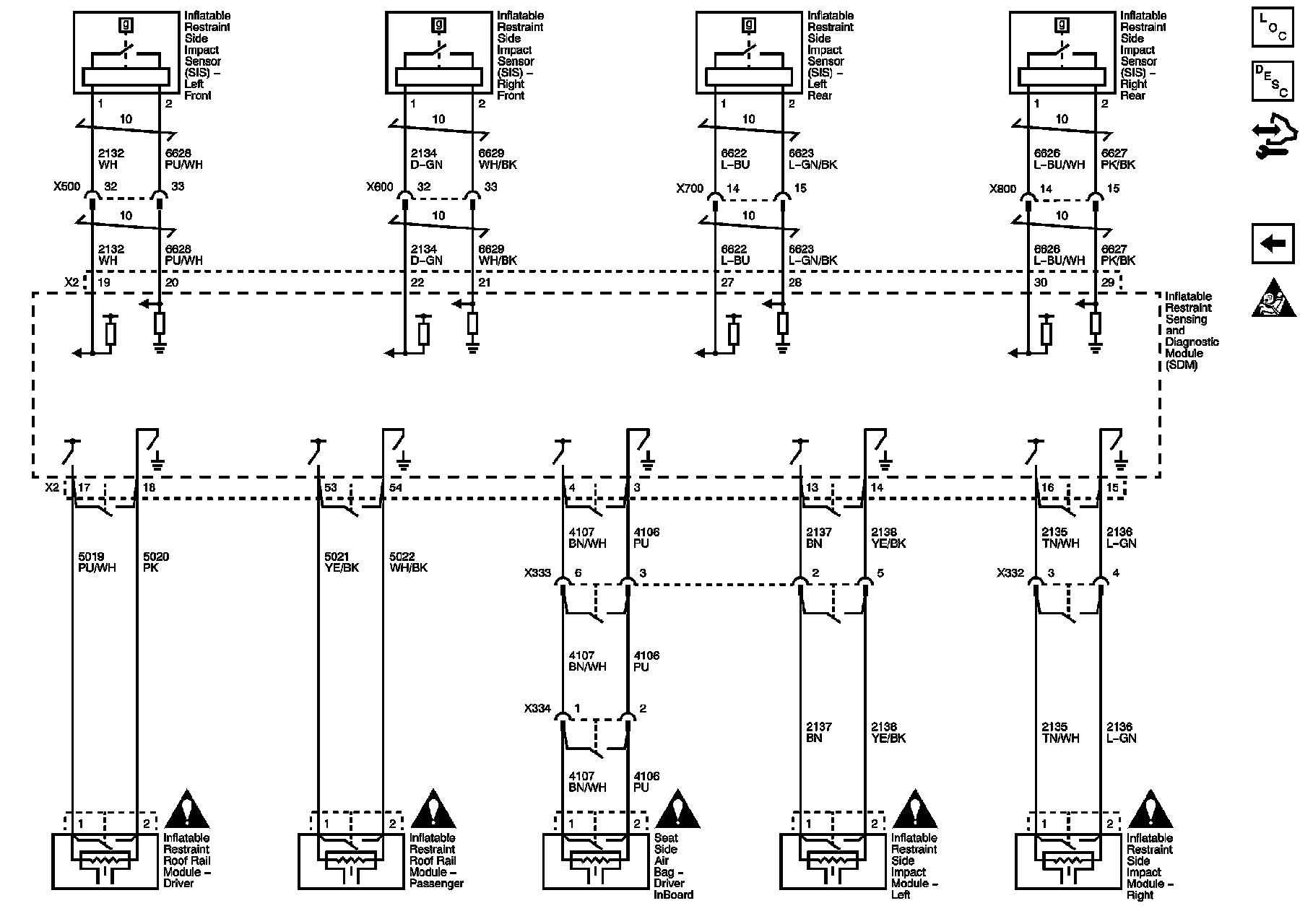

Side Impact Sensors and Roof Rail and Side Impact Air Bags
