Fuel Filler Hose: Service and Repair

Filler Tube Replacement

Removal Procedure

Warning

Do not allow smoking or the use of open flames in the area where work on the fuel or EVAP system is taking place. Anytime work is being done on the fuel system, disconnect the negative battery cable, except for those tests where battery voltage is required.




1. Remove the fuel fill cap.

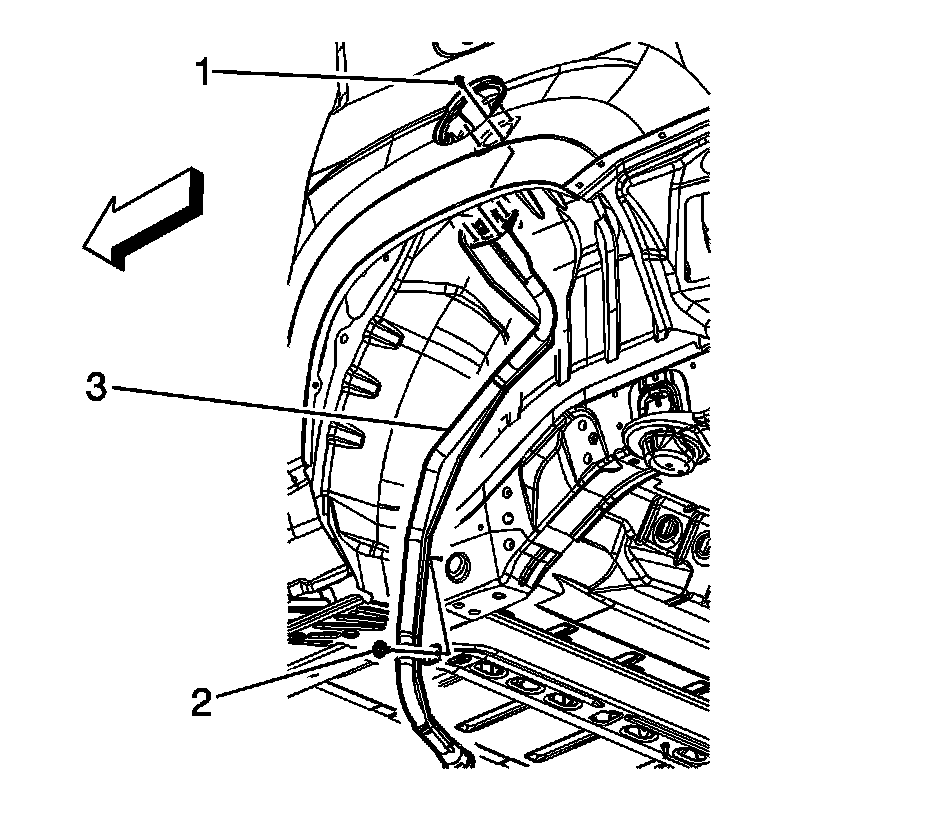

2. Remove the fuel tank fill pipe housing to fuel tank fill pipe bolts (1).

3. Drain the fuel tank. Refer to Fuel Tank Draining Procedures.

4. Remove the left rear wheel and tire. Refer to Tire and Wheel Removal and Installation Removal and Replacement.

5. Remove the left rear wheelhouse liner panel. Refer to Rear Wheelhouse Panel Liner Replacement (Traverse) Rear Wheelhouse Panel Liner Replacement (Enclave) Rear Wheelhouse Panel Liner Replacement (Acadia) .

6. Remove the fuel tank fill pipe bracket bolt (2).

7. Remove the fuel tank fill pipe assembly (3) from the vehicle.

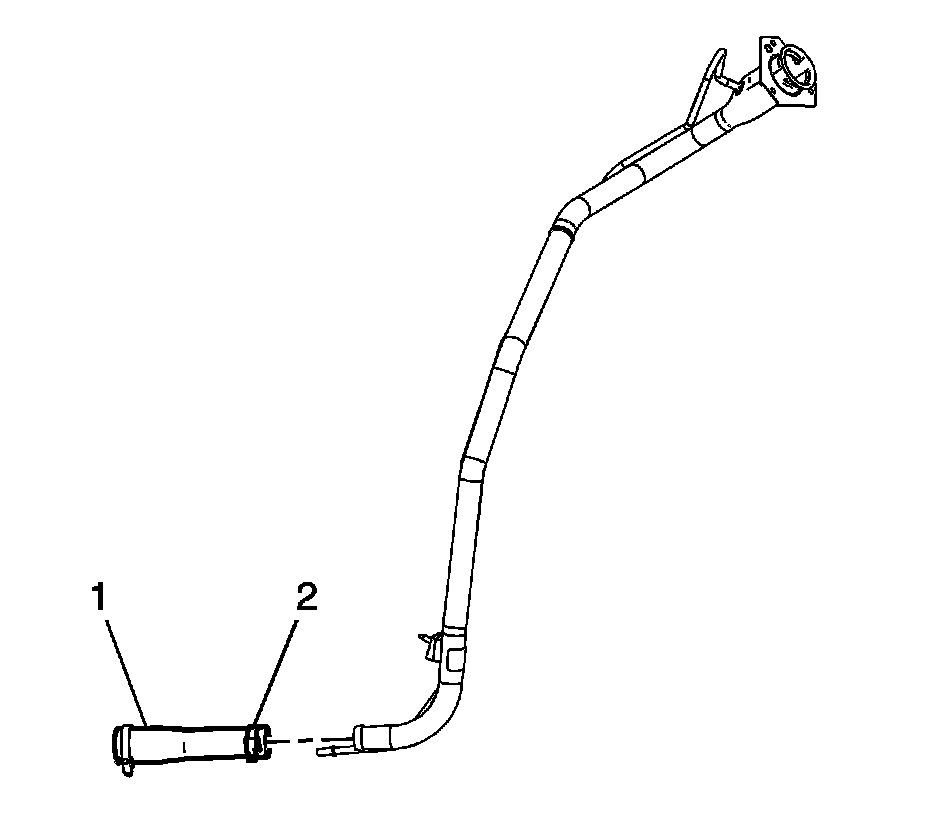

8. Loosen the fuel tank fill hose clamp (2), if necessary.

9. Remove the fuel tank fill hose (1), if necessary.

Installation Procedure




1. Install the fuel tank fill hose (1), if necessary.

Caution: Refer to Fastener Caution Fastener Caution.

2. Tighten the fuel tank fill hose clamp (2), if necessary.

Tighten the clamp to 3.3 Nm (29 lb in).





Note: Ensure that the notch in the fill hose aligns with the tab on the fuel tank.

3. Position and install the fuel tank fill hose (2) to the fuel tank.

4. Connect the evaporative emission (EVAP) canister vent rear pipe quick connect fitting (4) to the recirculation line on the fuel tank fill pipe (3). Refer to Plastic Collar Quick Connect Fitting Service Service and Repair.

5. Tighten the fuel tank fill hose clamp (1) at the fuel tank.

Tighten the clamp to 3.3 Nm (29 lb in).




6. Install the fuel tank fill pipe bracket bolt (2).

Tighten the bolt to 12 Nm (106 lb in).

7. Install the left rear wheelhouse liner panel. Refer to Rear Wheelhouse Panel Liner Replacement (Traverse) Rear Wheelhouse Panel Liner Replacement (Enclave) Rear Wheelhouse Panel Liner Replacement (Acadia) .

8. Install the left rear wheel and tire. Refer to Tire and Wheel Removal and Installation Removal and Replacement.

9. Lower the vehicle.

10. Install the fuel tank fill pipe housing to fuel tank fill pipe bolts (1).

Tighten the bolts to 2 Nm (18 lb in).

11. Install the fuel fill cap.
