Clock Malfunction

Clock Malfunction

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

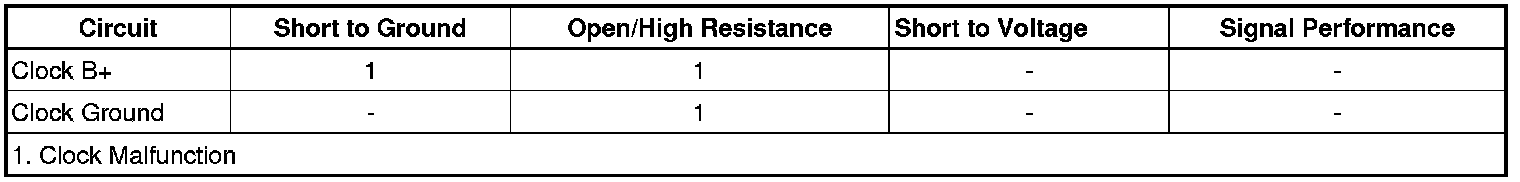

Diagnostic Fault Information






Circuit/System Description

The instrument panel is equipped with an analog clock. The analog clock utilizes the clock B+ circuit and the clock ground circuit to operate.

Reference Information

Schematic Reference

Driver Information System Schematics Driver Information System Schematics

Connector End View Reference

Component Connector End Views A/C Compressor Clutch

Description and Operation

Instrument Cluster Description and Operation Instrument Cluster

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Testing

1. Ignition OFF, disconnect the harness connector at the clock.

2. Ignition OFF, test for less than 5 ohms between the ground circuit terminal 2 and ground.

• If greater than the specified value, test the ground circuit for an open/high resistance.

3. Verify that a test lamp illuminates between the B+ circuit terminal 1 and the ground circuit terminal 2.

• If the test lamp does not illuminate, test the B+ circuit for a short to ground or an open/high resistance.

4. If all circuits test normal, test or replace the clock.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

Clock Replacement (Enclave)
