Passenger Compartment Air Filter - Owners Manual

PASSENGER COMPARTMENT AIR FILTER
The filter removes dust, pollen, and other airborne irritants from outside air and inside air when in recirculation mode.

The filter should be replaced as part of routine scheduled maintenance.






1. Open the glove box.

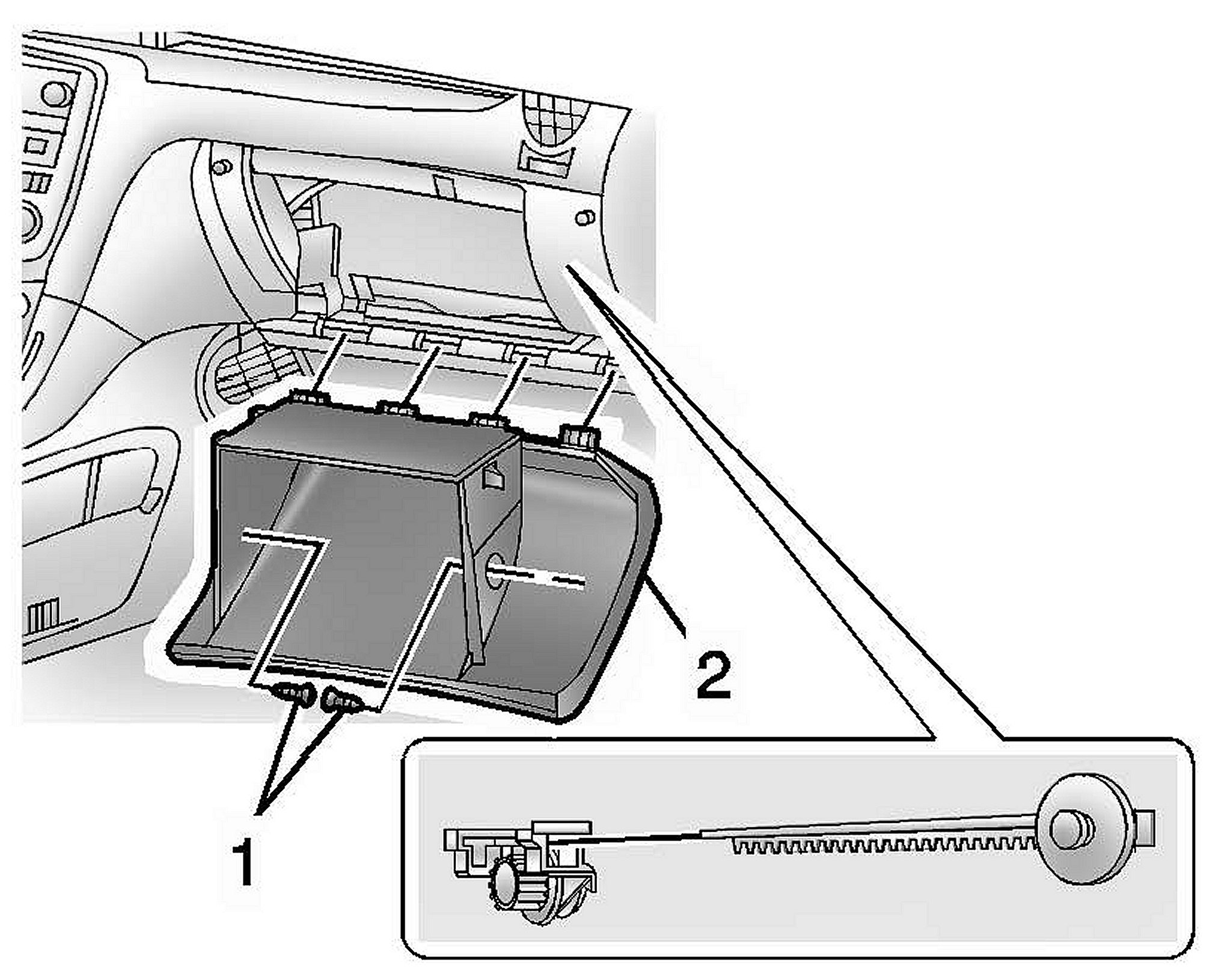

2. Twist the compartment retainers (1) and pull outward to remove.

3. Lower the instrument panel compartment assembly (2) beyond the stops.






4. If needed, unsnap the instrument panel compartment assembly (2) from the instrument panel. When reinstalling, be sure the instrument panel compartment dampener arm is aligned properly to the dampener gear assembly.

5. Squeeze the housing cover (1) tabs to remove.

6. Remove the old air filter from the passenger compartment air filter housing (2).

7. Install the new air filter.

8. Replace the housing cover.

9. If removed, reinstall the instrument panel compartment assembly.

10. Reinstall the compartment retainers.
