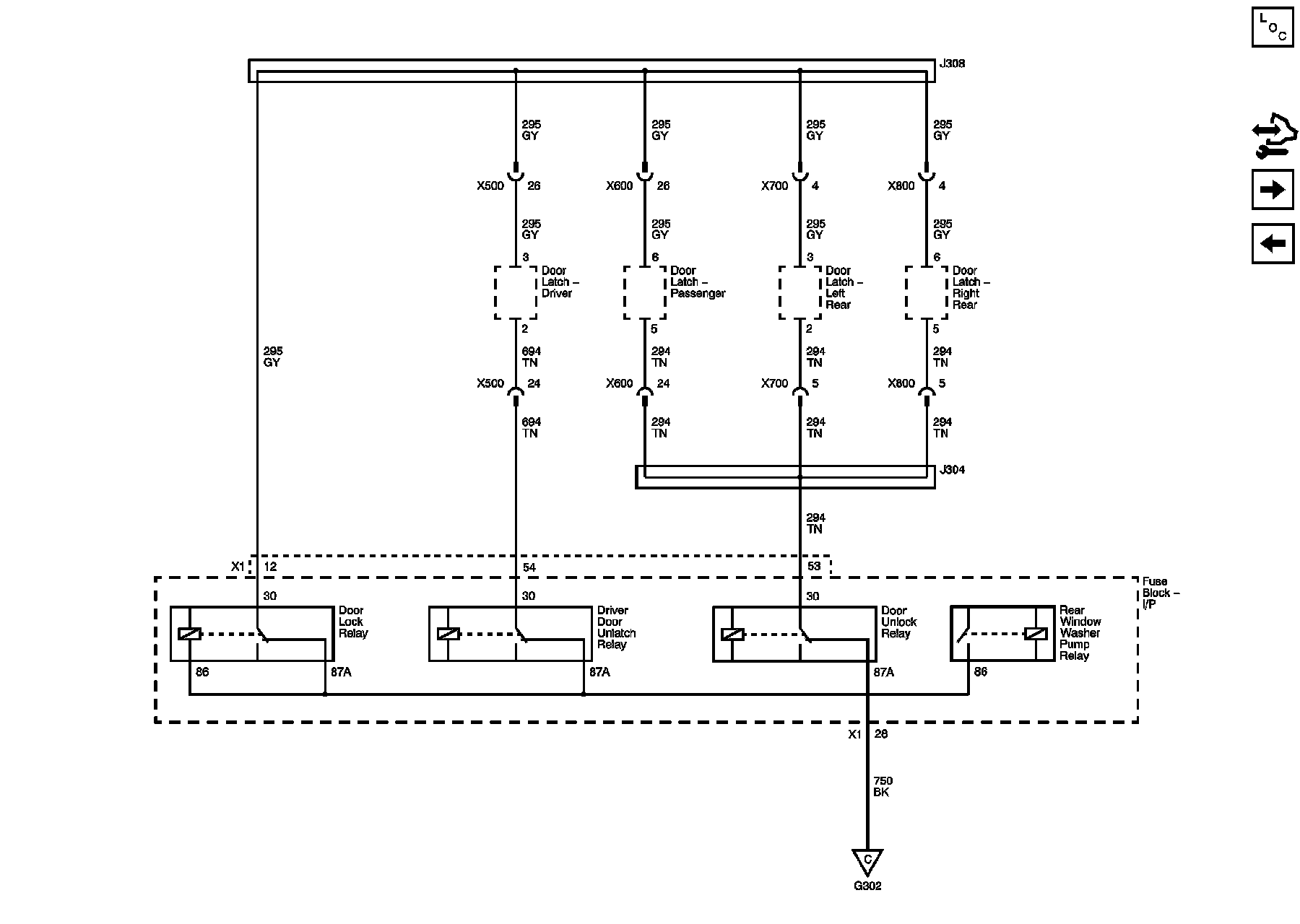

G302 (2 of 3)




Ground Distribution Schematics

G302 (2 of 3)





Master Electrical Component List
Control Module References
G302 (3 of 3)
G302 (1 of 3)
Electrical Center Identification Views
Electrical Center Identification Views
Electrical Center Identification Views
Electrical Center Identification Views
G302 (1 of 3)
