Home >> Chevy Truck >> 2013 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Seat Temperature Element >> Seat Cushion Temperature Sensors and Heating

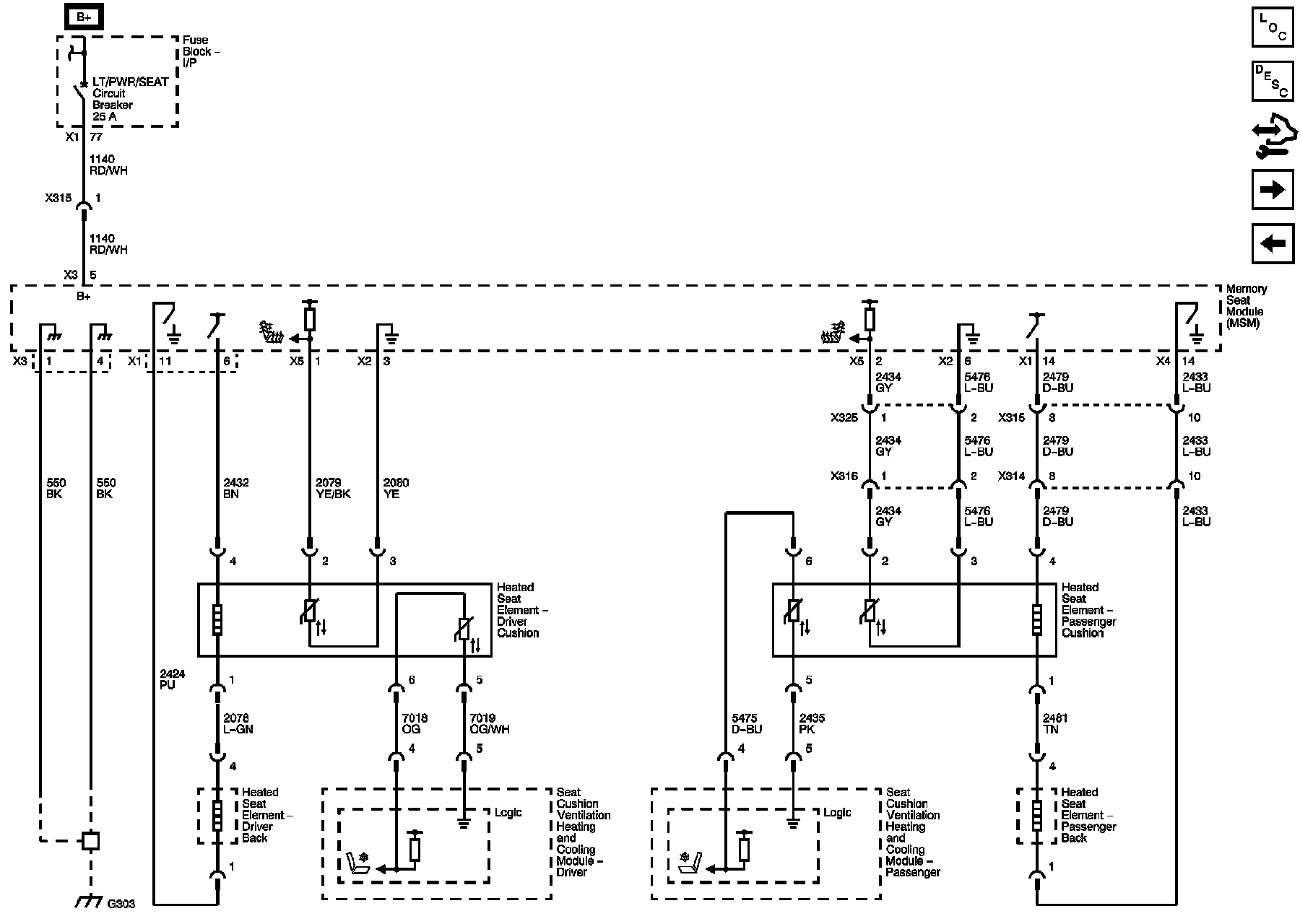

Seat Cushion Temperature Sensors and Heating





Seat Cushion Temperature Sensors and Heating
