Home >> Chevy Truck >> 2013 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Seat Temperature Element >> Heating Elements (SPO Accessory)

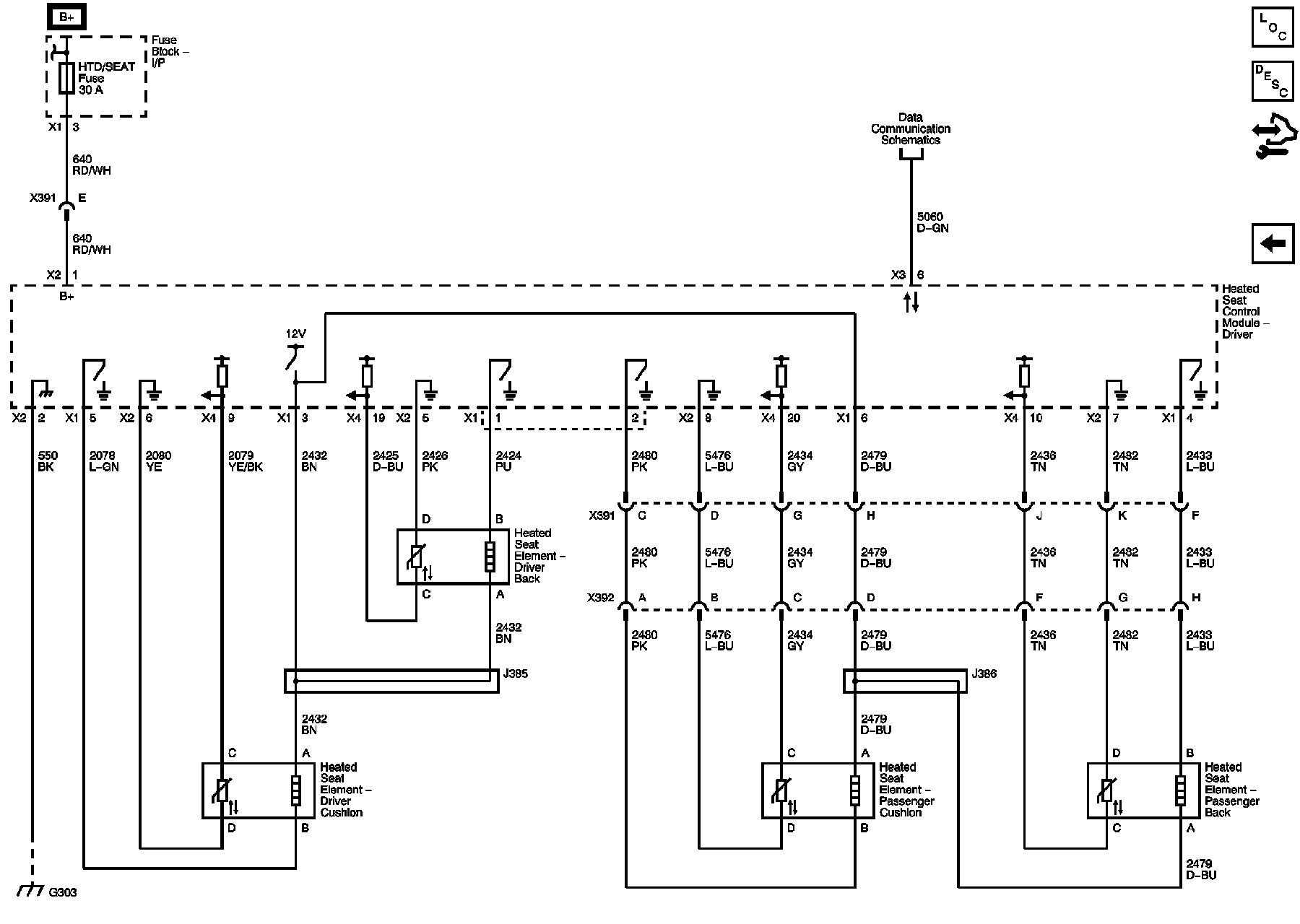

Heating Elements (SPO Accessory)




Heating Elements (SPO Accessory)
