Interior Lights Dimming Schematics




Interior Lights Dimming Schematics

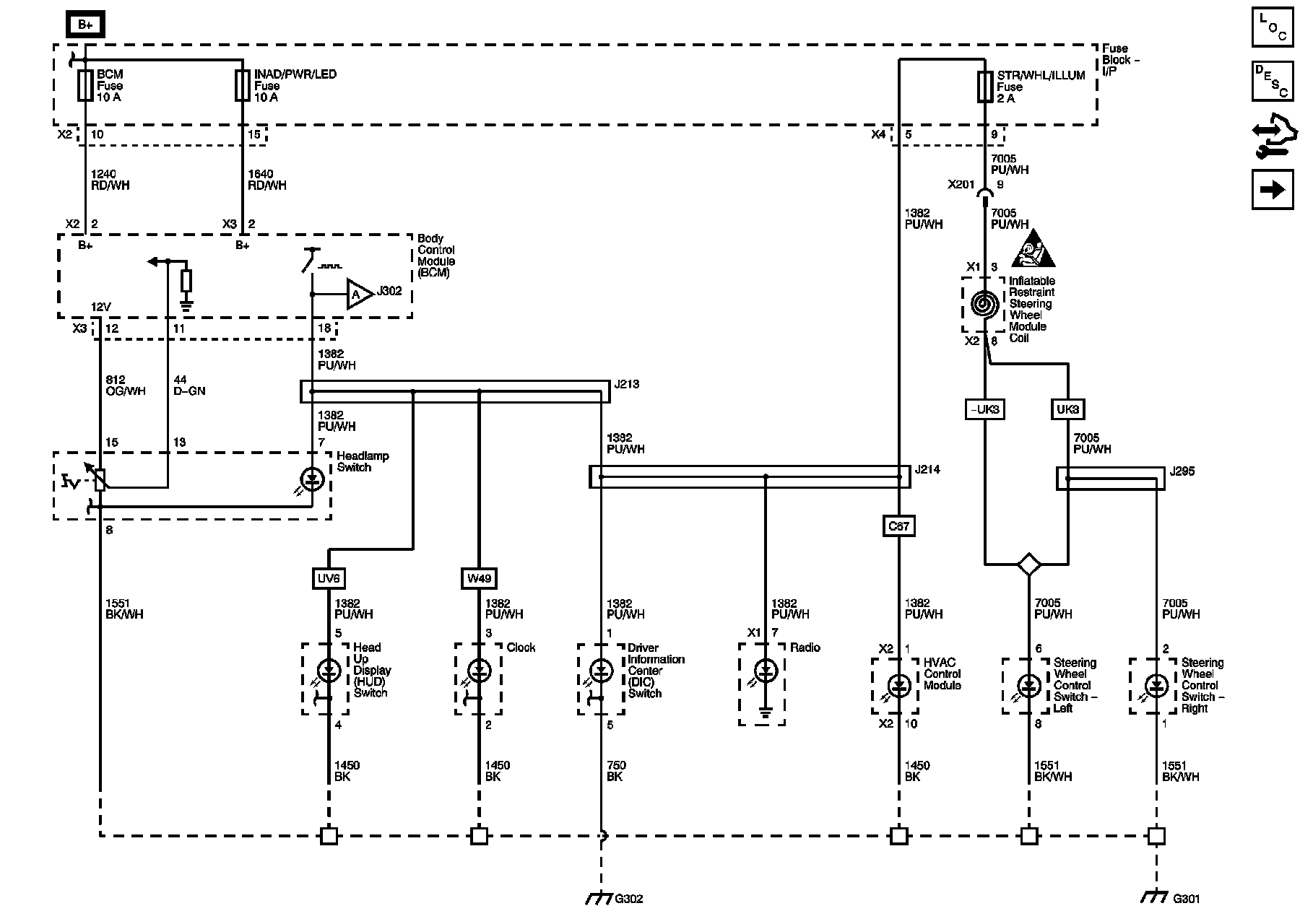

LED Dimming (1 of 2)

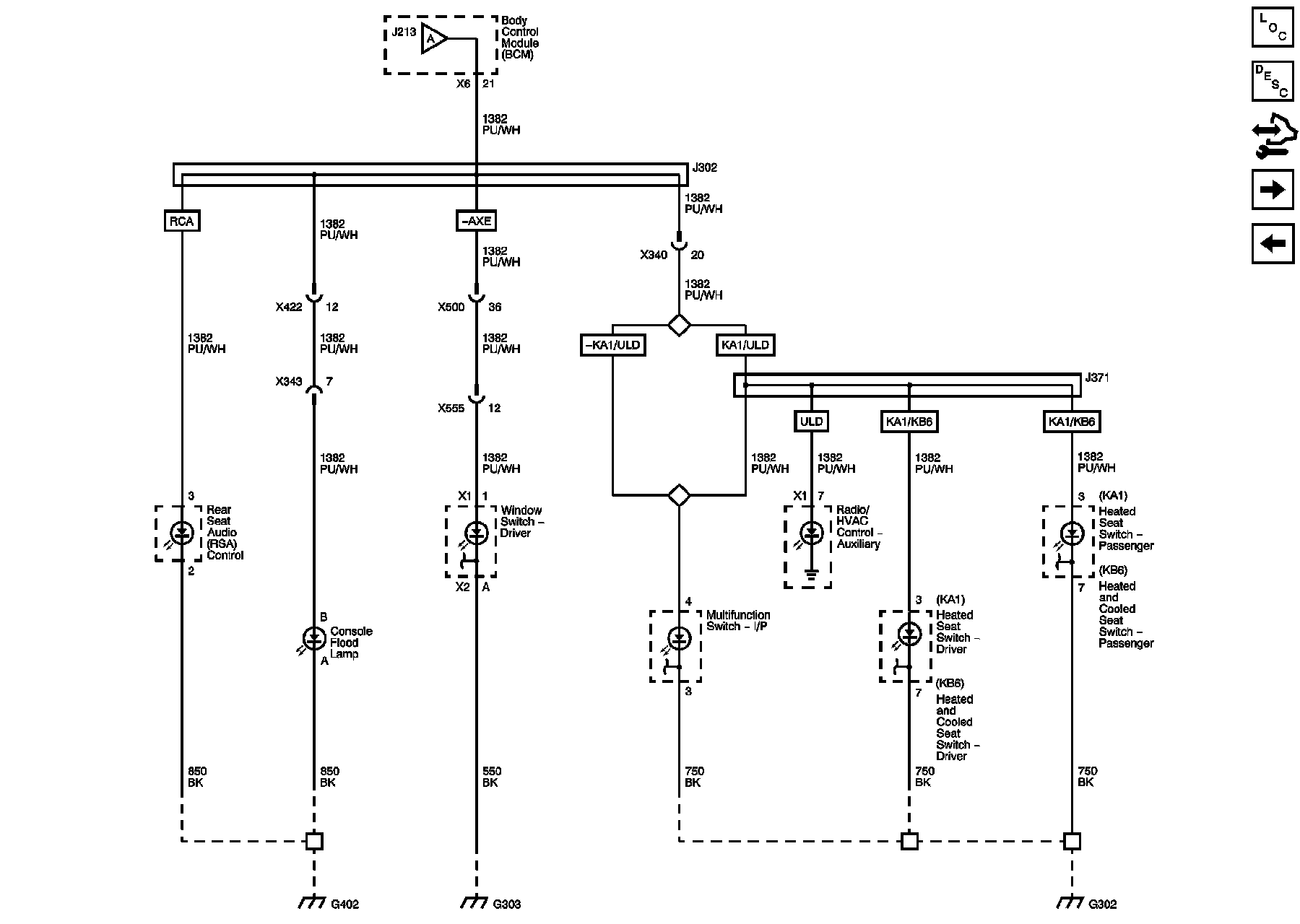

LED Dimming (2 of 2)

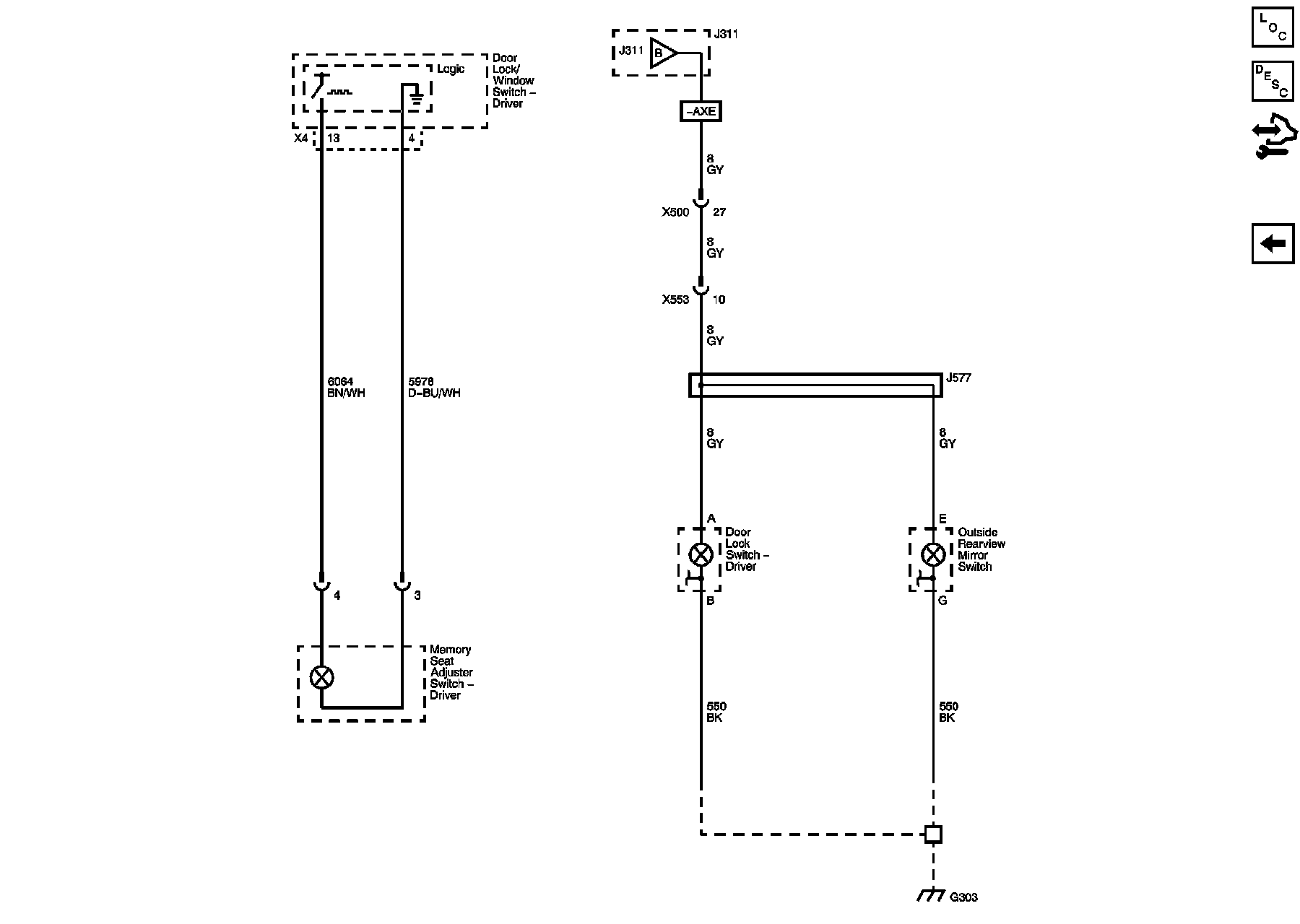

Lamp Dimming (1 of 2)






Lamp Dimming (2 of 2)
