HVAC - Automatic




HVAC Schematics

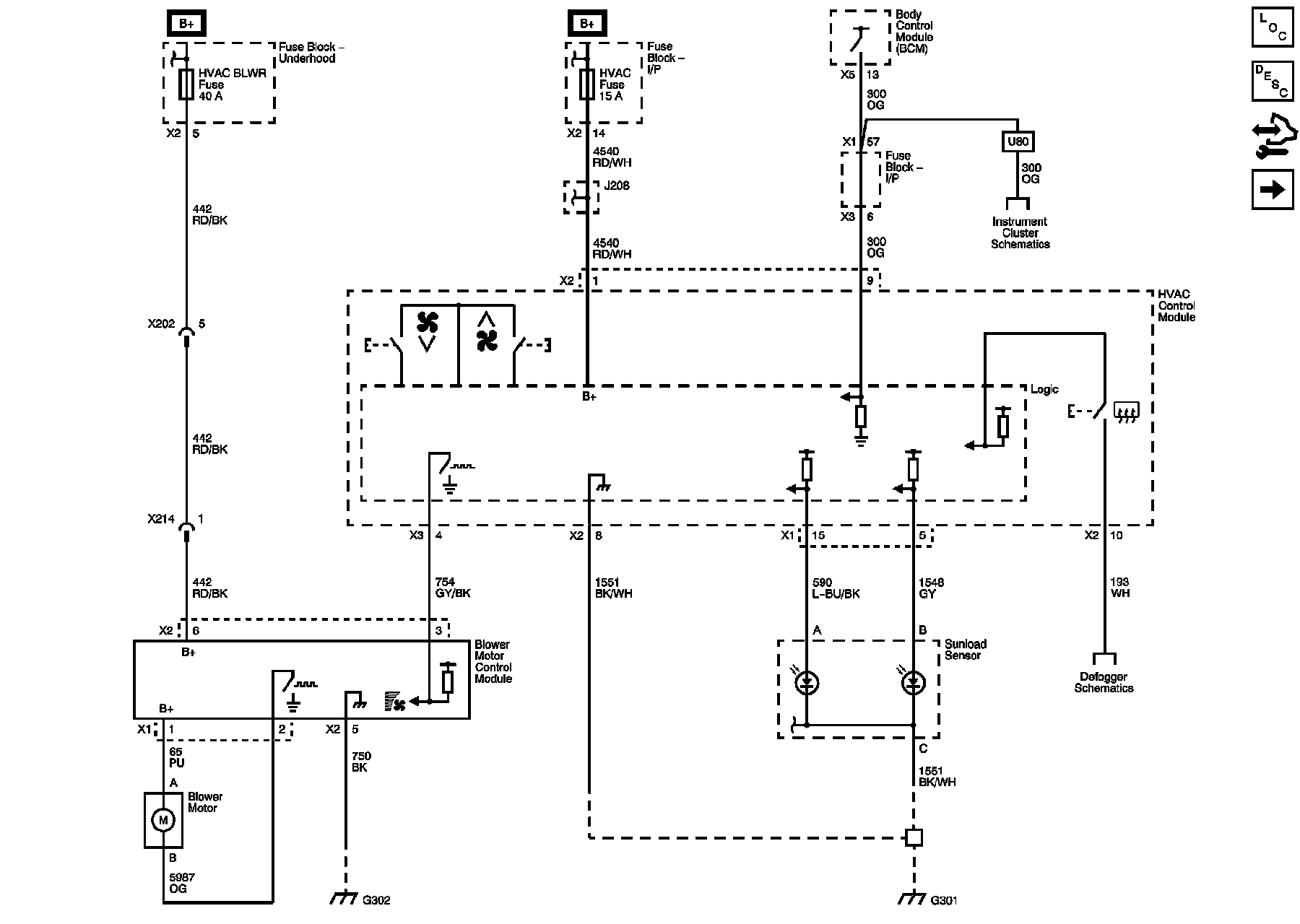

Power, Ground, Blower Control, Serial Data, and Sunload Sensor

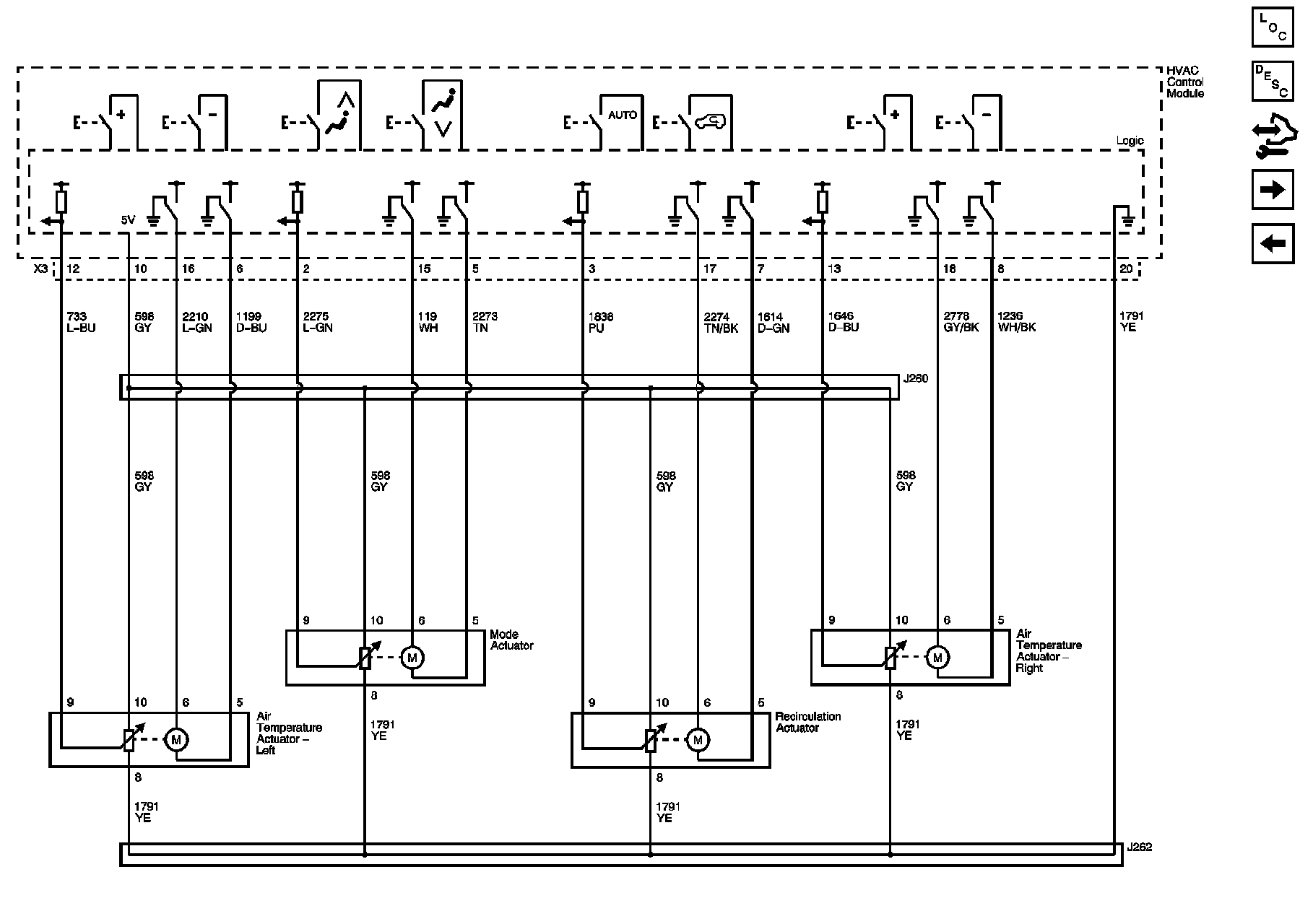

Actuators

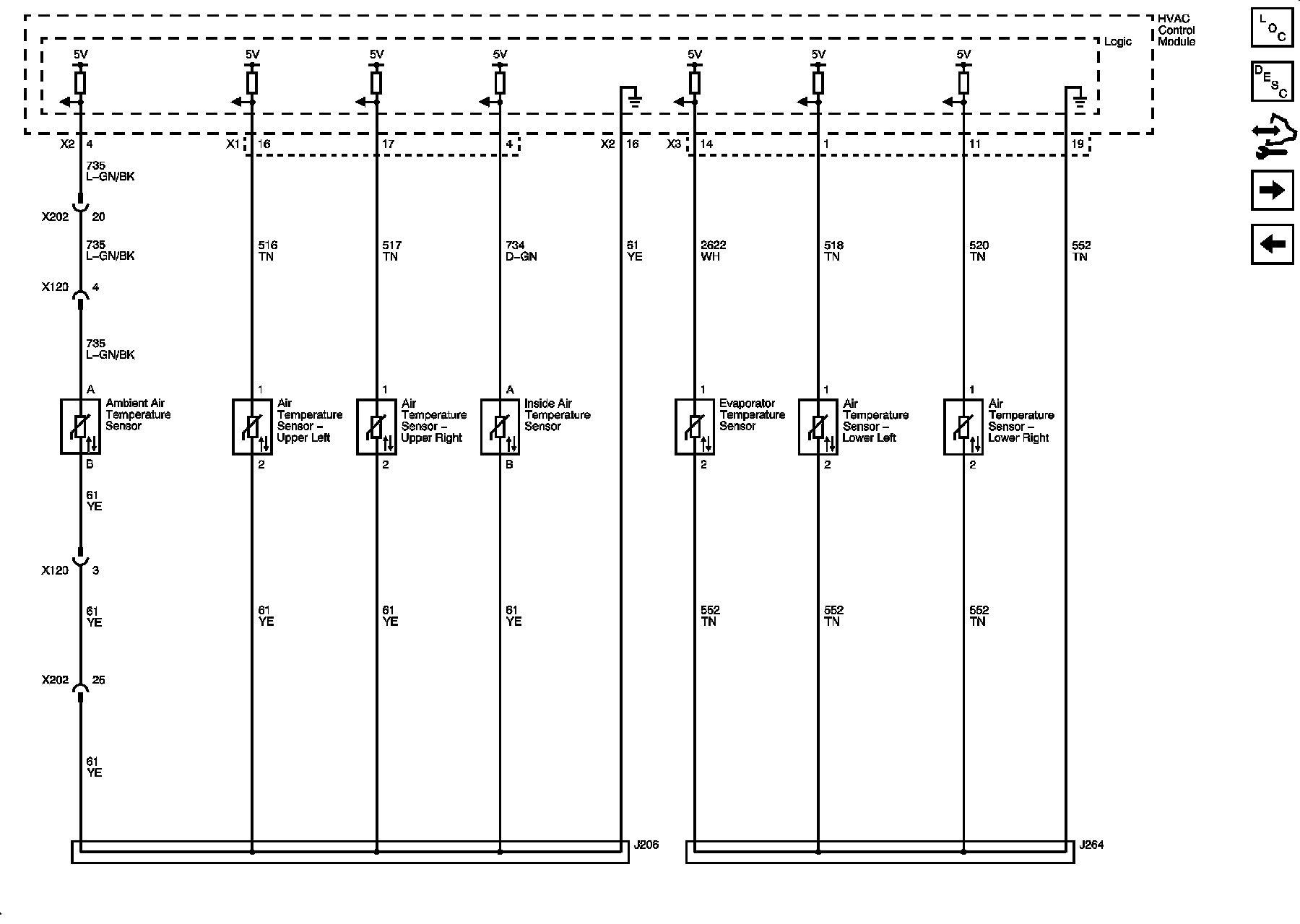

Sensors

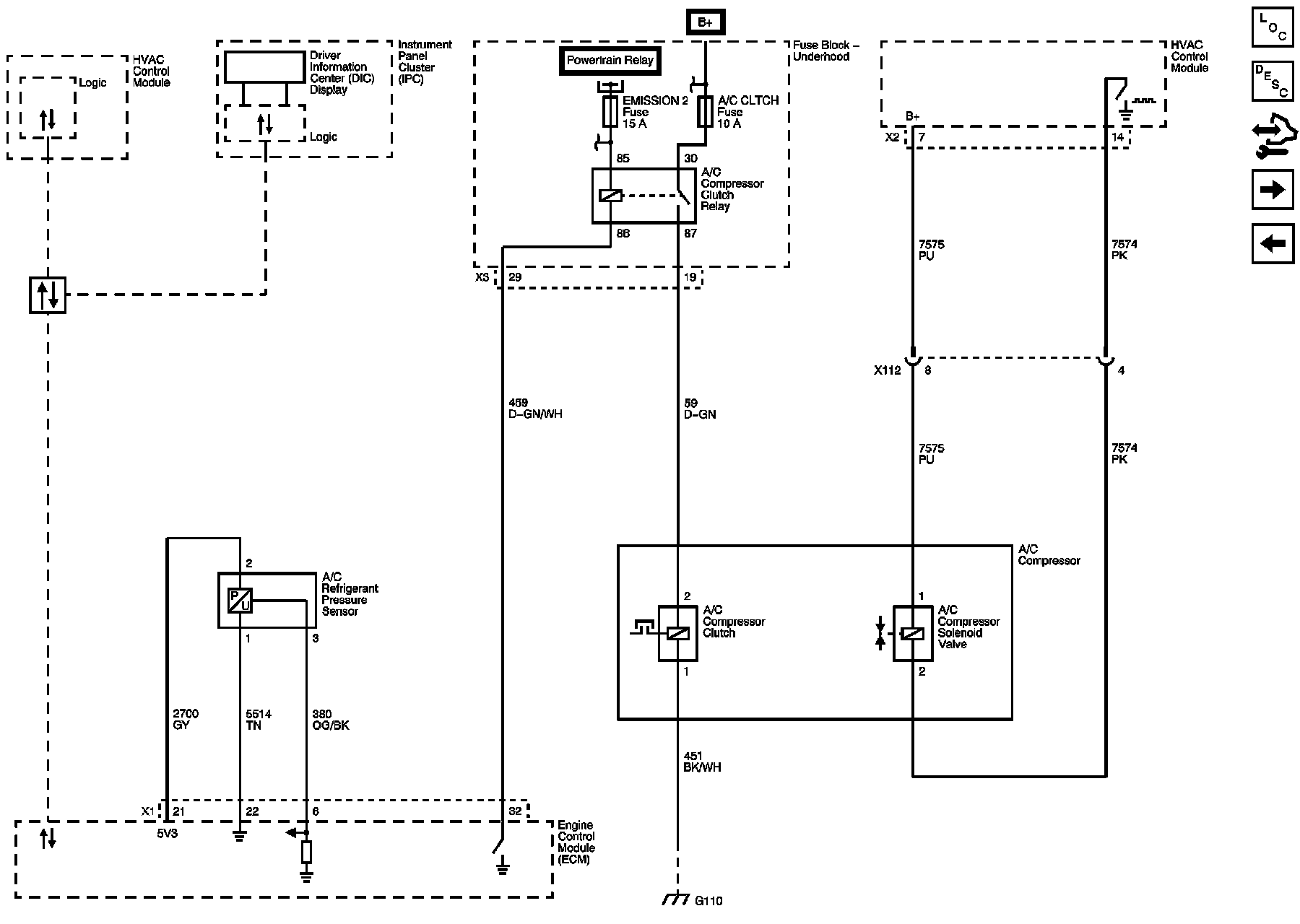

Compressor Controls

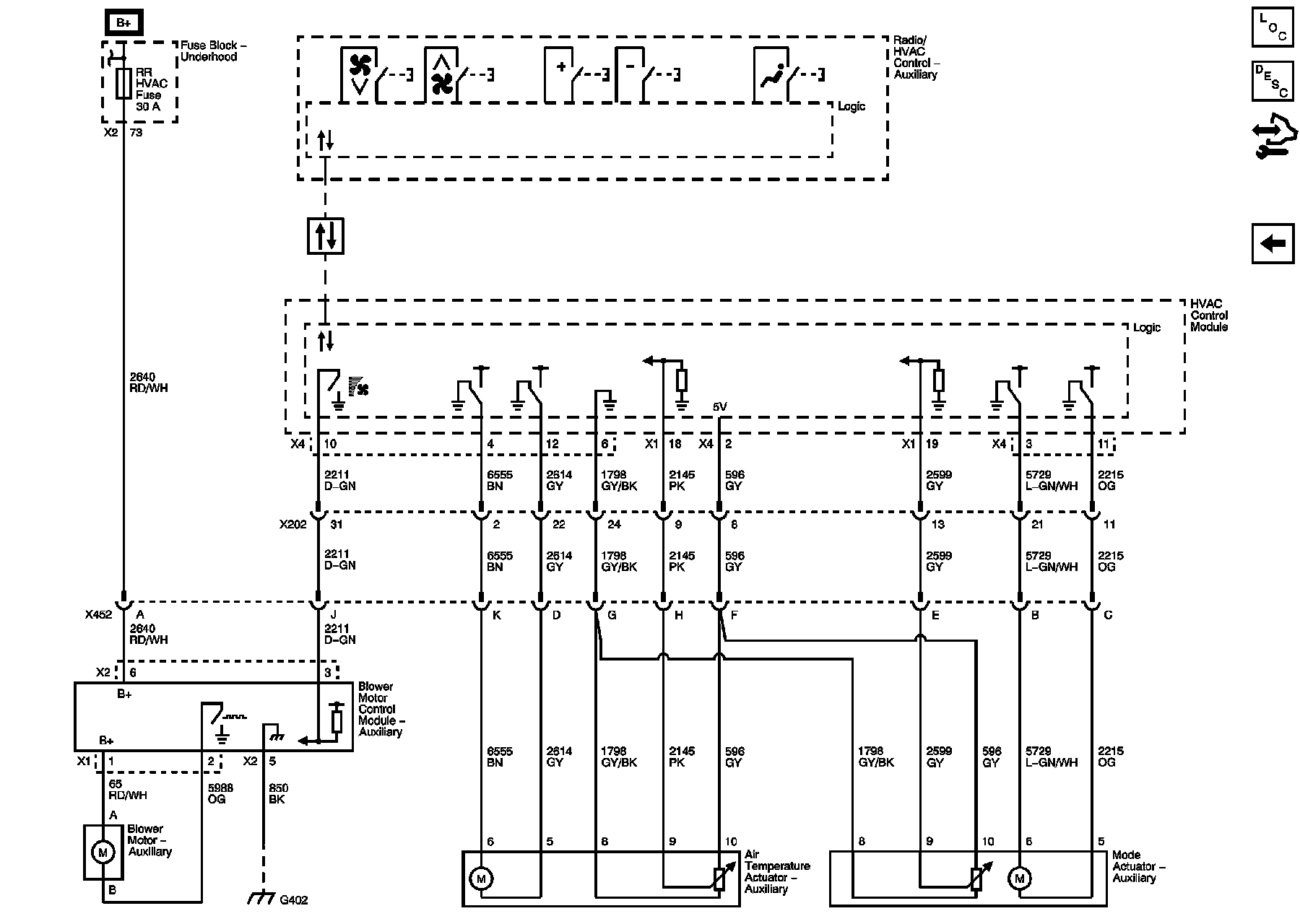

Rear HVAC
