X151 Left Headlamp Harness to Forward Lamp Harness (Z88 With TVD)

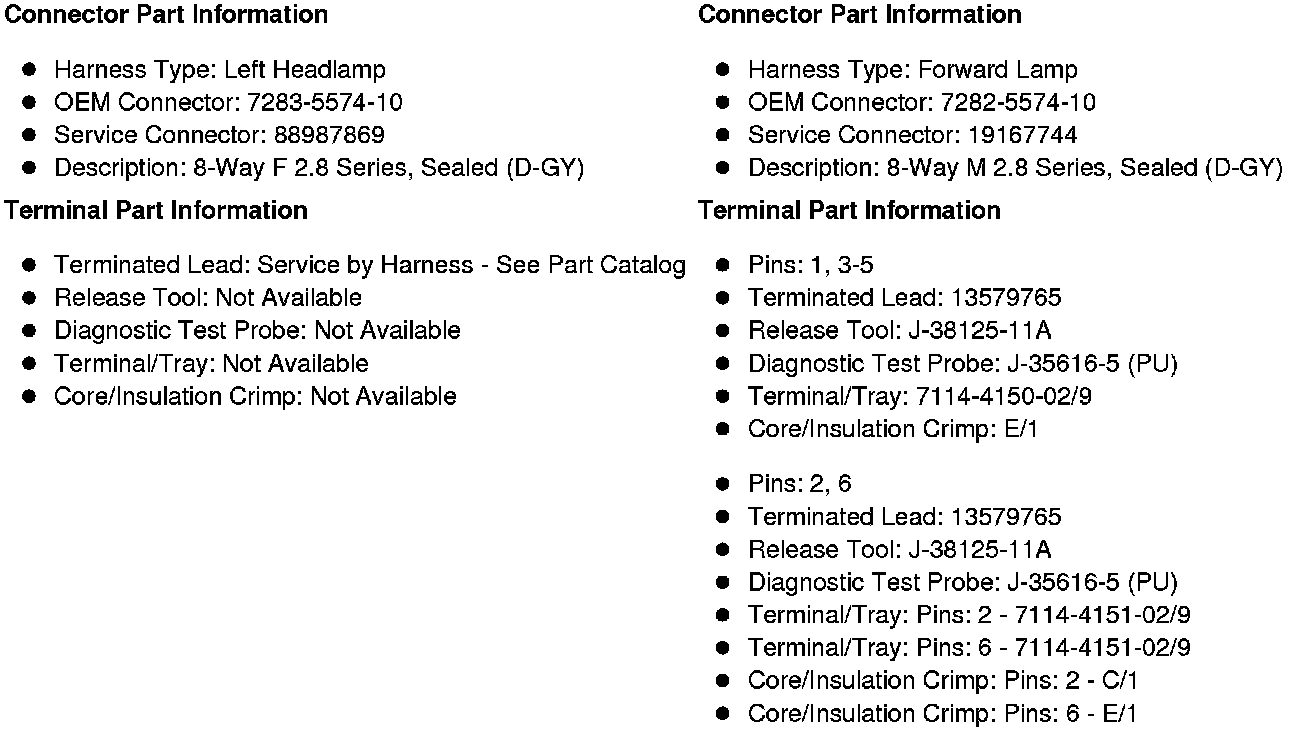

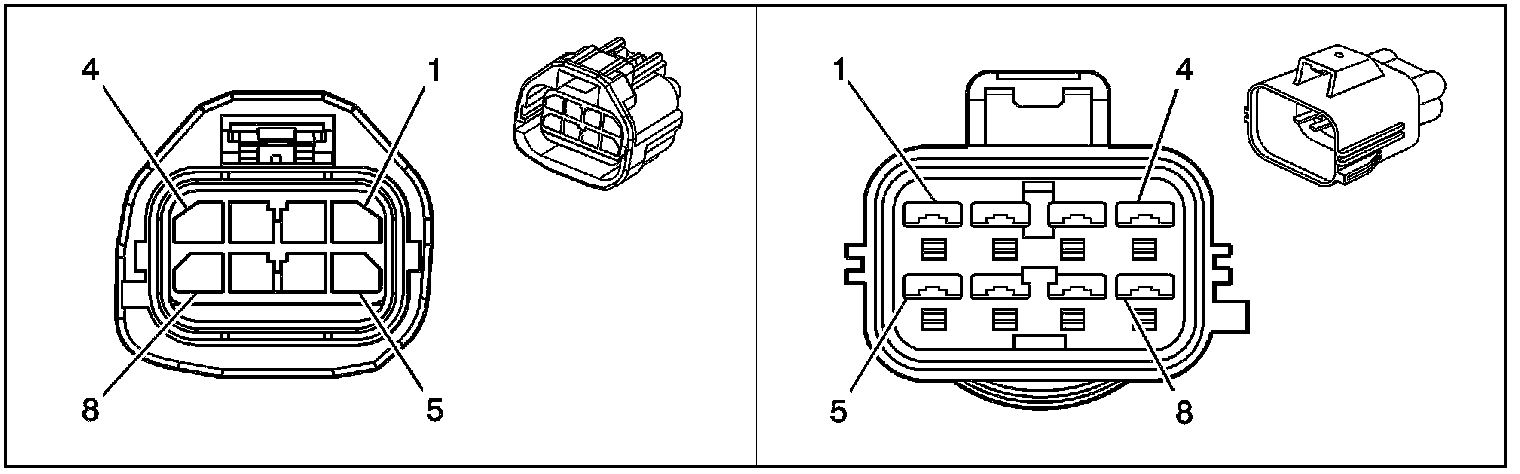

Inline Harness Connector End Views

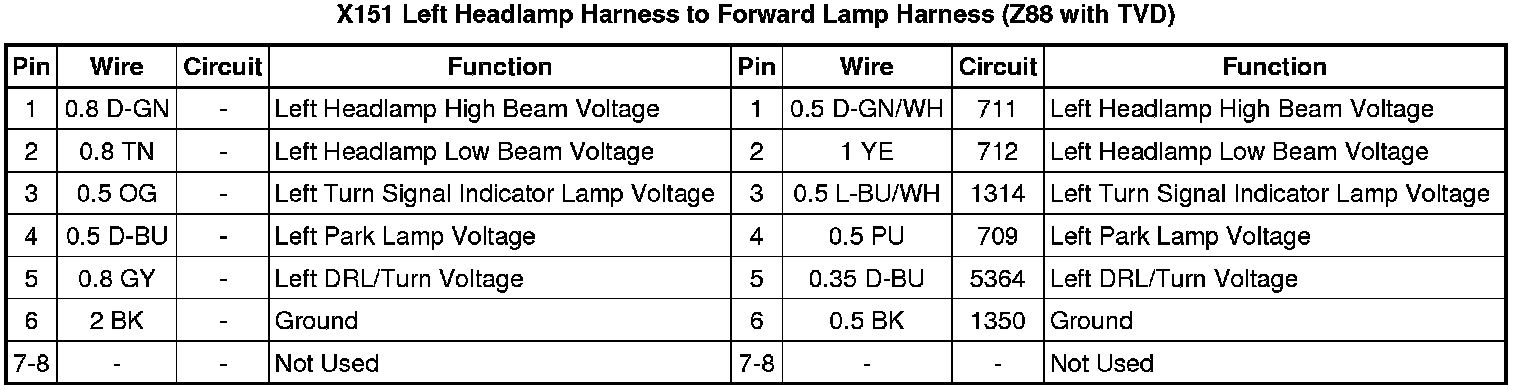

X151 Left Headlamp Harness to Forward Lamp Harness (Z88 with TVD)
