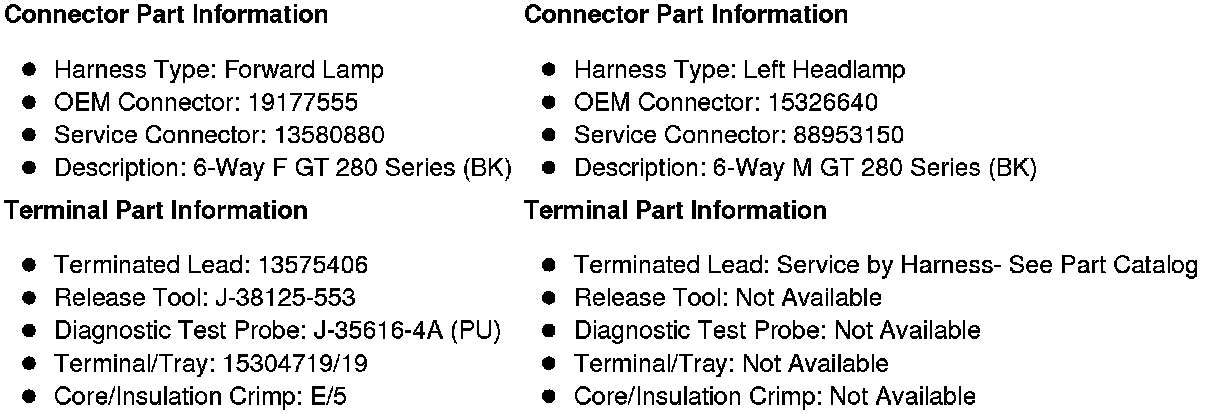

X151 Forward Lamp Harness to Left Headlamp Harness (Z88 Without TVD)

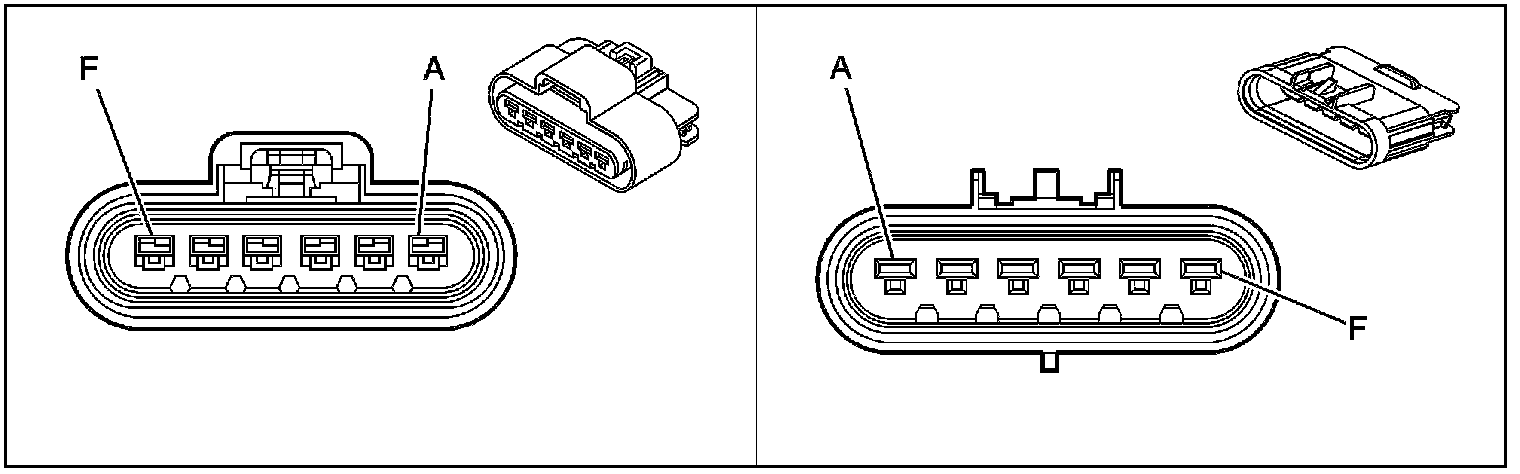

Inline Harness Connector End Views

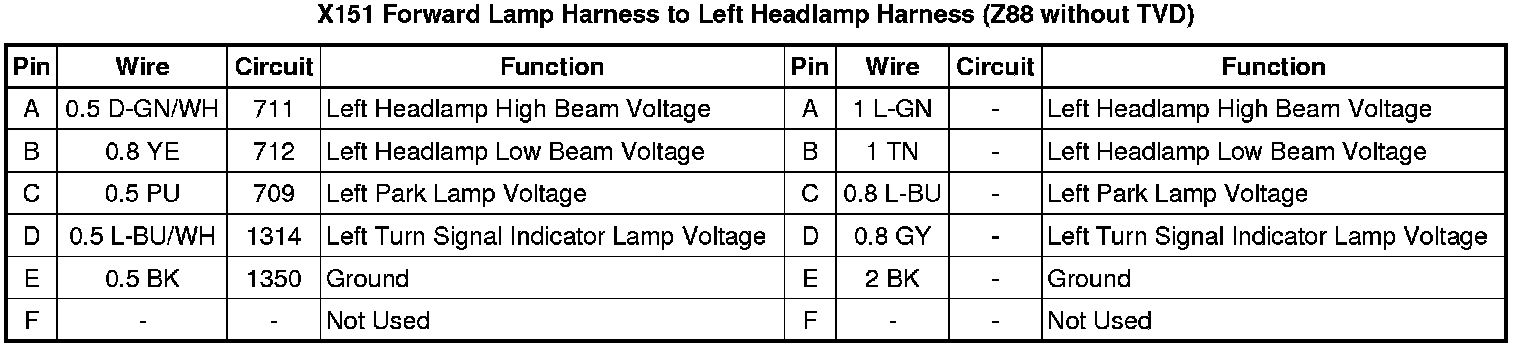

X151 Forward Lamp Harness to Left Headlamp Harness (Z88 without TVD)
