X150 Right Headlamp Harness to Forward Lamp Harness (Z88 With TVD)

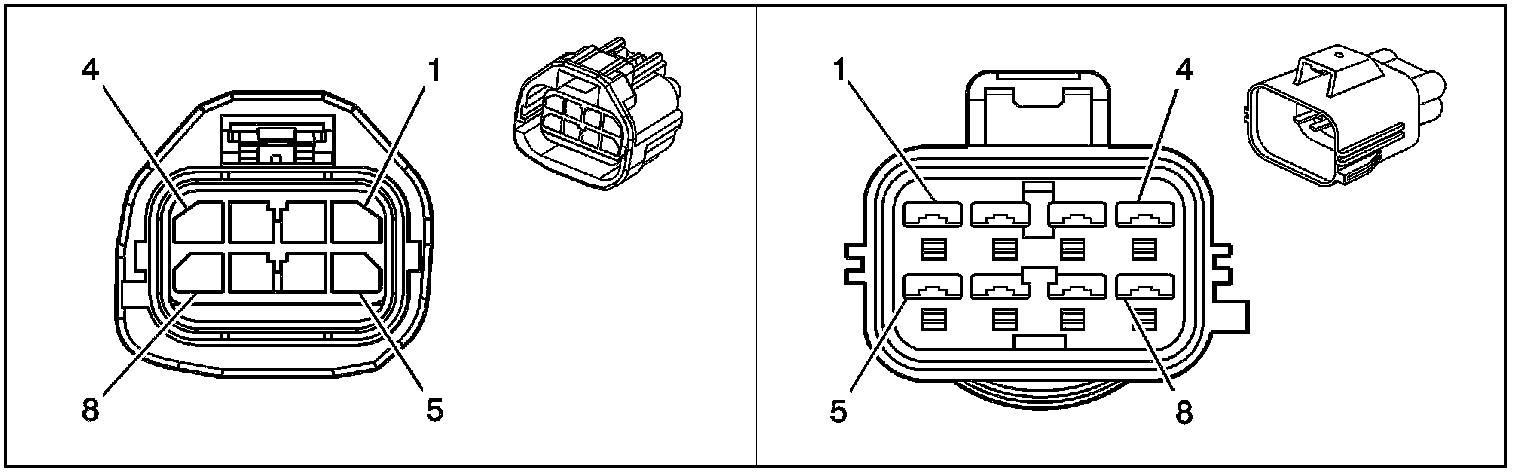

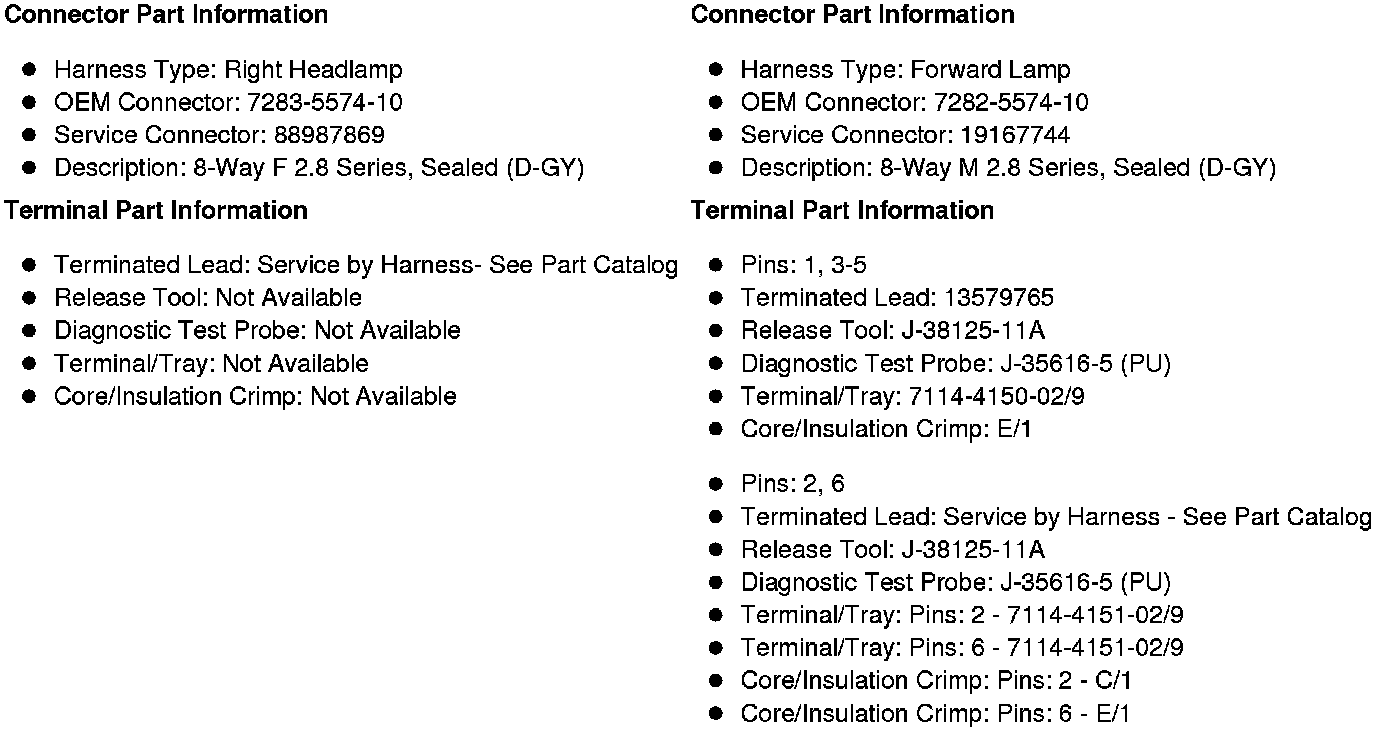

Inline Harness Connector End Views

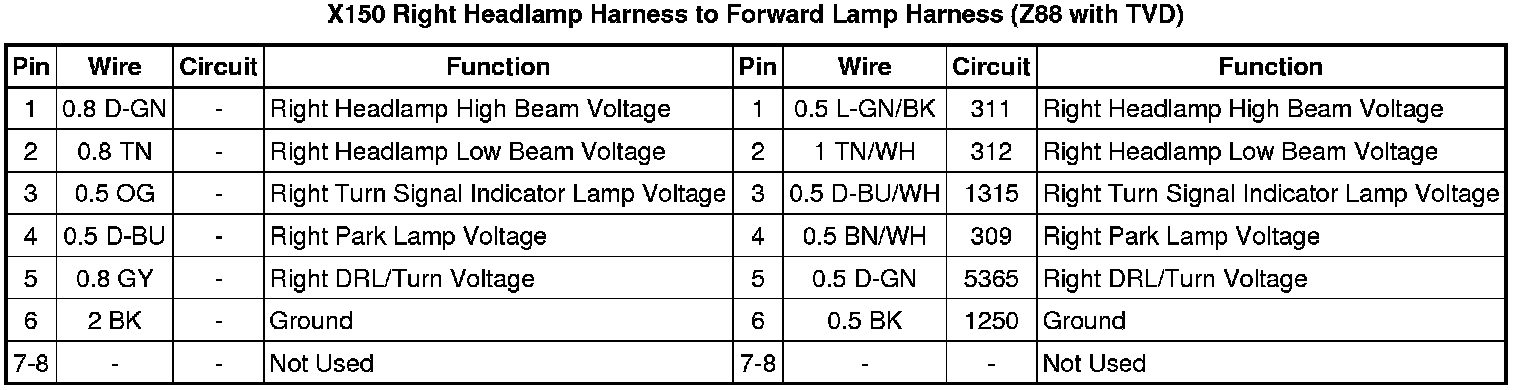

X150 Right Headlamp Harness to Forward Lamp Harness (Z88 with TVD)
