X150 Forward Lamp Harness to Right Headlamp Harness (Z88 Without TVD)

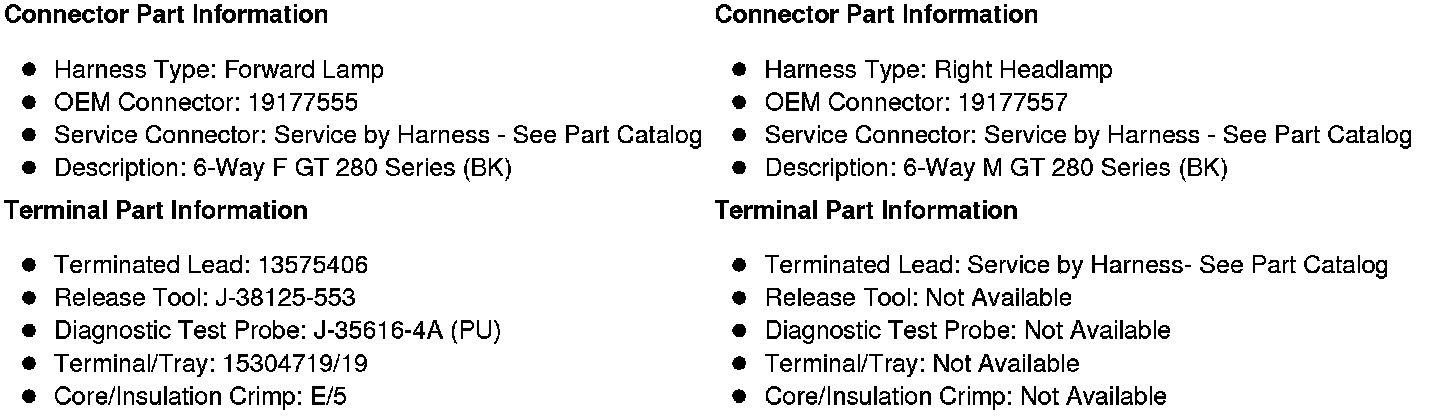

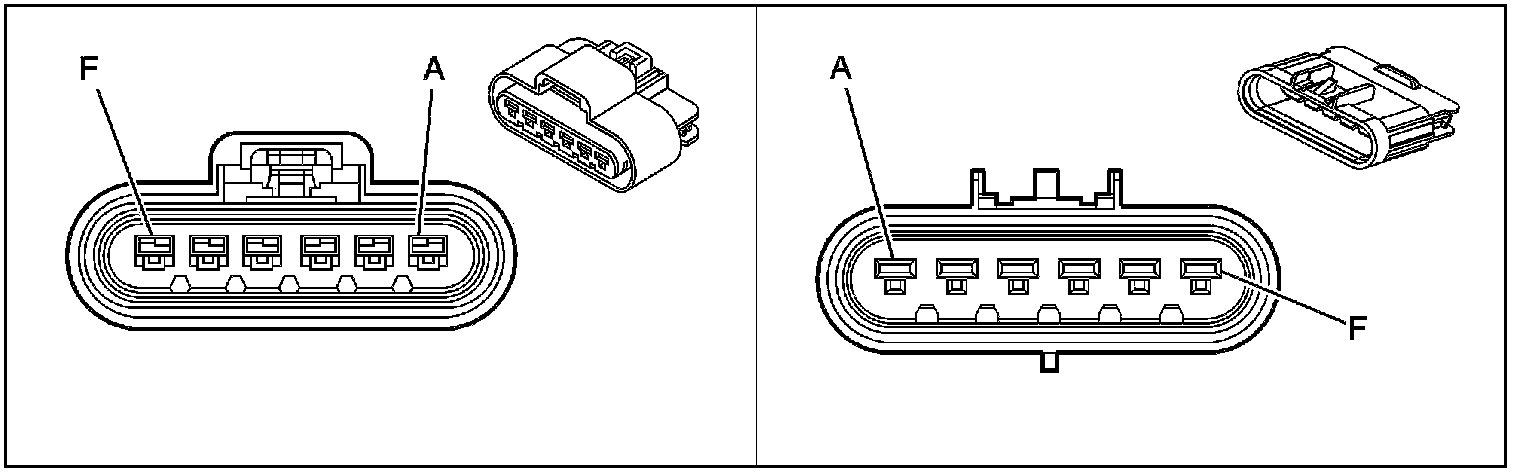

Inline Harness Connector End Views

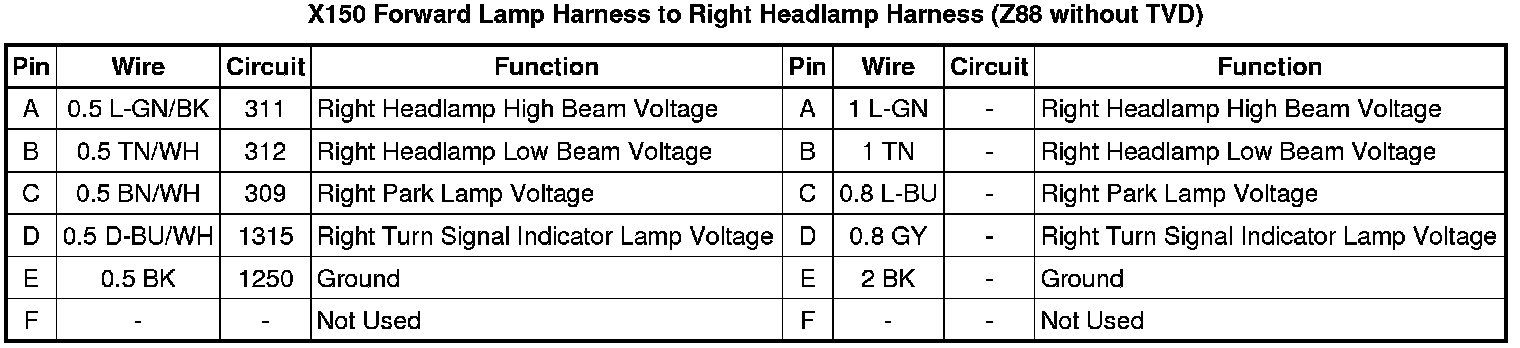

X150 Forward Lamp Harness to Right Headlamp Harness (Z88 without TVD)
