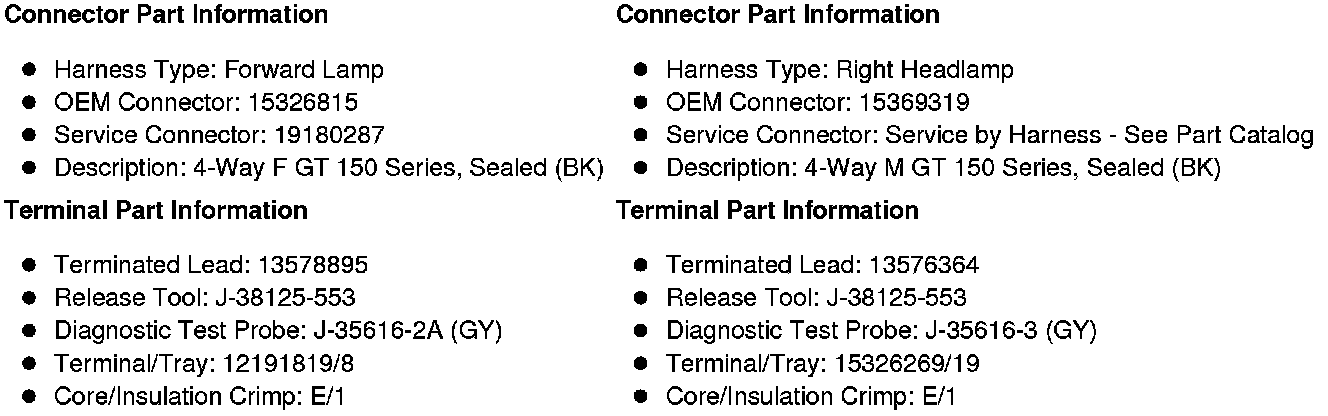

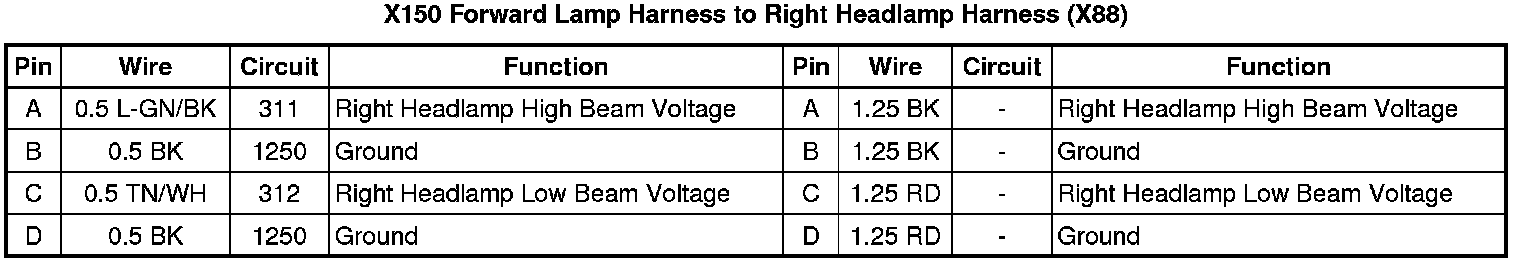

X150 Forward Lamp Harness to Right Headlamp Harness (X88)
X150 Forward Lamp Harness to Right Headlamp Harness (X88)

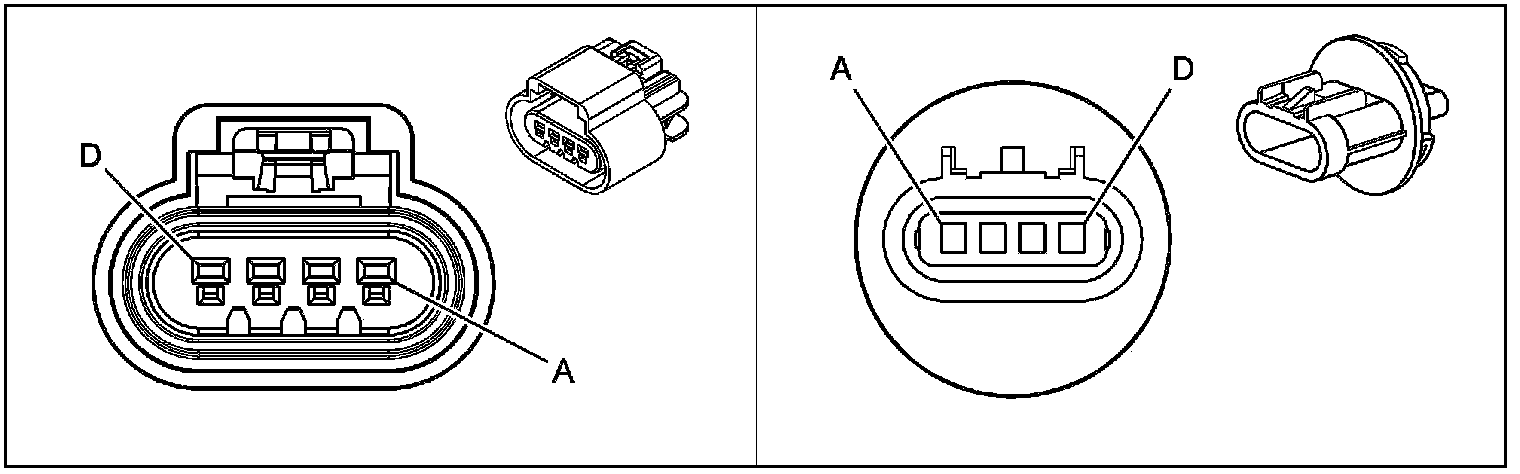

Inline Harness Connector End Views
X150 Forward Lamp Harness to Right
Headlamp
Harness (X88)
