X150 Forward Lamp Harness to Right Headlamp Harness (W49 Without TSH or T26)




Inline Harness Connector End Views

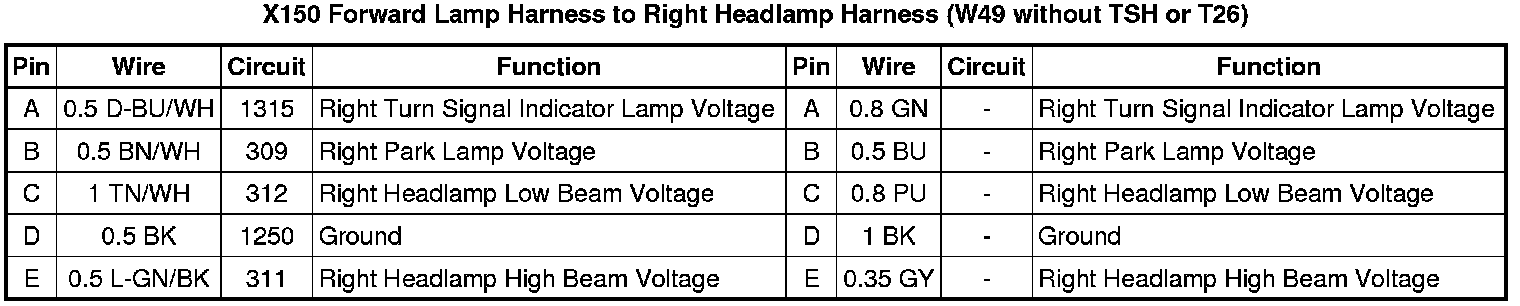

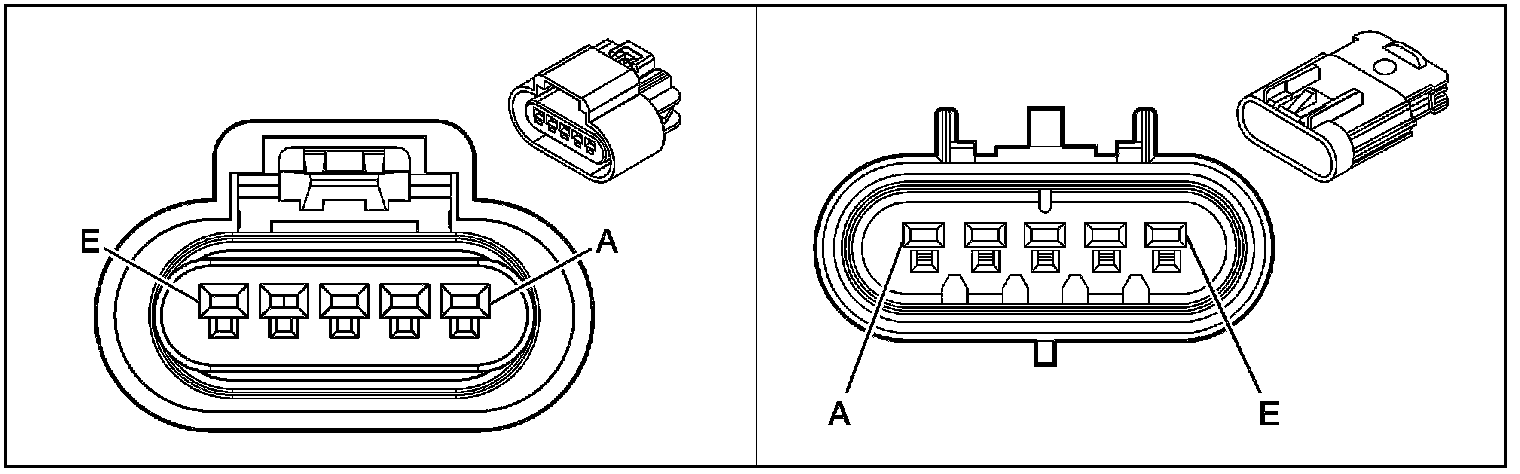

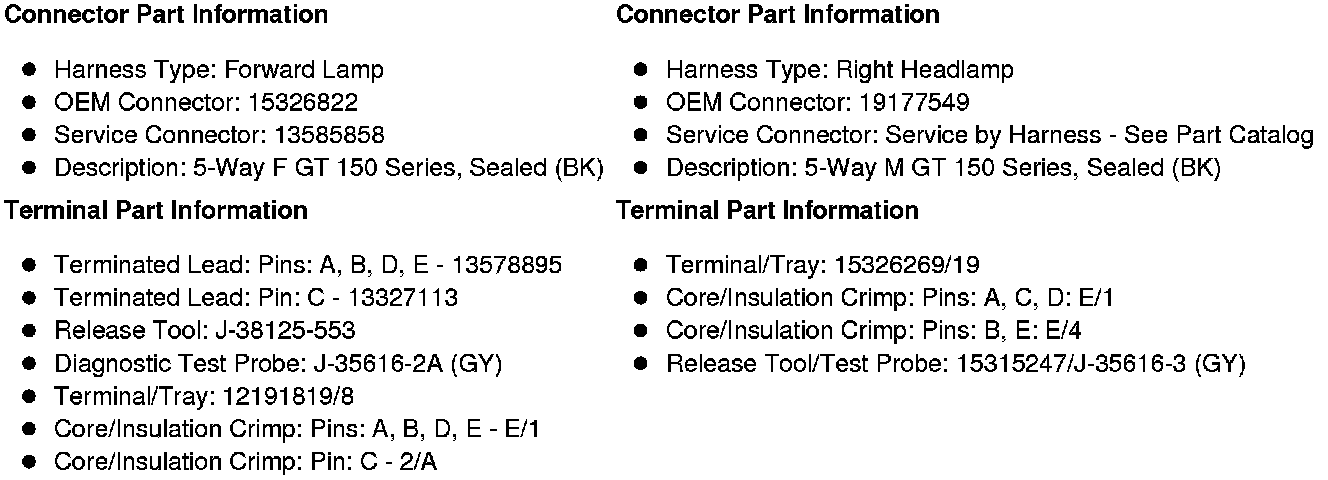

X150 Forward Lamp Harness to Right Headlamp Harness (W49 without TSH or T26)
