Driver Seat Schematics




Driver Seat Schematics

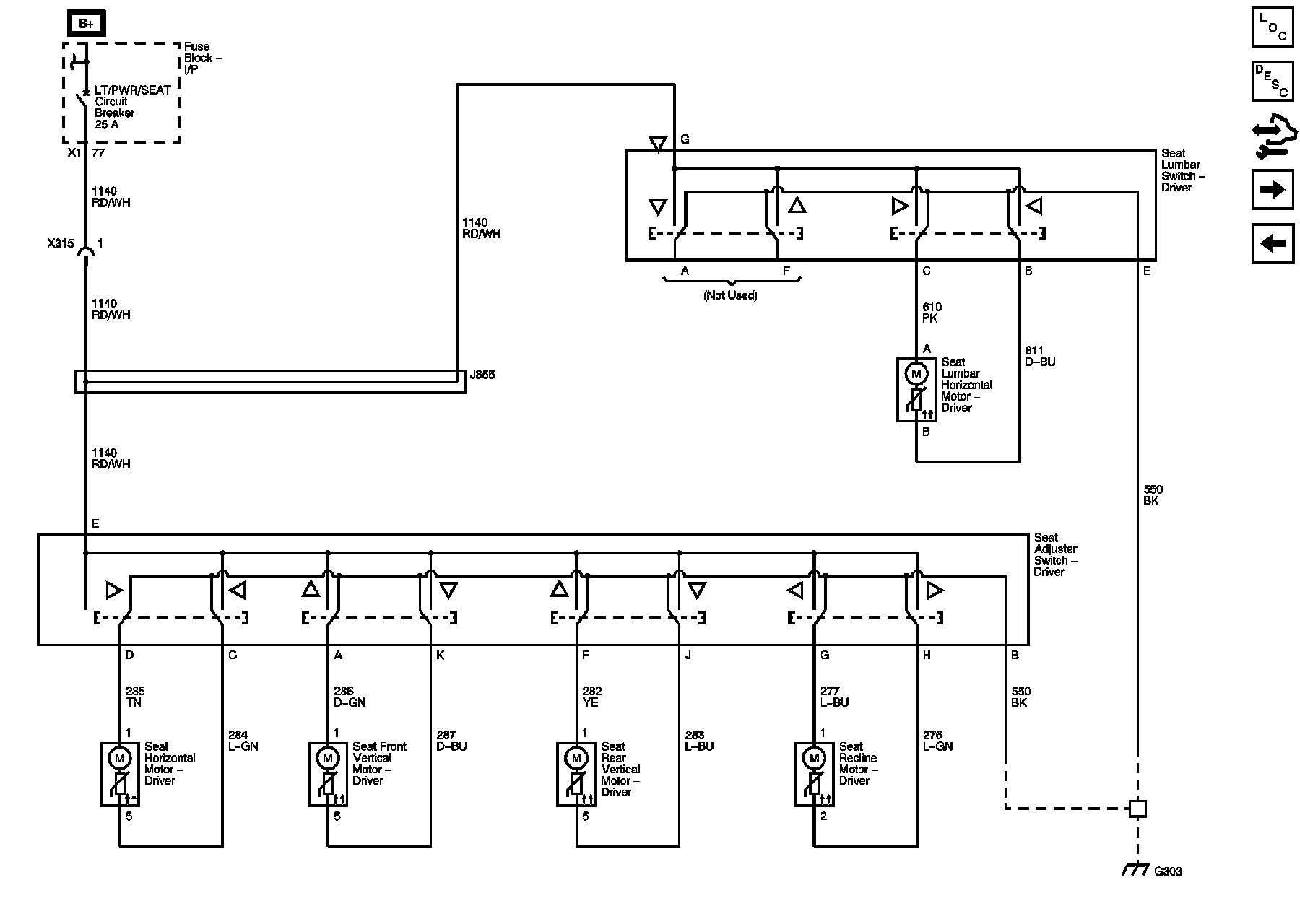

AG1

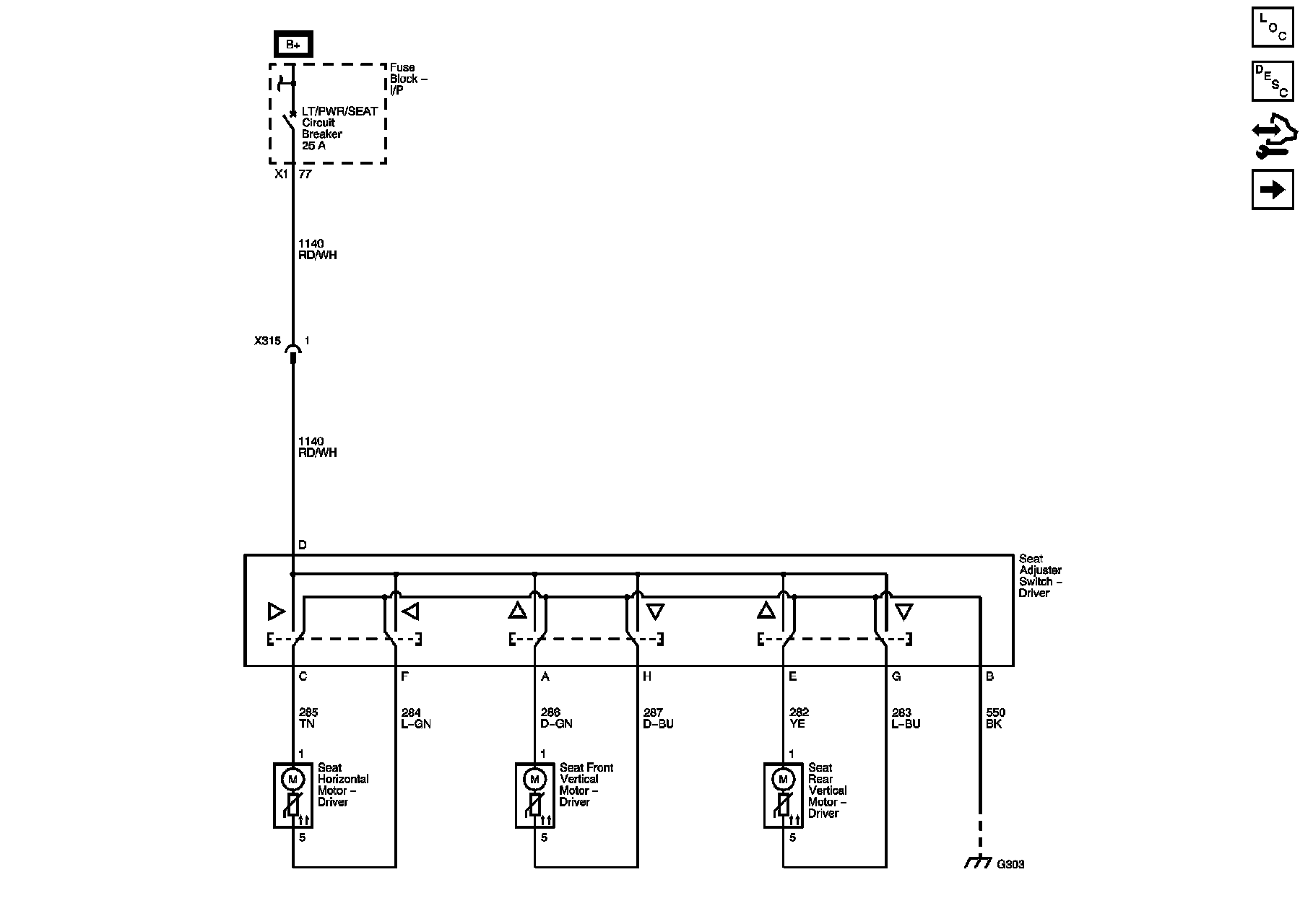

AH5






Memory Module Power and Serial Data, and Driver Switches (AG3)

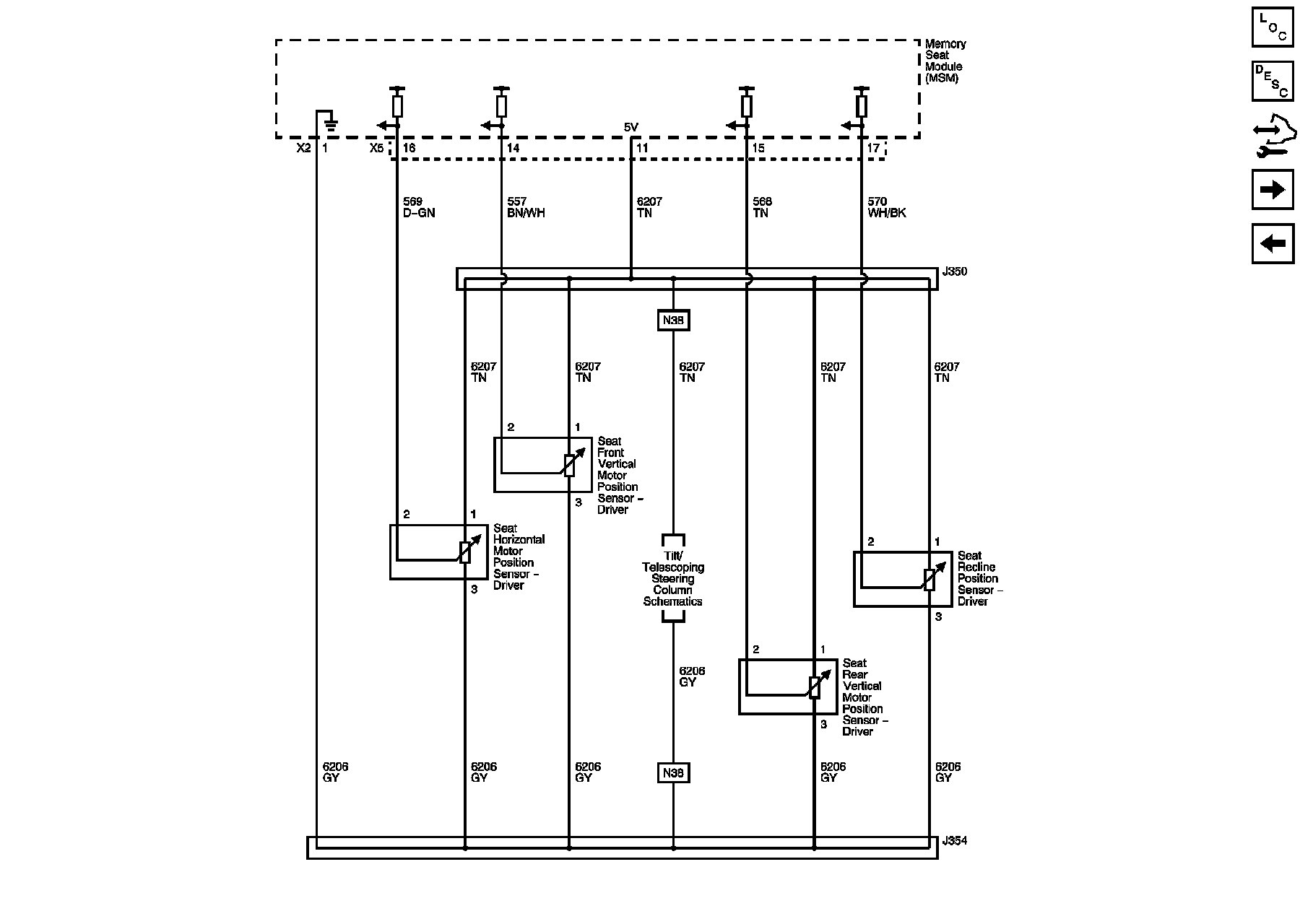

Seat Position Sensors (AG3)

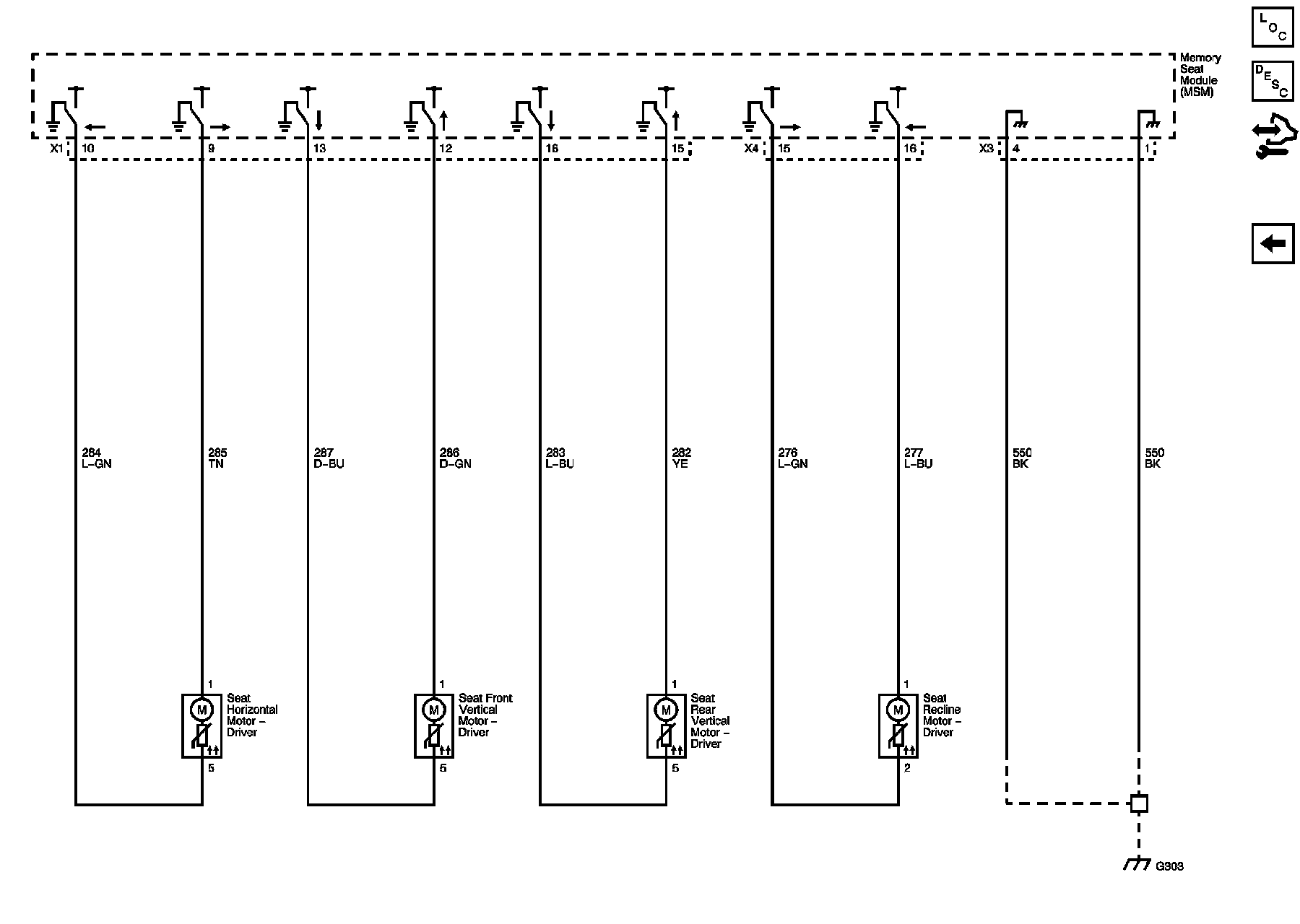

Memory Module Ground and Seat Motors (AG3)
