Outside Rearview Mirror Schematics

Outside Rearview Mirror Schematics

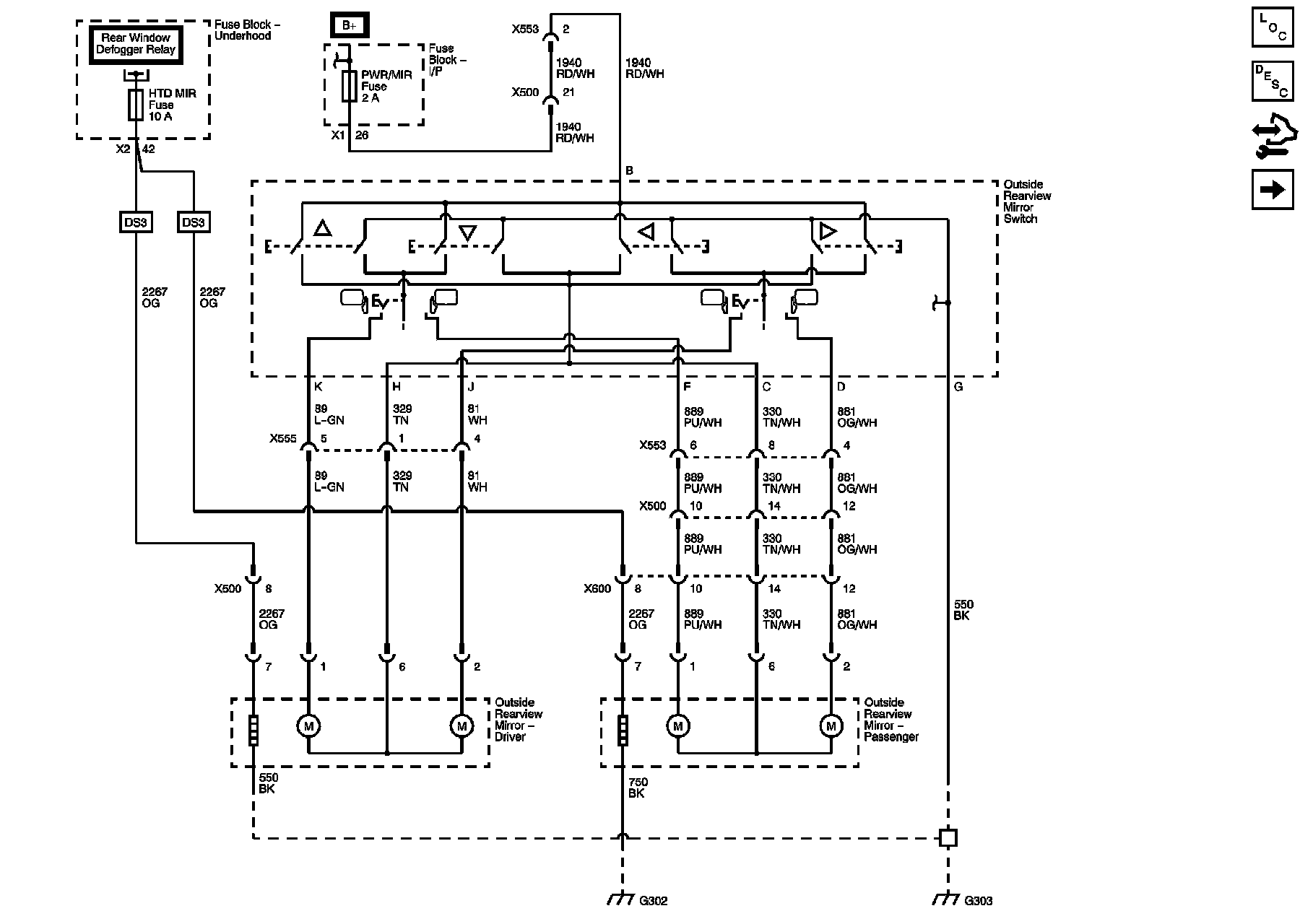

DL6 or DS3

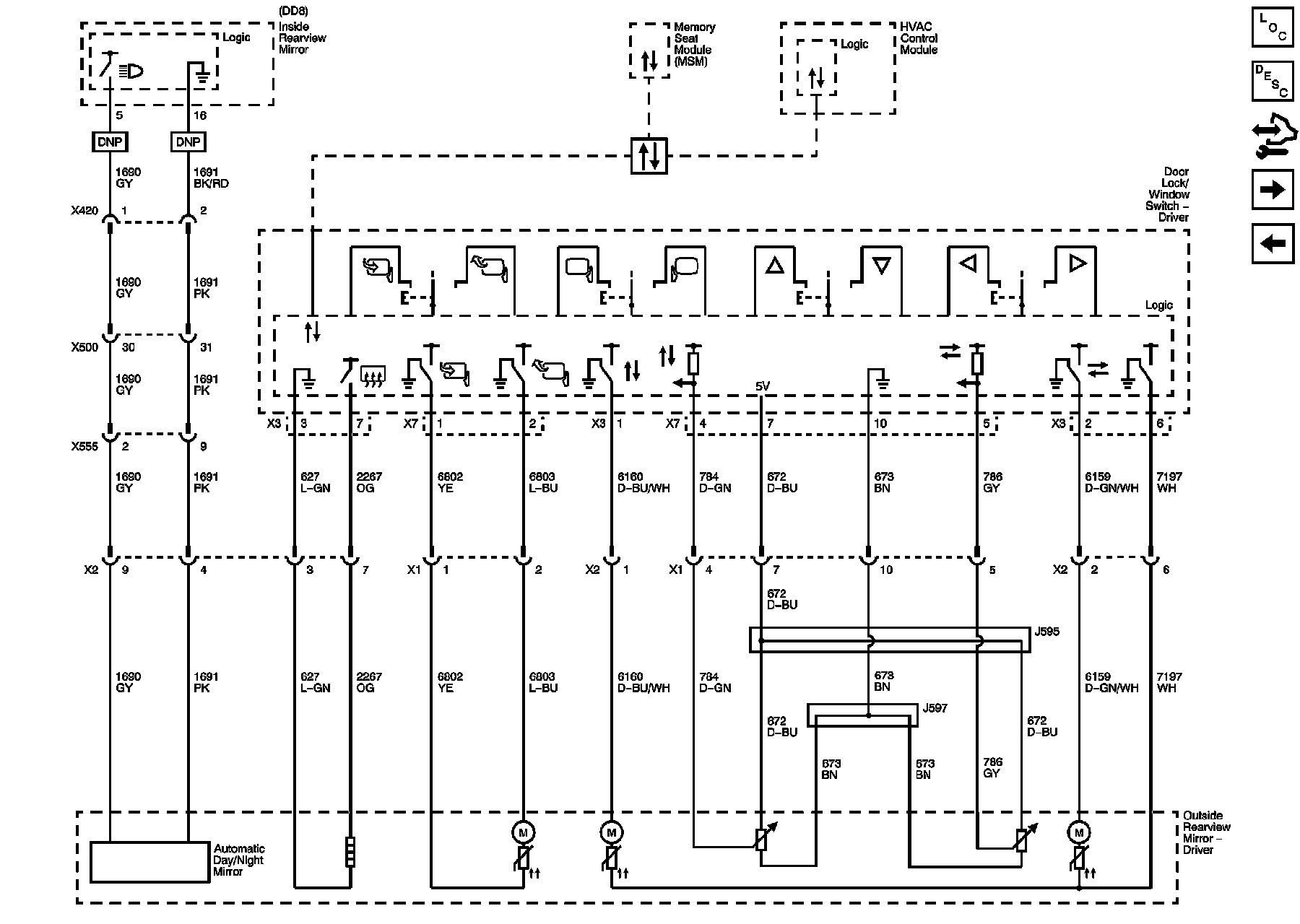

Driver (DNP)

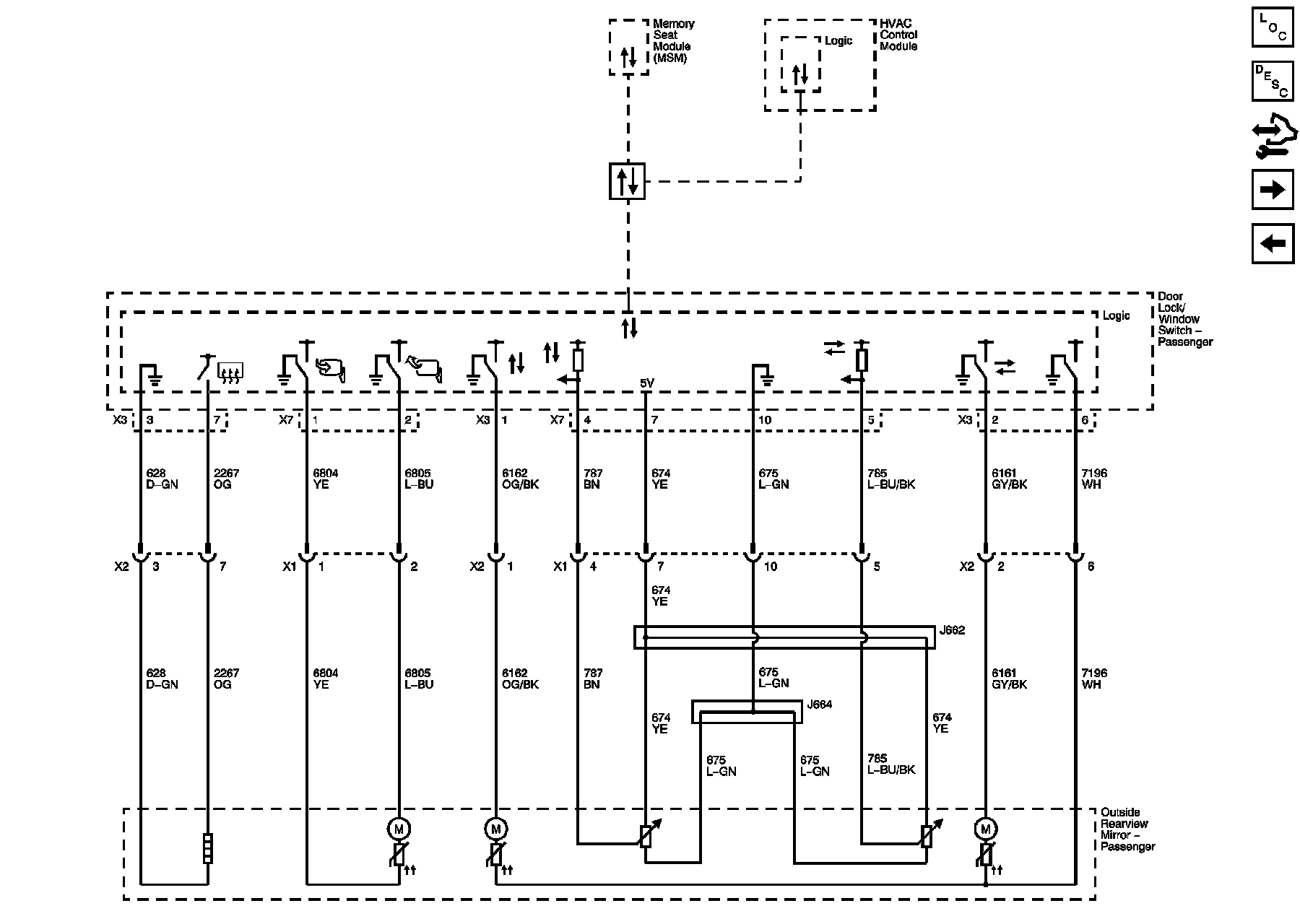

Passenger (DNP)

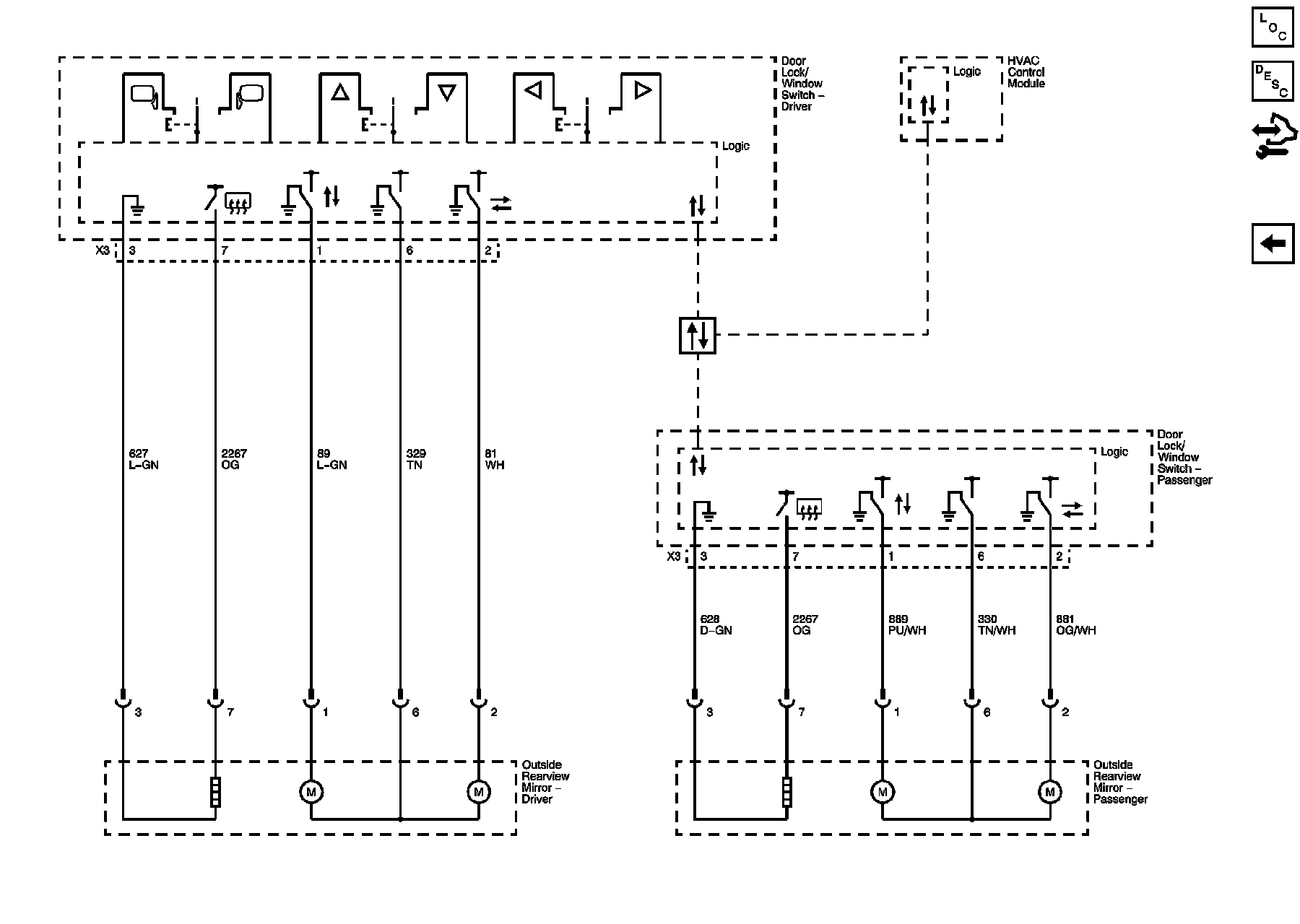

W49 with DS3
