Door Lock/Indicator Schematics




Door Lock/Indicator Schematics

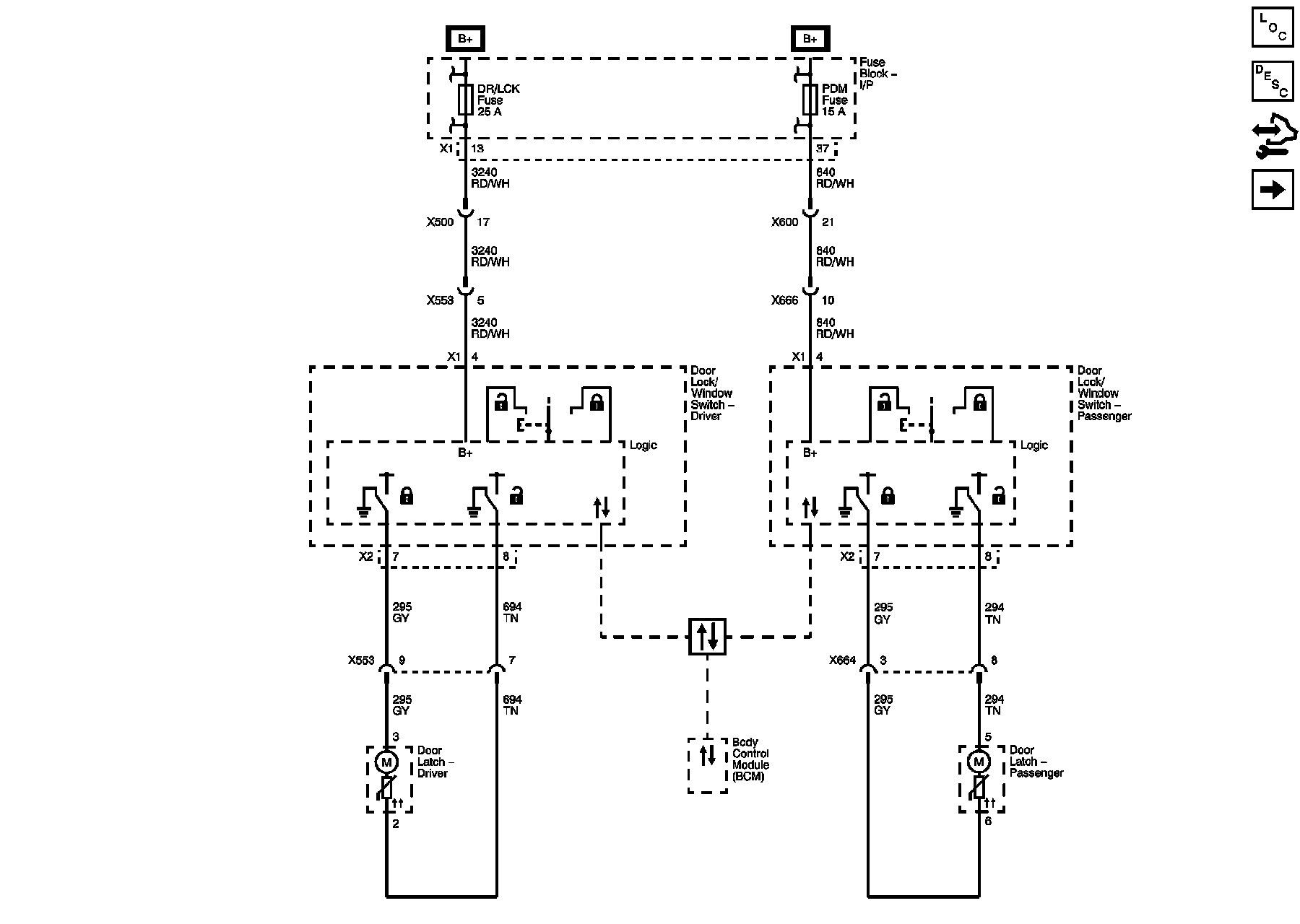

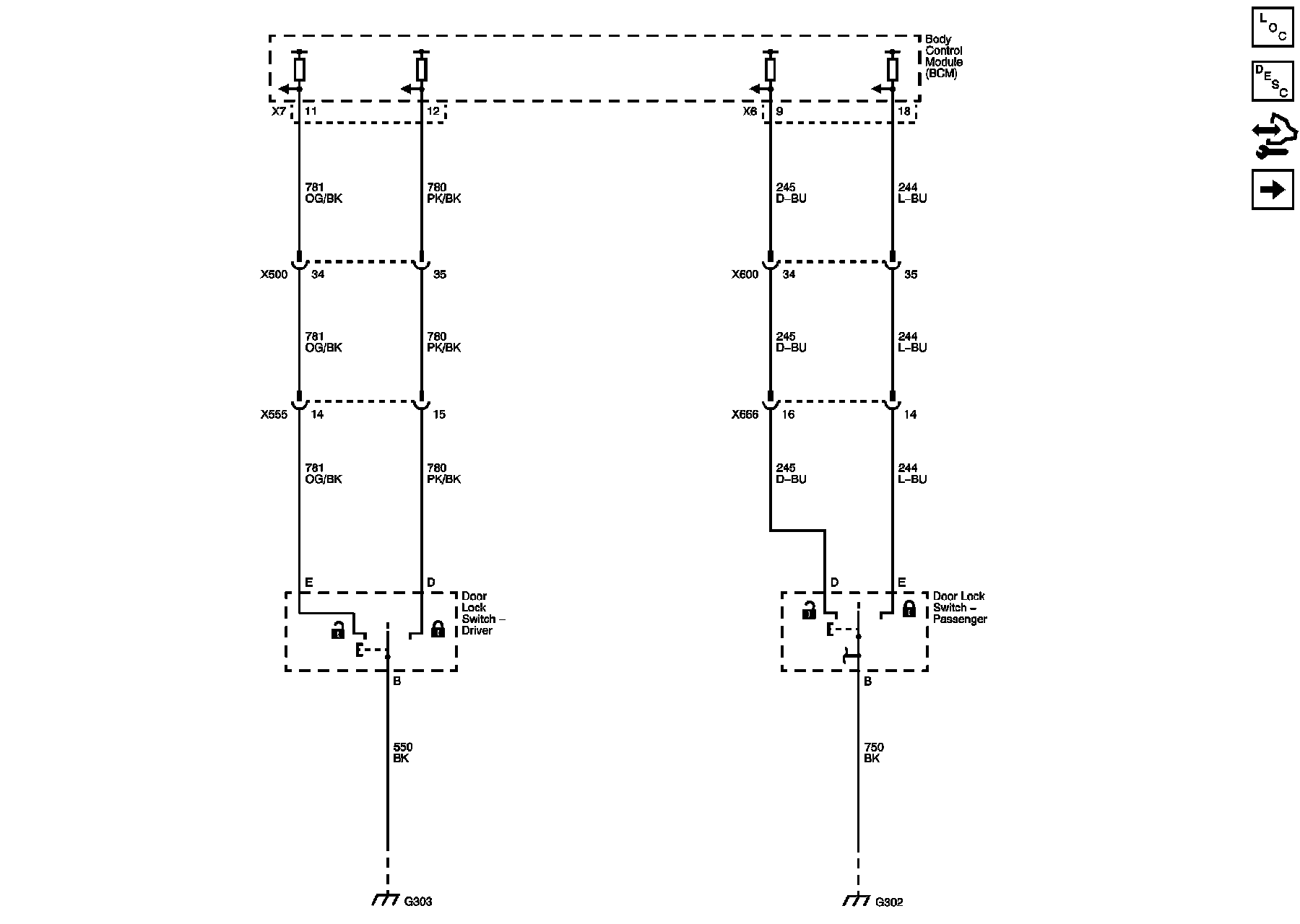

Switches

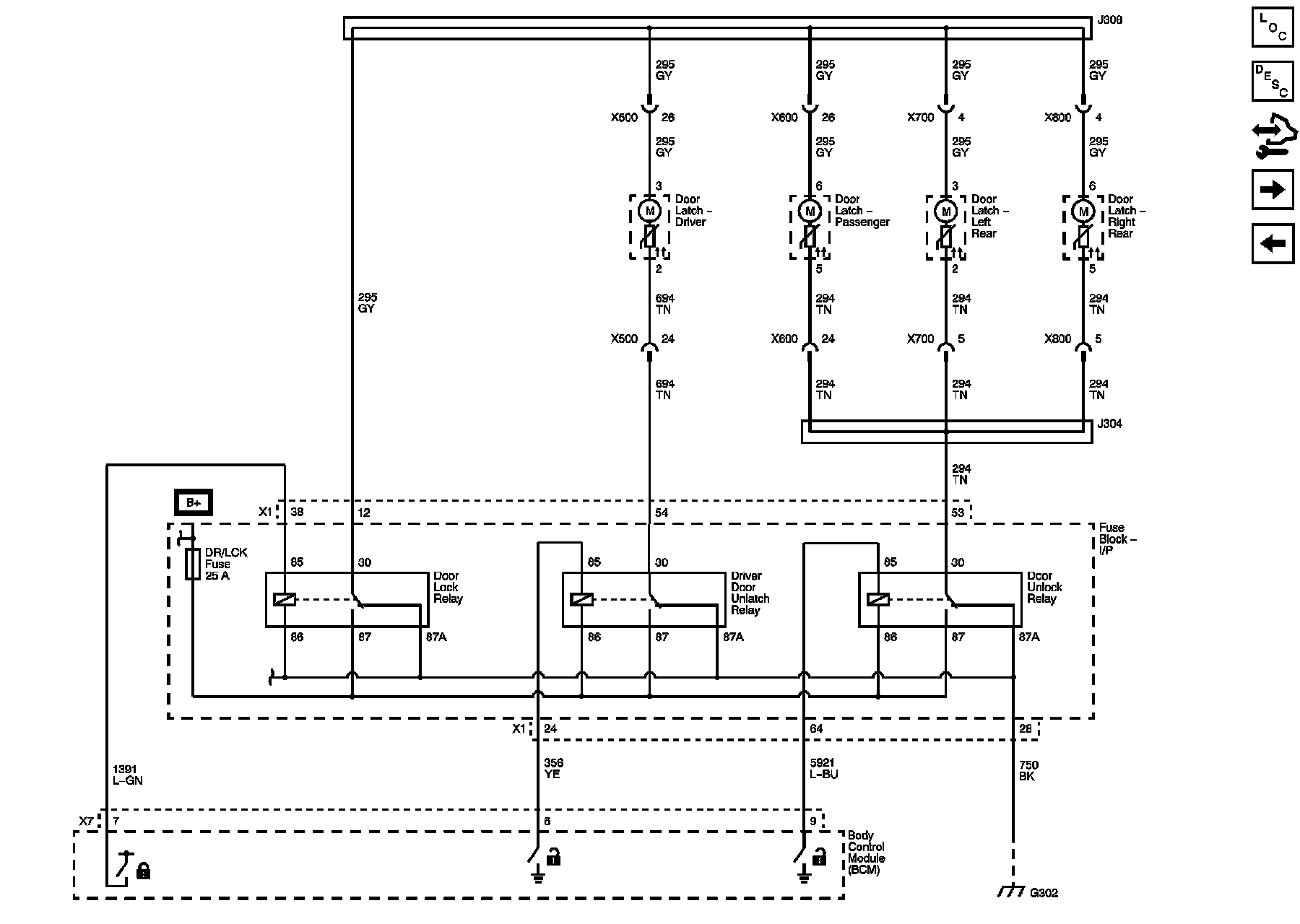

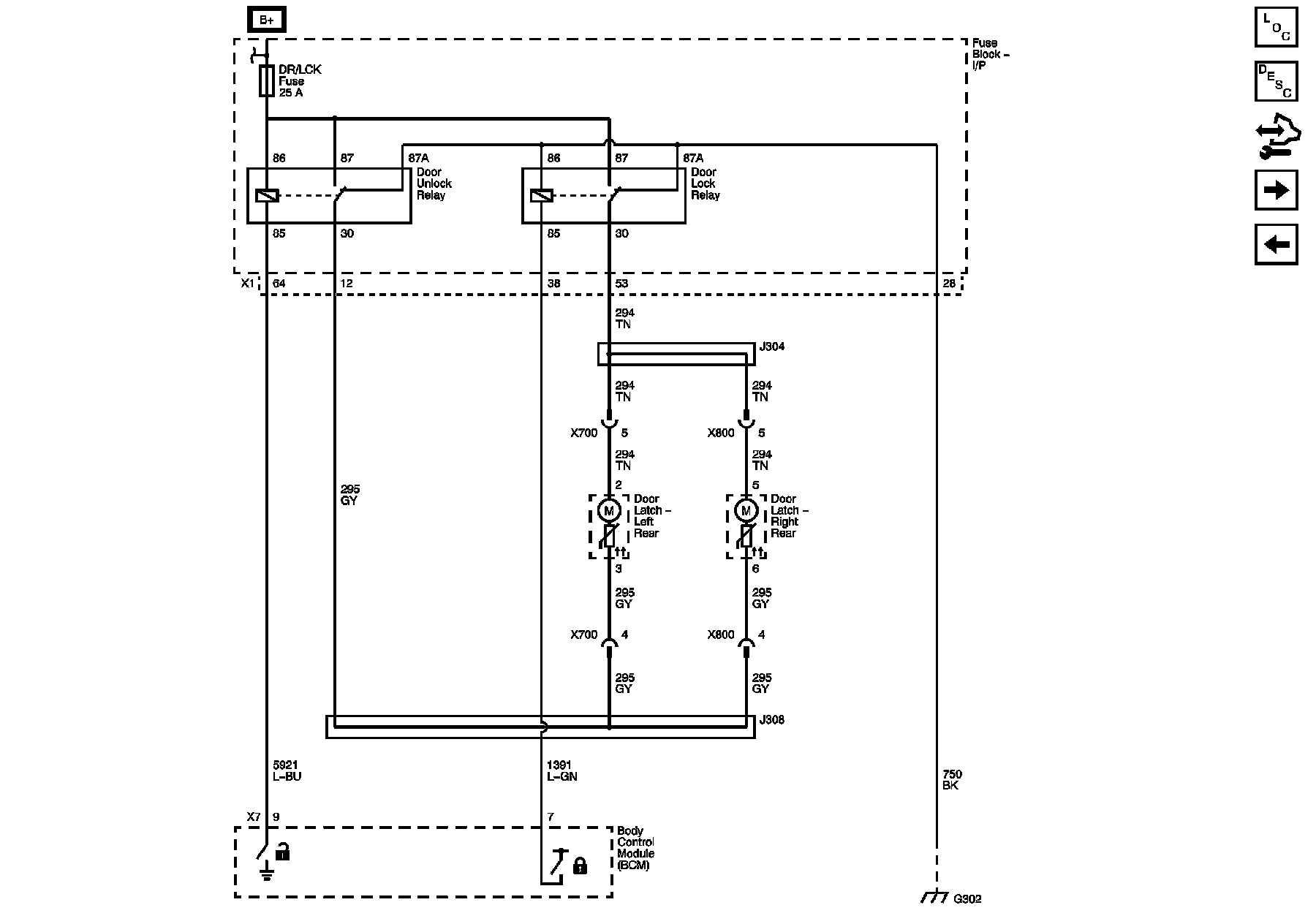

Actuators

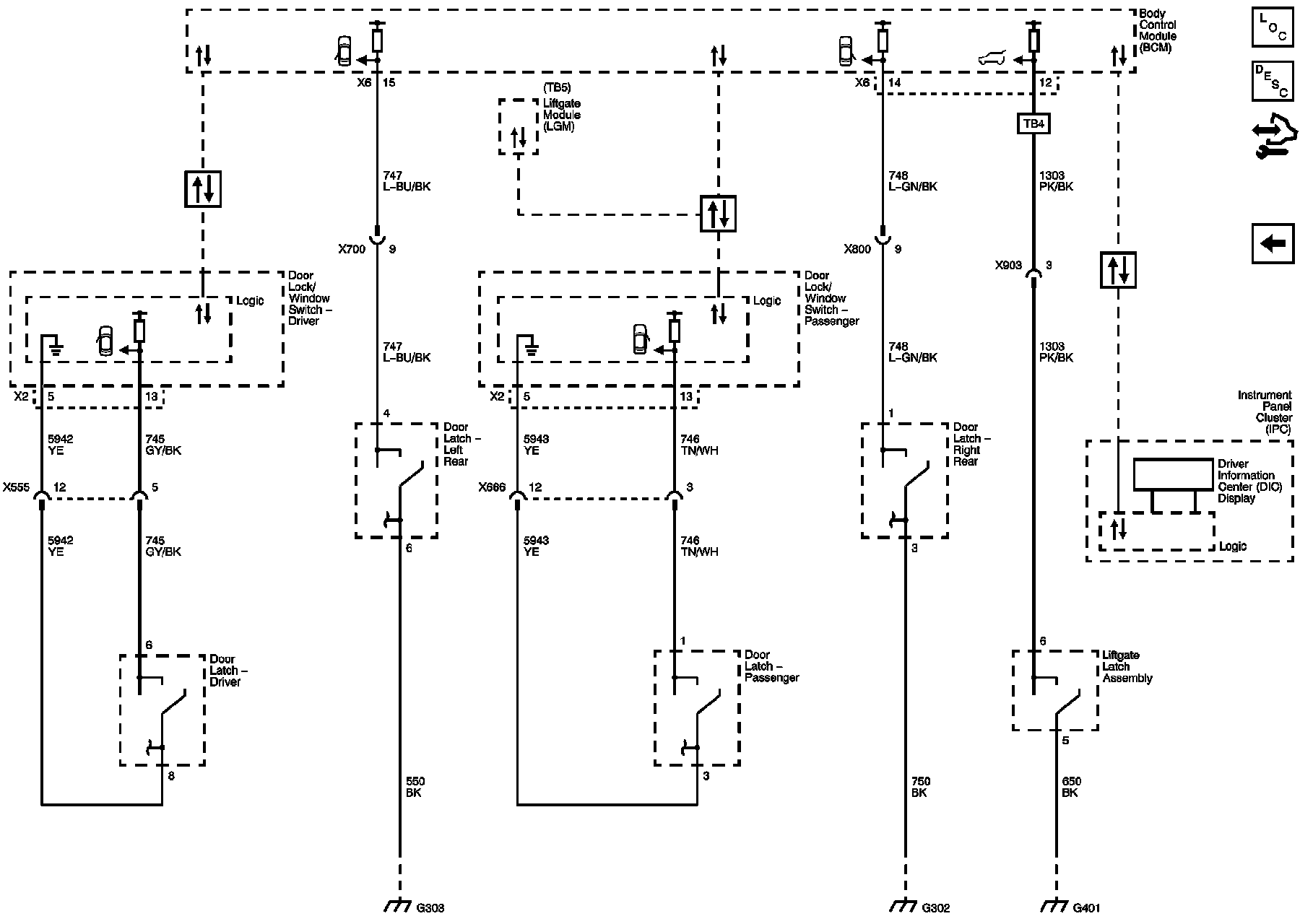

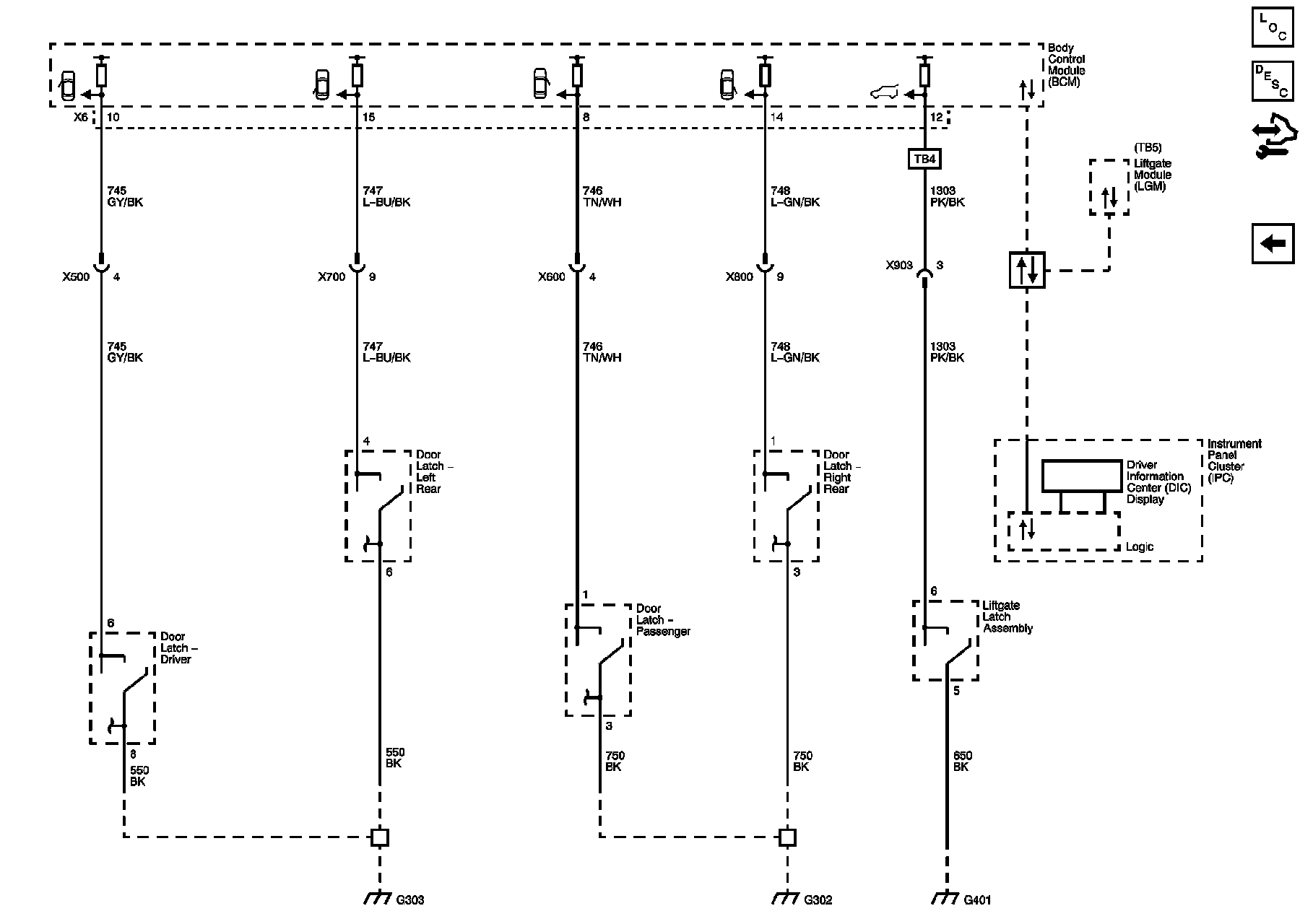

Door Ajar Indicators






Front Doors






Rear Doors






Door Ajar Indicators
