Rear Bumper Reinforcement: Service and Repair

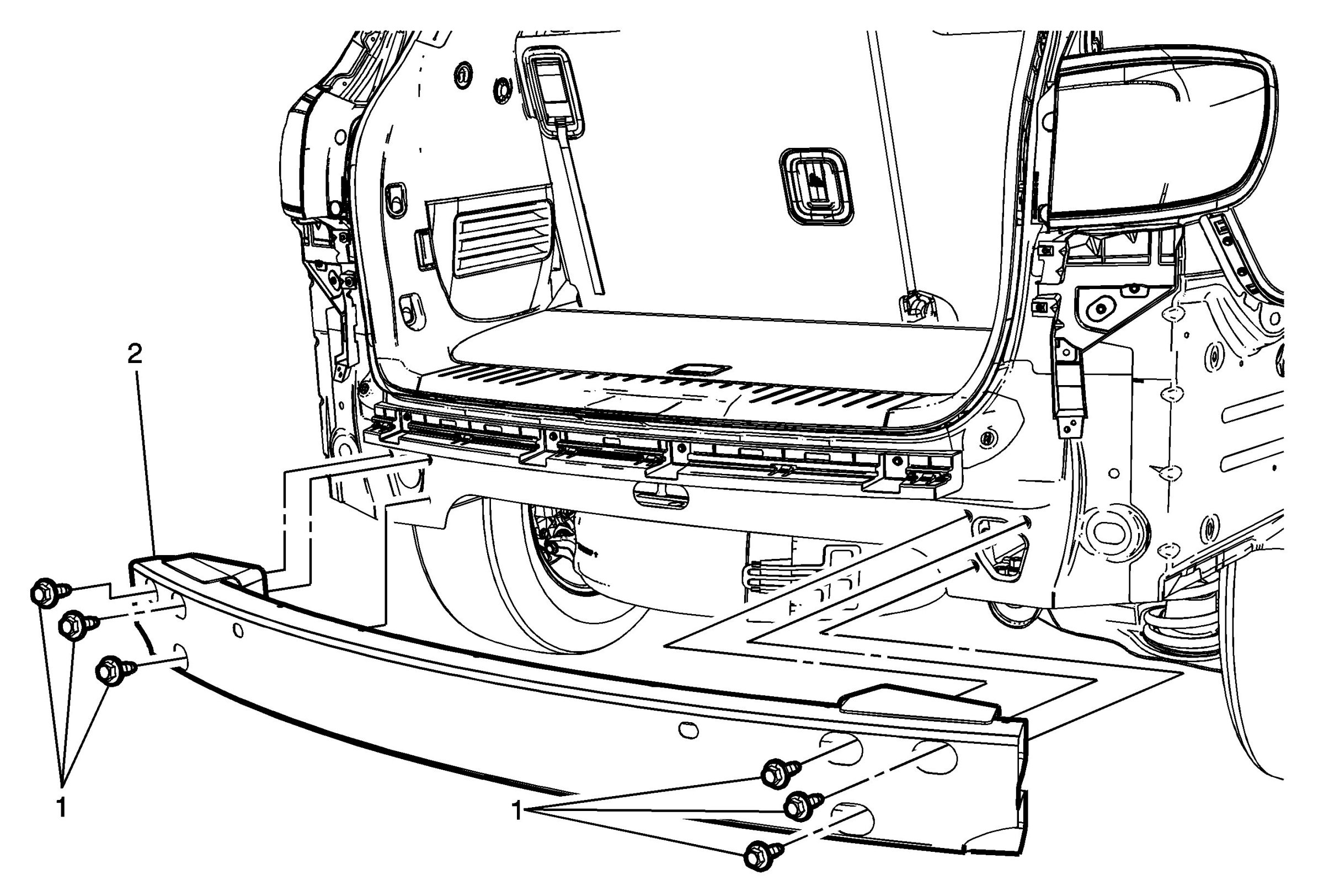

Rear Bumper Impact Bar Replacement (Acadia, Enclave, Traverse)

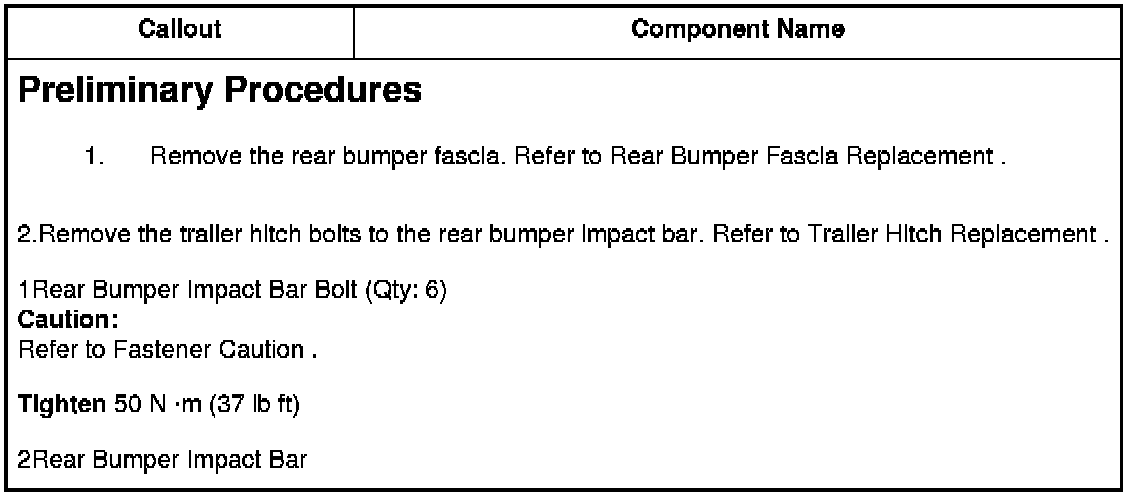

2.Remove the trailer hitch bolts to the rear bumper impact bar. Refer to Trailer Hitch Replacement Service and Repair .

1Rear Bumper Impact Bar Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 50 N �m (37 lb ft)

2Rear Bumper Impact Bar
