Rear Bumper Lower Fascia Replacement (Enclave)

Rear Bumper Lower Fascia Replacement (Enclave)

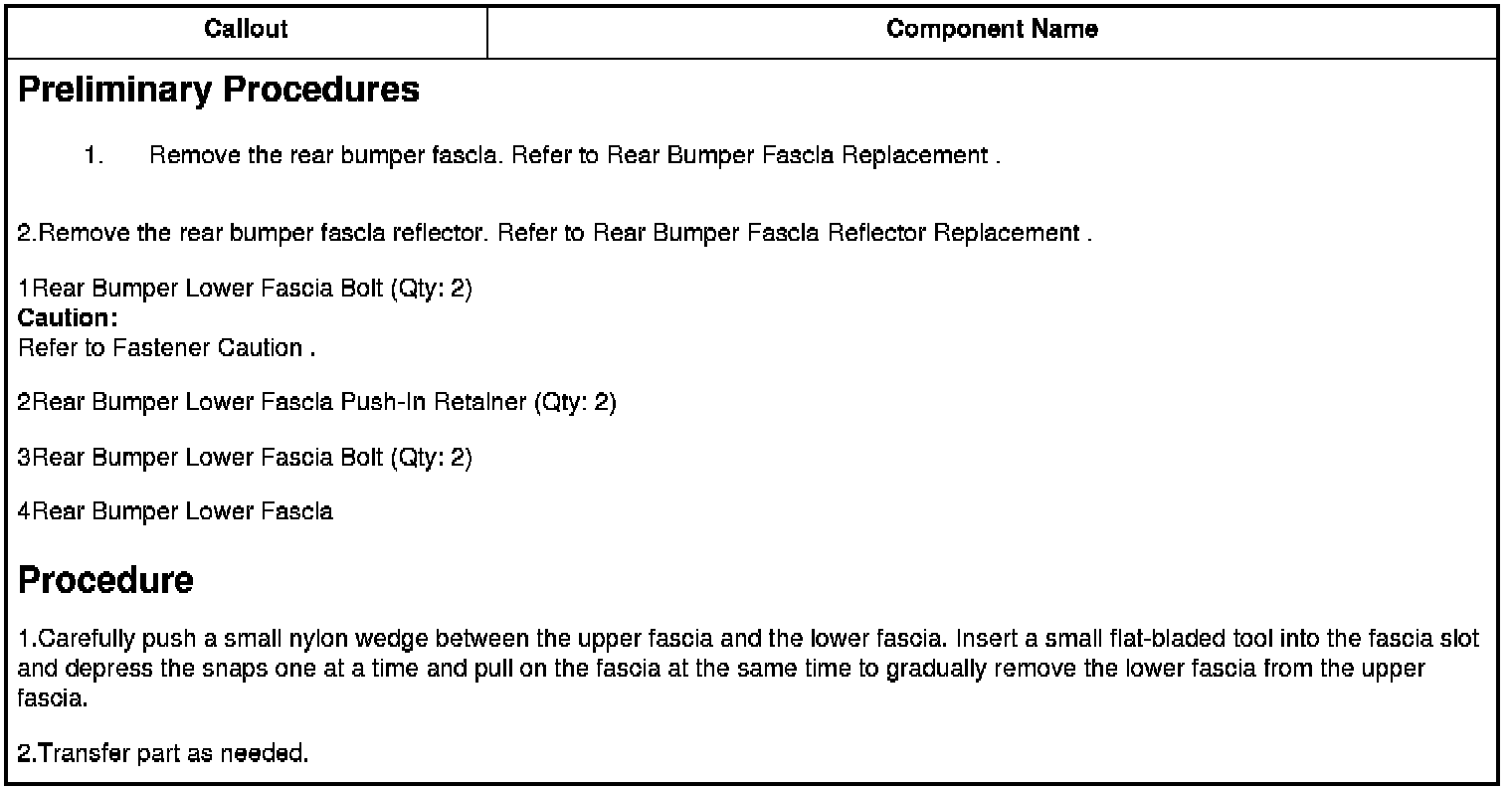

2.Remove the rear bumper fascia reflector. Refer to Rear Bumper Fascia Reflector Replacement .

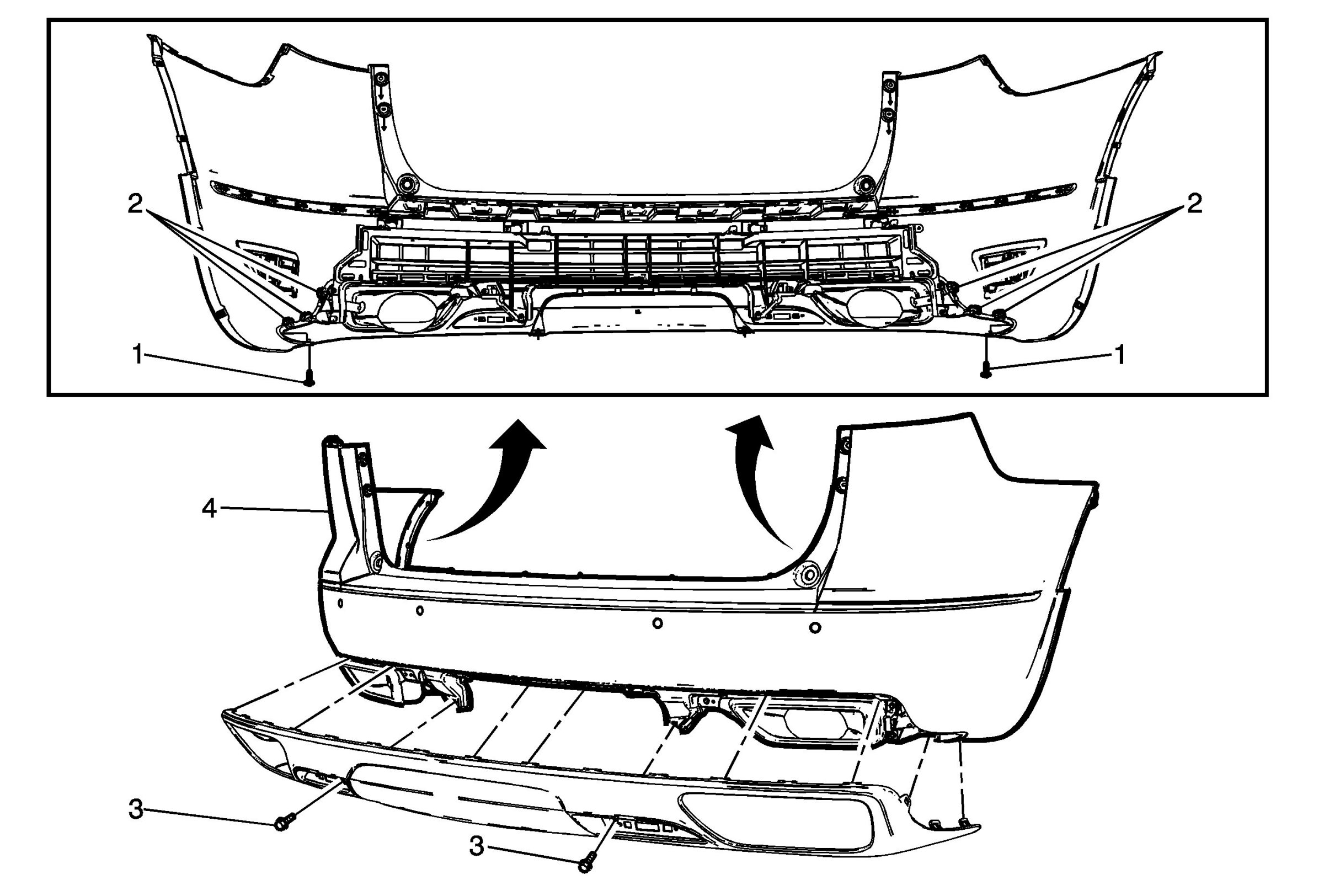

1Rear Bumper Lower Fascia Bolt (Qty: 2)
Caution:Refer to Fastener Caution .

2Rear Bumper Lower Fascia Push-In Retainer (Qty: 2)

3Rear Bumper Lower Fascia Bolt (Qty: 2)

4Rear Bumper Lower Fascia

Procedure

1.Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia.

2.Transfer part as needed.
