Rear Bumper Fascia Replacement (Enclave)

Rear Bumper Fascia Replacement (Enclave)

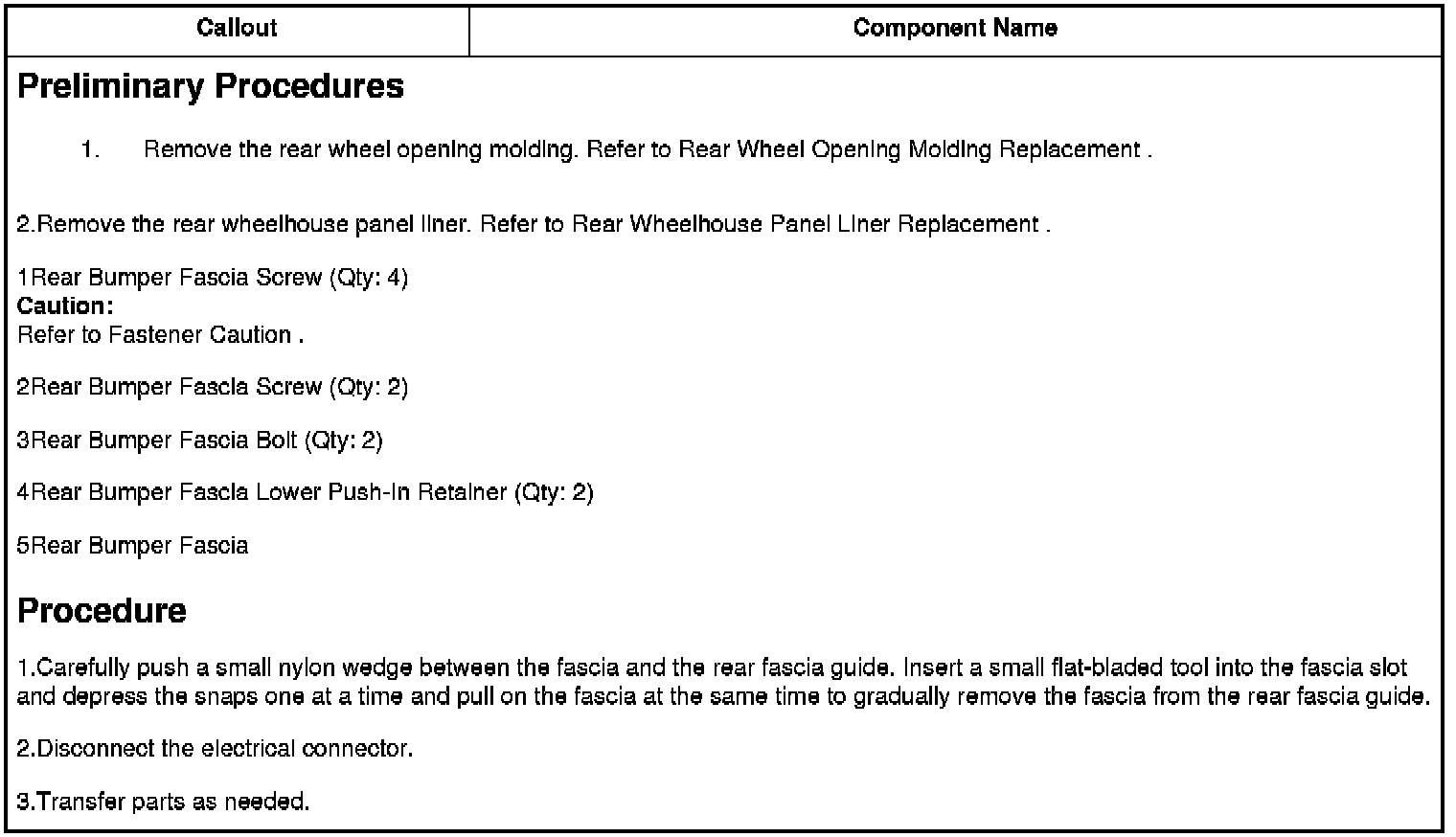

2.Remove the rear wheelhouse panel liner. Refer to Rear Wheelhouse Panel Liner Replacement .

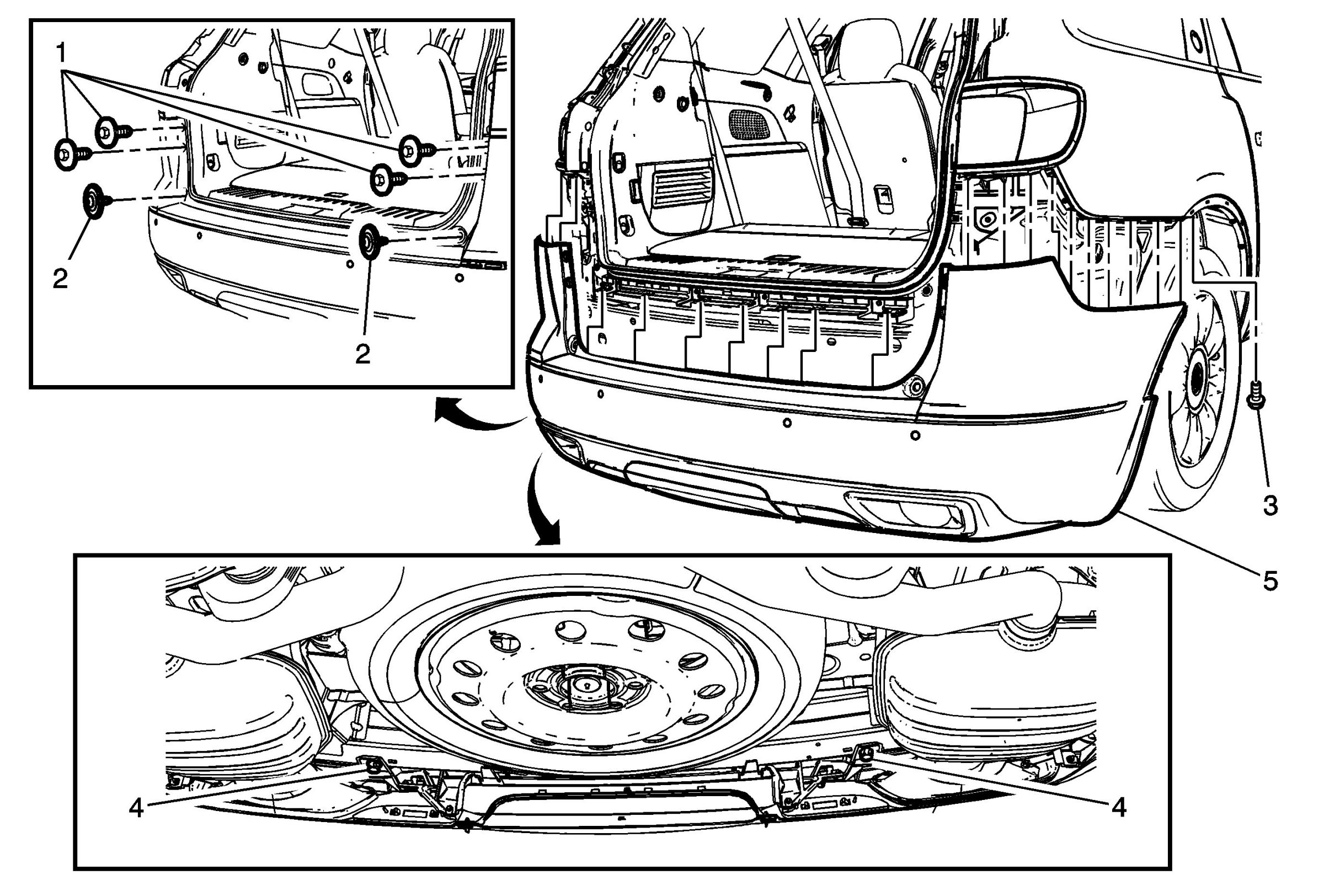

1Rear Bumper Fascia Screw (Qty: 4)
Caution:Refer to Fastener Caution .

2Rear Bumper Fascia Screw (Qty: 2)

3Rear Bumper Fascia Bolt (Qty: 2)

4Rear Bumper Fascia Lower Push-In Retainer (Qty: 2)

5Rear Bumper Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the rear fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the rear fascia guide.

2.Disconnect the electrical connector.

3.Transfer parts as needed.
