Home >> Chevy Truck >> 2013 >> Traverse AWD V6-3.6L >> Repair and Diagnosis >> Body and Frame >> Bumper >> Rear Bumper >> Rear Bumper Cover / Fascia >> Service and Repair >> Rear Bumper Fascia Energy Absorber Replacement (Acadia and Traverse)

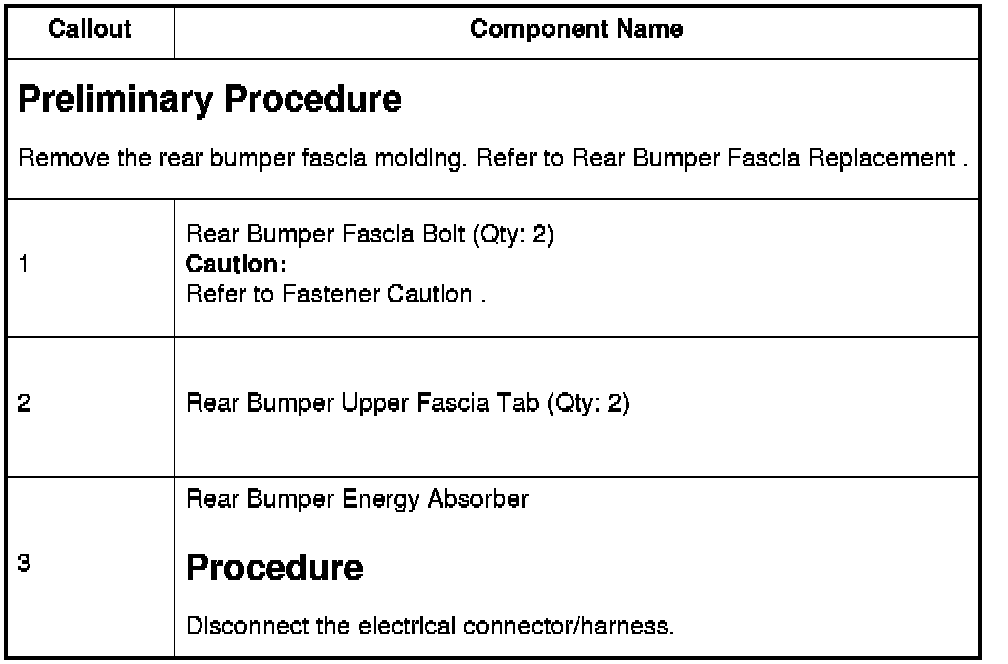

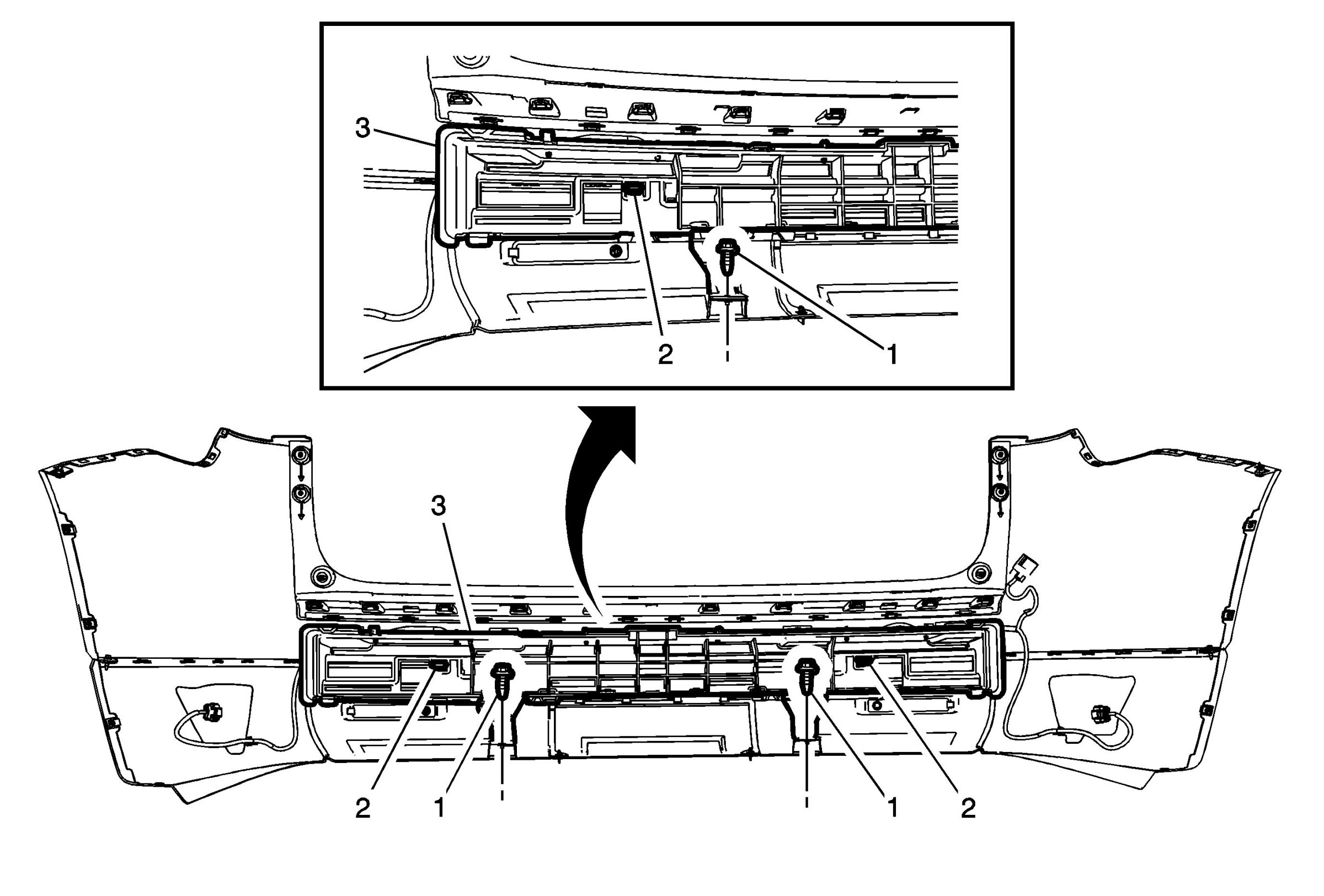

Rear Bumper Fascia Energy Absorber Replacement (Acadia and Traverse)






Rear Bumper Fascia Energy Absorber Replacement (Acadia and Traverse)
