Front Bumper Fascia Upper Support Replacement (Acadia, Enclave, Traverse)

Front Bumper Fascia Upper Support Replacement (Acadia, Enclave, Traverse)

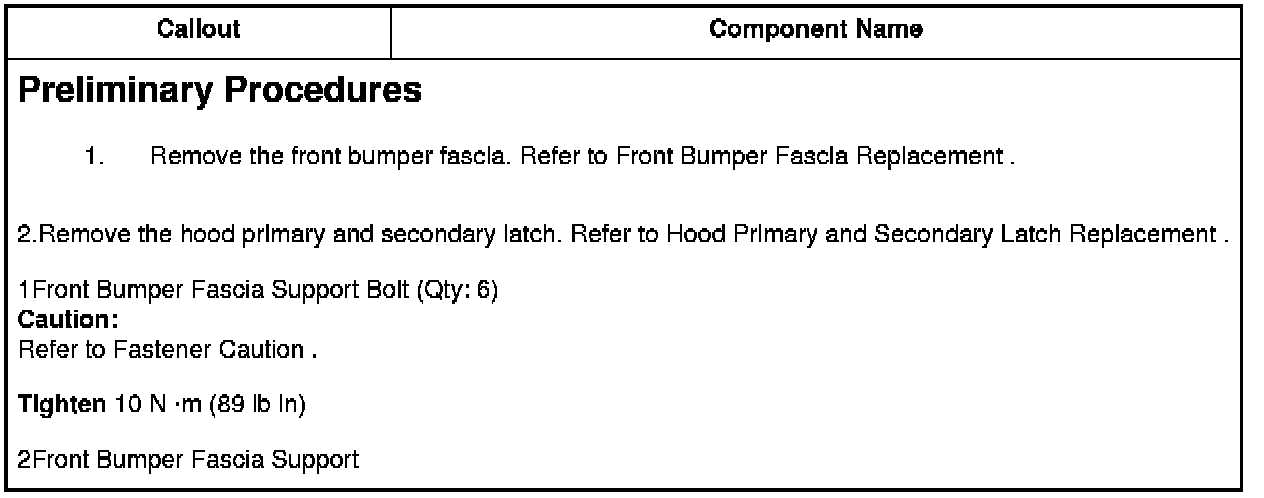

2.Remove the hood primary and secondary latch. Refer to Hood Primary and Secondary Latch Replacement .

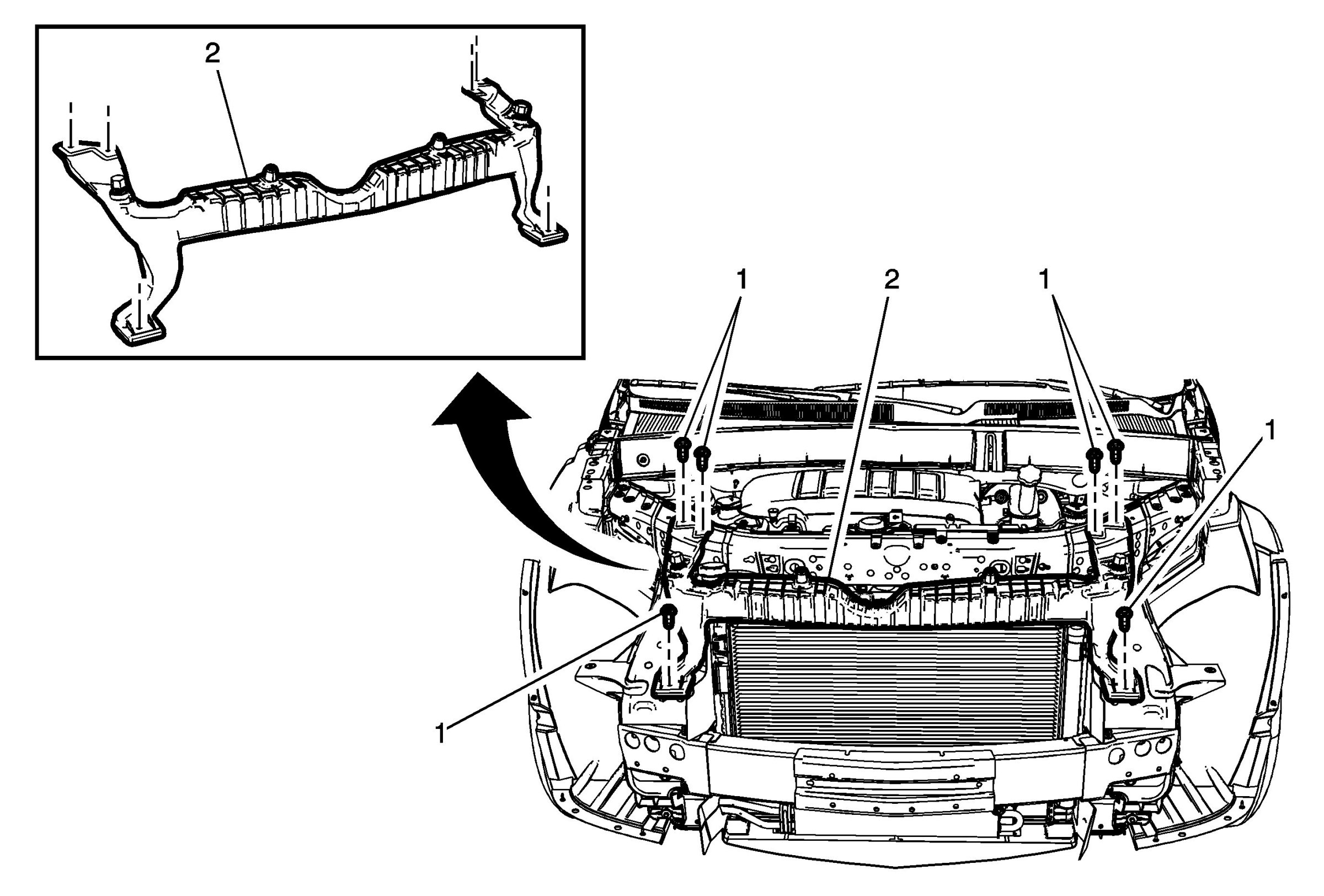

1Front Bumper Fascia Support Bolt (Qty: 6)
Caution:Refer to Fastener Caution .
Tighten 10 N �m (89 lb in)

2Front Bumper Fascia Support
