Front Bumper Fascia Replacement (Enclave)

Front Bumper Fascia Replacement (Enclave)

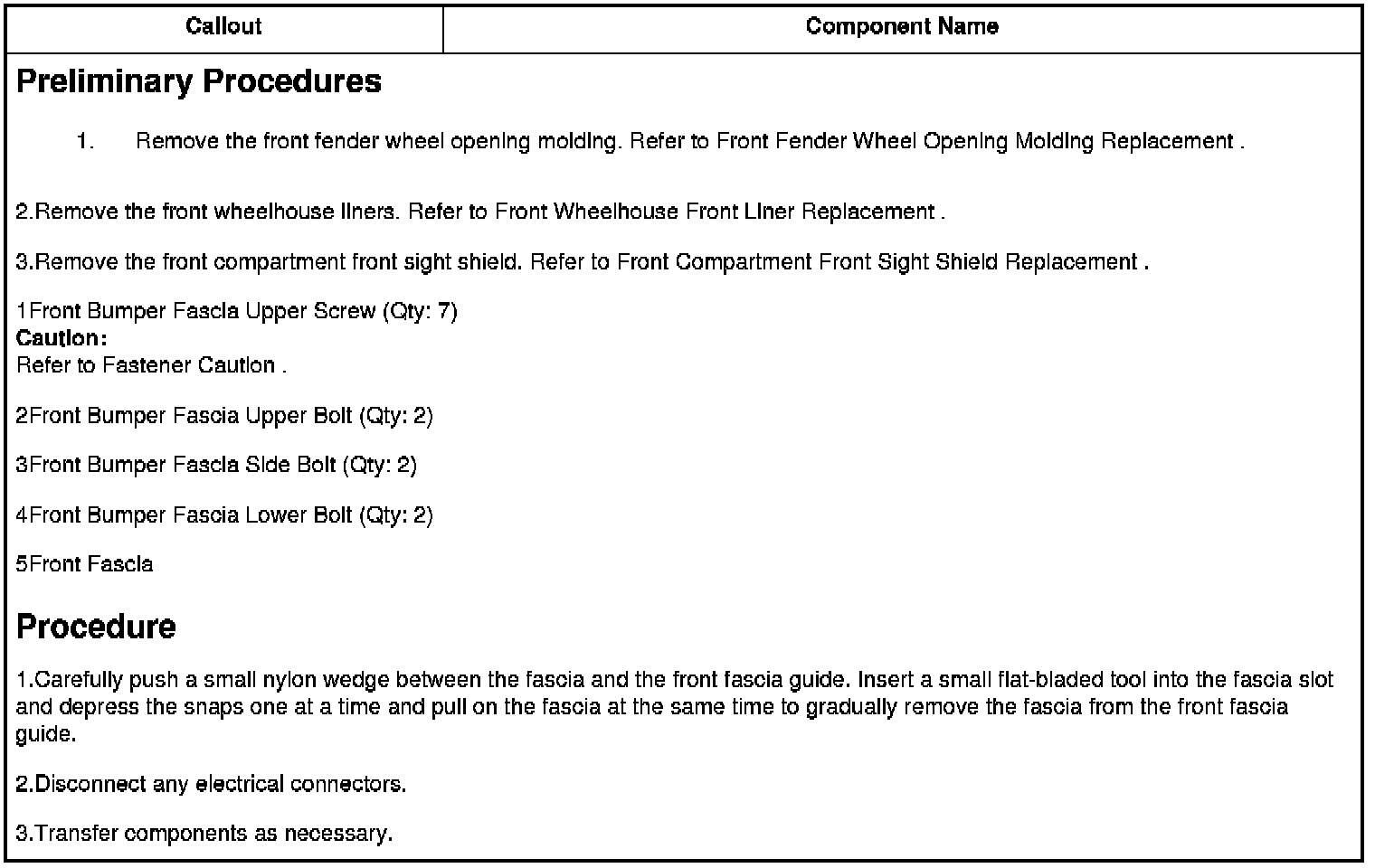

2.Remove the front wheelhouse liners. Refer to Front Wheelhouse Front Liner Replacement .

3.Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement .

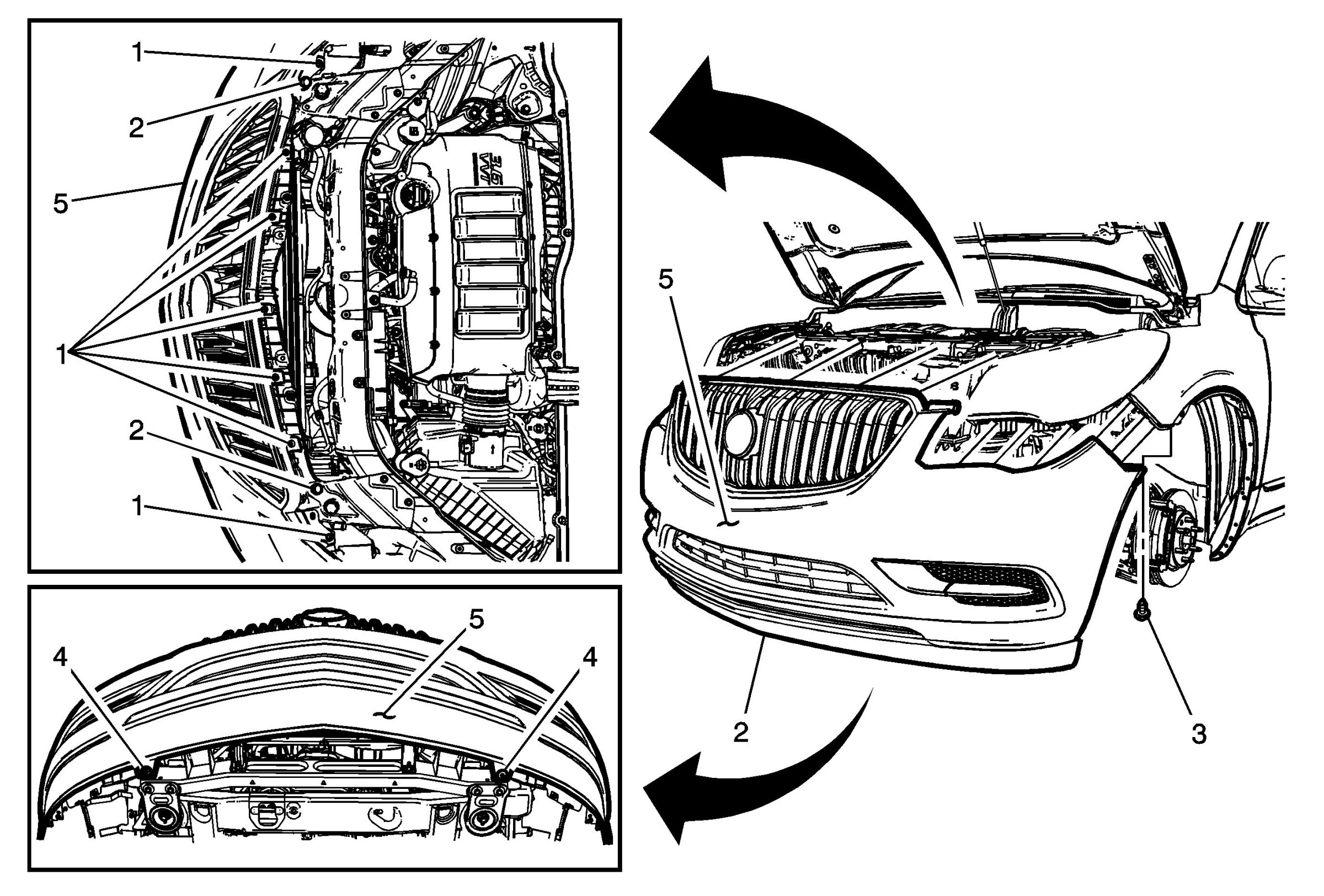

1Front Bumper Fascia Upper Screw (Qty: 7)
Caution:Refer to Fastener Caution .

2Front Bumper Fascia Upper Bolt (Qty: 2)

3Front Bumper Fascia Side Bolt (Qty: 2)

4Front Bumper Fascia Lower Bolt (Qty: 2)

5Front Fascia

Procedure

1.Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide.

2.Disconnect any electrical connectors.

3.Transfer components as necessary.
