P057C




DTC P057B-P057D

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptors

DTC P057B
- Brake Pedal Position Sensor Performance

DTC P057C
- Brake Pedal Position Sensor Circuit Low Voltage

DTC P057D
- Brake Pedal Position Sensor Circuit High Voltage

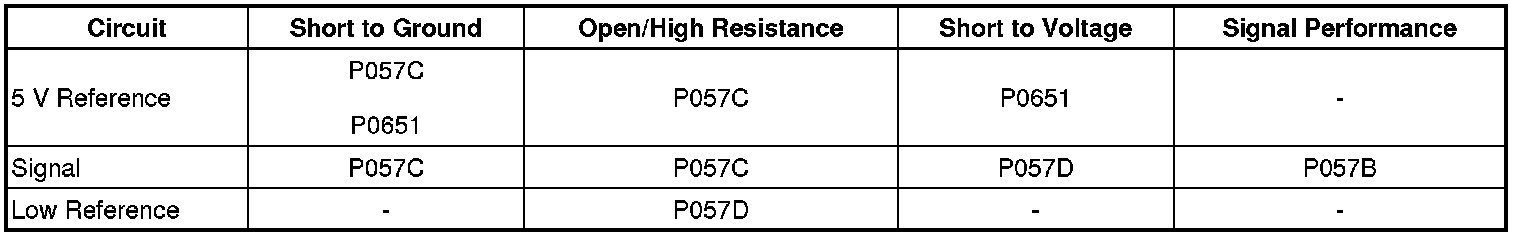

Diagnostic Fault Information

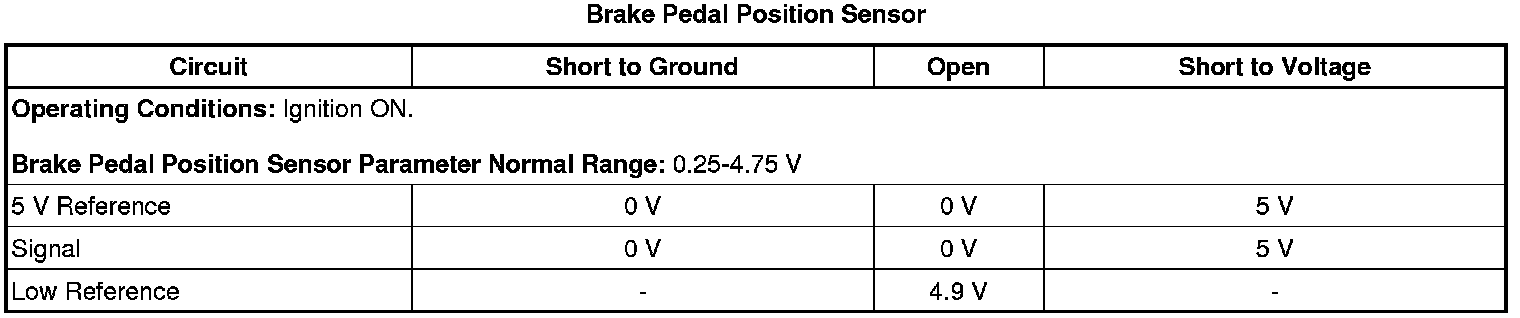

Typical Scan Tool Data






Circuit/System Description

The brake pedal position (BPP) sensor is part of the engine brake pedal override feature. The engine control module (ECM) continuously monitors the vehicle speed and the position of the brake pedal. These two main inputs, along with other ECM inputs are used to determine if the vehicle is decelerating at the proper speed and rate with the brake pedal applied. When the engine brake pedal override system is active, the ECM reduces engine torque to assist in reducing vehicle speed.

The BPP sensor is a three wire sensor, and is part of a dual brake position sensor. The ECM supplies a 5 V reference circuit, low reference circuit, and signal circuit to the BPP sensor. The BPP sensor sends a voltage signal to the ECM on the signal circuit. The voltage on the signal circuit will vary from a voltage greater than 0.25 V when the brake pedal is released to a voltage less than 4.75 V when the brake pedal is fully applied.

Conditions for Running the DTC

P057B

* DTC P057C or P057D is not set.

* Ignition voltage is greater than 10 V.

* Vehicle speed is 8 km/h (5 mph) or greater.

* Accelerator pedal position is less than 5 percent.

* Shift lever has been in Park position once during ignition cycle.

P057C or P057D

Ignition voltage is greater than 10 V.

Conditions for Setting the DTC

P057B

ECM detects that the BPP sensor signal is stuck in range.

P057C

BPP sensor voltage is less than 0.25 V for 1 s.

P057D

BPP sensor voltage is greater than 4.75 V for 1 s.

Action Taken When the DTC Sets

P057B, P057C, and P057D are type A DTCs

Conditions for Clearing the DTC

P057B, P057C, and P057D are type A DTCs

Reference Information

Schematic Reference

* Automatic Transmission Controls Schematics Electrical Diagrams

* Exterior Lights Schematics Exterior Lights Schematics

Connector End View Reference

* Component Connector End Views A/C Compressor Clutch

* Inline Harness Connector End Views X100

Description and Operation

Transmission General Description Transmission General Description

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

DTC Type Reference

Powertrain Diagnostic Trouble Code (DTC) Type Definitions Powertrain Diagnostic Trouble Code (DTC) Type Definitions

Scan Tool Reference

Control Module References Control Module References for scan tool information

Circuit/System Verification

1. Ignition ON.

2. Verify DTC P0641, P0651, P0697, or P06A3 is not set.

• If any of the DTCs are set

Refer to DTC P0641, P0651, P0697, or P06A3 (ECM) Powertrain Management (ECM).

• If none of the DTCs are set

3. Ignition ON, engine OFF, transmission in Park, service brake pedal released.

4. Verify the scan tool ECM Brake Pedal Position Sensor parameter in the Automatic Transmission Data list displays greater than 0.25 V.

• If 0.25 V or less

Refer to Circuit/System Testing.

• If greater than 0.25 V

5. Verify the scan tool Brake Pedal Position Sensor parameter changes as the brake pedal is applied and displays less than 4.75 V when the brake pedal is fully applied.

• If the voltage does not change or 4.75 V or greater
Refer to Circuit/System
Testing.

• If the voltage changes and less than 4.75 V

6. Verify the scan tool Brake Pedal Position Sensor Learned Home Position parameter is within 0.1 V of the Brake Pedal Position Sensor parameter when the brake pedal is fully released.

• If difference is greater than 0.1 V
Perform the Brake Pedal Position Sensor Learn Programming and Relearning.

• If difference is 0.1 V or less

7. Verify the scan tool Brake Pedal Position Sensor parameter transitions smoothly without any spikes or dropouts when slowly applying and releasing the brake pedal.

• If parameter does not transition smoothly or has spikes or dropouts
Refer to Circuit/System
Testing.

• If parameter transitions smoothly and there are no spikes or dropouts

8. Operate the vehicle within the Conditions for Running the DTC. You may also operate the vehicle within the conditions that you observed from the Freeze Frame/Failure Records data.

9. Verify the DTC does not set.

• If the DTC sets
Refer to Circuit/System Testing.

• If the DTC does not set

10. All OK.

Circuit/System Testing

Note: You must perform the Circuit/System Verification first.

1. Ignition OFF and all vehicle systems OFF, disconnect the harness connector from the B22 Brake Pedal Position Sensor. It may take up to 2 min for all vehicle systems to power down.

Note: All terminal references are for the vehicle harness brake pedal position sensor connector.

2. Test for less than 10 ohms between the low reference circuit terminal 5 and ground.

• If 10 ohms or greater

1. Disconnect the harness connector at the K20 Engine Control Module.

2. Test for less than 2 ohms in the low reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K20 Engine Control Module.

• If less than 10 ohms

3. Ignition ON.

4. Test for 4.8-5.2 V between the 5 V reference circuit terminal 6 and ground.

• If less than 4.8 V

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module.

2. Test for infinite resistance between the 5 V reference circuit and ground

• If less than infinite resistance, repair the short to ground on the circuit

• If infinite resistance

3. Test for less than 2 ohms in the 5 V reference circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K20 Engine Control Module.

• If greater than 5.2 V

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.

2. Test for less than 1 V between the 5 V reference circuit and ground.

• If 1 V or greater, repair the short to voltage on the circuit.

• If less than 1 V, replace the K20 Engine Control Module.

• If between 4.8-5.2V

5. Verify the scan tool Brake Pedal Position Sensor parameter is less than 0.25 V.

• If 0.25 V or greater

1. Ignition OFF, disconnect the harness connector at the K20 Engine Control Module, ignition ON.

2. Test for less than 0.25 V between the signal circuit terminal 4 and ground.

• If 0.25 V or greater, repair the short to voltage on the circuit.

• If less than 0.25 V, replace the K20 Engine Control Module

• If less than 0.25 V

6. Install a 3 A fused jumper wire between the signal circuit terminal 4 and the 5 V reference circuit terminal 6.

7. Verify the scan tool Brake Pedal Position Sensor parameter is 4.8-5.2 V.

• If not between 4.8-5.2 V

1. Ignition OFF, remove the fused jumper wire, and disconnect the harness connector at the K20 Engine Control Module.

2. Test for infinite resistance between the signal circuit terminal 4 and ground.

• If less than infinite resistance, repair the short to ground on the circuit.

• If infinite resistance

3. Test for less than 2 ohms in the signal circuit end to end.

• If 2 ohms or greater, repair the open/high resistance in the circuit.

• If less than 2 ohms, replace the K20 Engine Control Module.

• If between 4.8-5.2 V

8. Replace the B22 Brake Pedal Position Sensor.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the diagnostic procedure.

* Brake Pedal Position Sensor Replacement Service and Repair

* Perform the Brake Pedal Position Sensor Learn Programming and Relearning following the replacement of the ECM or BPP sensor, or any repair that effects the BPP sensor alignment.

* Control Module References Control Module References for engine control module replacement, setup, and programming
