P0461

DTC P0461

Diagnostic Instructions

* Perform the Diagnostic System Check - Vehicle Diagnostic System Check - Vehicle prior to using this diagnostic procedure.

* Review Strategy Based Diagnosis Strategy Based Diagnosis for an overview of the diagnostic approach.

* Diagnostic Procedure Instructions Diagnostic Procedure Instructions provides an overview of each diagnostic category.

DTC Descriptor

DTC P0461
- Fuel Level Sensor Performance

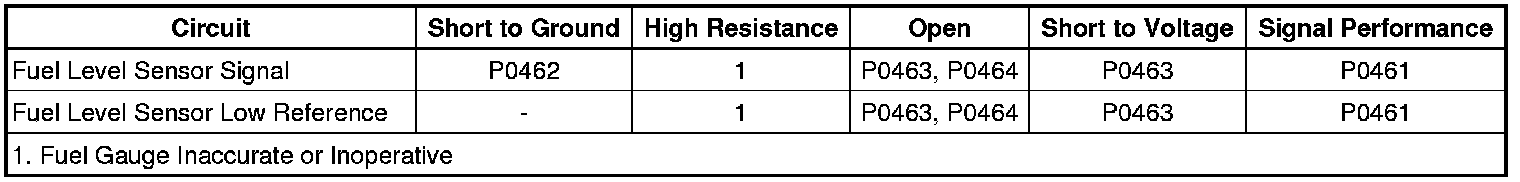

Diagnostic Fault Information






Circuit/System Description

The fuel level sender changes resistance based on the fuel level. The engine control module (ECM) monitors the signal circuit of the fuel level sender to determine fuel level. When the fuel tank is full, the sender resistance is low and the ECM senses a low signal voltage. When the fuel tank is empty, the sender resistance is high and the ECM senses a high signal voltage. The ECM uses the signal circuit of the fuel level sender in order to calculate the remaining fuel level percent in the tank. The ECM sends the fuel level message via the serial data circuit to the body control module (BCM). The BCM sends the fuel level percent to the instrument panel cluster (IPC) via the serial data circuit for display on the fuel gauge.

Conditions for Running the DTC

The engine is running.

Conditions for Setting the DTC

The ECM detects a change is fuel level less than 10 liters (1.3 gallons) over a distance of 241.4 km (150 miles).

Action Taken When the DTC Sets

* The fuel gauge defaults to empty.

* The low fuel indicator illuminates.

* The ECM records the operating conditions at the time the diagnostic fails. The ECM displays the failure information in the Failure Records on the scan tool.

Conditions for Clearing the DTC

* The DTC becomes history when the conditions for setting the DTC are no longer present.

* The history DTC clears after 40 malfunction-free warm-up cycles.

Reference Information

Schematic Reference

* Instrument Cluster Schematics Instrument Cluster Schematics

* Engine Controls Schematics [1][2]Electrical Diagrams

Connector End View Reference

Component Connector End Views A/C Compressor Clutch

Description and Operation

Instrument Cluster Description and Operation Instrument Cluster

Electrical Information Reference

* Circuit Testing Circuit Testing

* Connector Repairs Connector Repairs

* Testing for Intermittent Conditions and Poor Connections Testing for Intermittent Conditions and Poor Connections

* Wiring Repairs Wiring Repairs

Scan Tool Reference

Control Module References Control Module References for scan tool information

Component Testing

1. Ignition OFF, remove the fuel level sender.

2. Sweep the fuel level sensor through its full range of motion while measuring resistance between the signal terminal D and the low reference terminal C.

3. Test for a minimum resistance value of 37-43 ohms and a maximum value of 245-255 ohms without any spikes or dropouts.

• If minimum resistance is not 37-43 ohms, maximum resistance is not 245-255 ohms, or if there are any spikes or dropouts
Replace the fuel level sensor.

• If minimum resistance is 37-43 ohms, maximum resistance is 245-255 ohms, and if there are no spikes or dropouts

4. All OK.

Repair Instructions

Perform the Diagnostic Repair Verification Verification Tests after completing the repair.

Fuel Level Sensor Replacement Service and Repair
