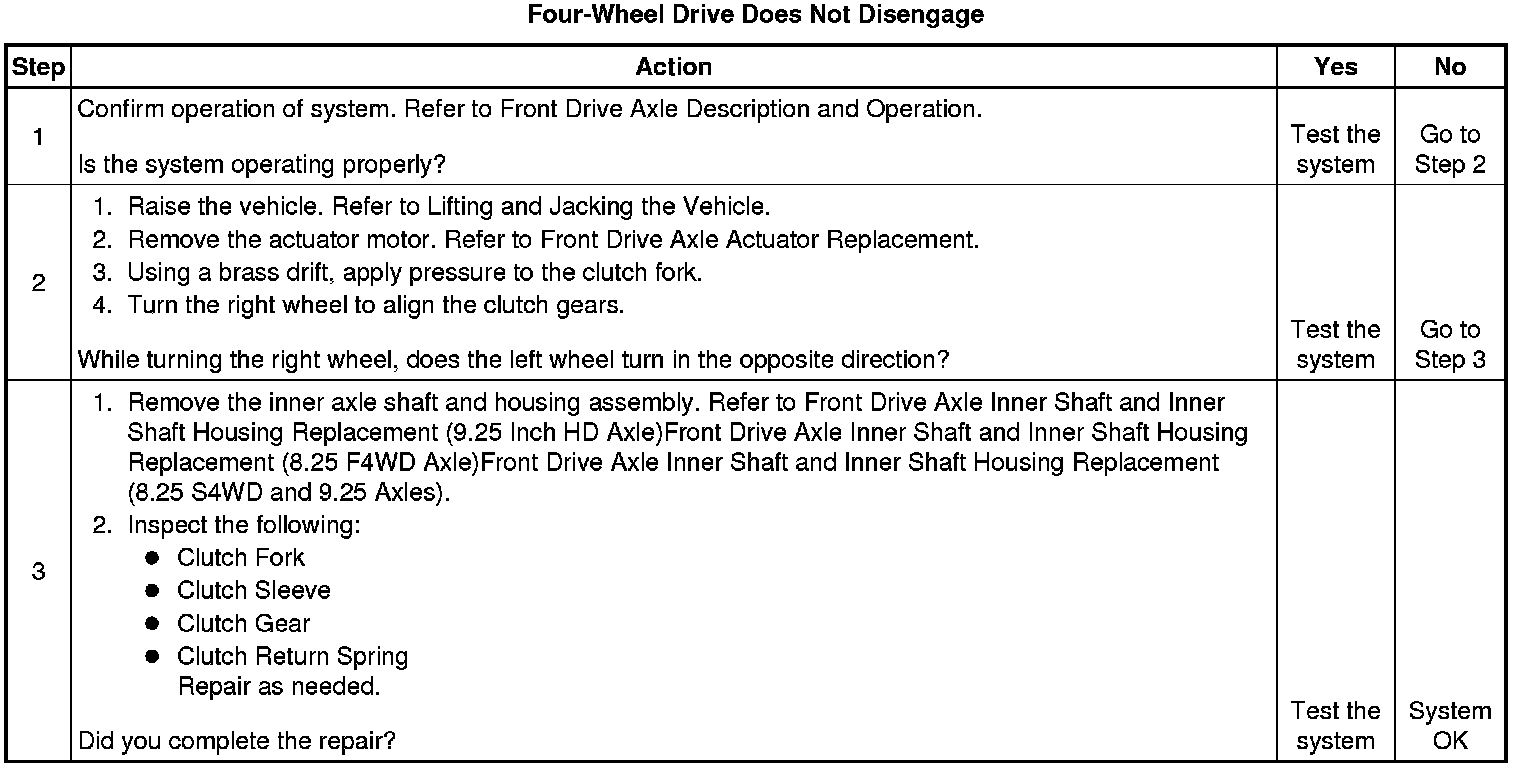

Four-Wheel Drive Does Not Disengage




Four-Wheel Drive Does Not Disengage

Important:
Before performing the following diagnostic procedure, ensure that all electrical diagnostic procedures have been performed and there are no DTCs.
