Torque Converter Clutch Solenoid
>>
Diagrams
>>
Torque Converter Clutch (TCC) Solenoid Valve (M30)
Torque Converter Clutch (TCC) Solenoid Valve (M30)

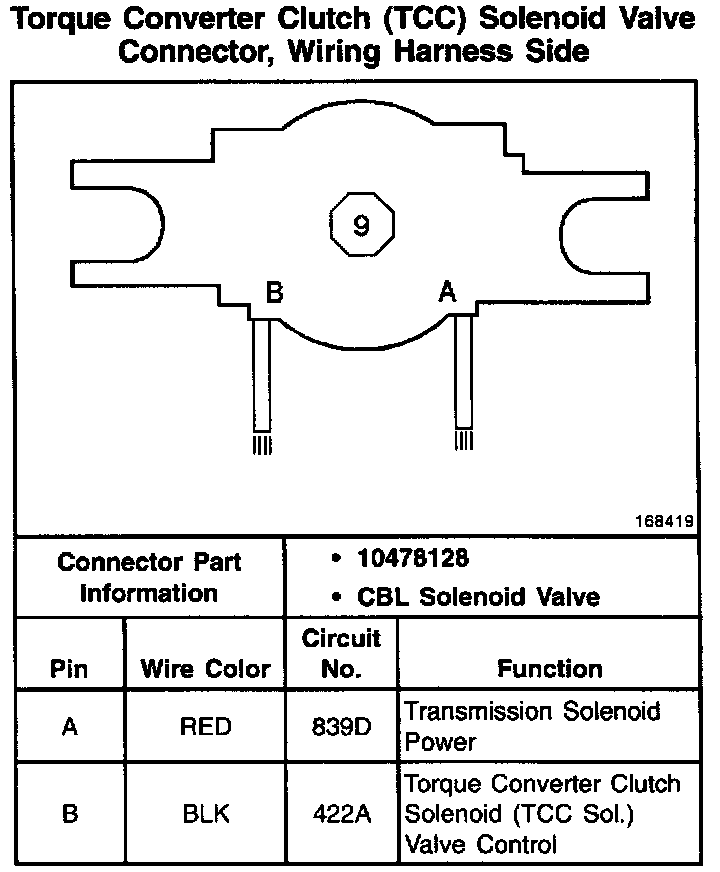

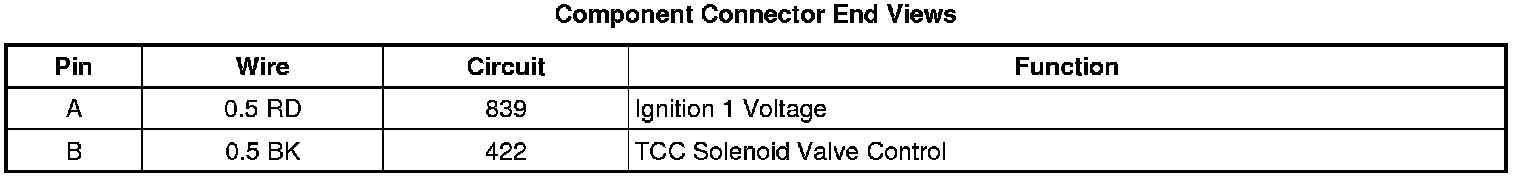

Component Connector End Views
Torque Converter Clutch (TCC) Solenoid Valve (M30)
Wiring Diagram:
